Bravo XZ One - Serial 0L914990 Thru 0M999999 - Mercathode Kit(Integrated Transom)

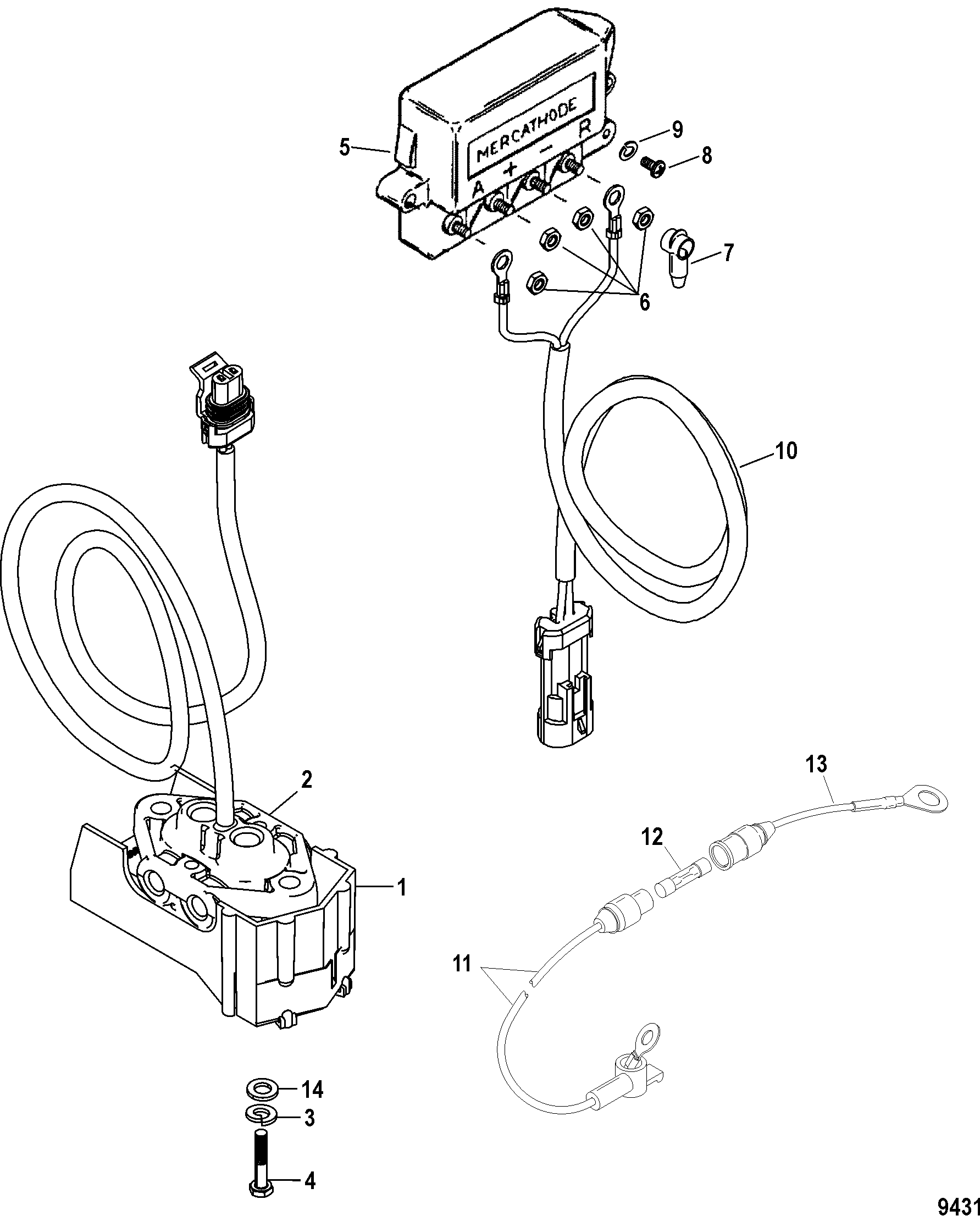

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing (Integrated And Hi Performance Transom)
- Bell Housing (Magnum Series Transom)
- Continuity Kit
- Drive Shaft Housing And Drive Gears (XR-XZ-Drive)
- Gear Housing (Bravo One XR Sportmaster)
- Gear Housing (Bravo One XR-XZ)
- Gimbal Housing
- Gimbal Housing (Integrated Transom)
- Gimbal Housing Cover
- Gimbal Ring (Integrated Transom)
- Gimbal Ring And Steering Lever
- Mercathode Kit
- Mercathode Kit(Integrated Transom)
- Oil Reservoir Components
- Power Steering
- Power Trim Cylinder Repair Kits
- Pump-Motor (Bottom Mount Reservoir) (Design I - 14336A8)
- Pump-Motor (Top Mount Reservoir) (Design I - 14336A20)
- Pump-Motor (Top Mount Reservoir) (Design II - 14336A25)
- Pump-Motor (Top Mount Reservoir) (Design III - 14336A31)
- Special Tools-Drive Shaft Housing
- Special Tools-Gear Housing(Bravo One)
- Special Tools-Transom
- Steering Cylinder (Integrated Transom)
- Sterndrive Unit Chart (Gasoline) BravoI (XR And XZ)
- Sterndrive Unit Chart (Integrated) Bravo I (XR And XZ)
- Transom Assembly Chart
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
- Trim Pump Assembly (Complete)
- Universal Joint And Shifter Components(XR-XZ-Drive)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 98869A17 | ELECTRODE ASSEMBLY | 1 | 98869A18 | |||||
| 2 | 98825A13 | COVER KIT | 1 | ||||||
| 3 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 2 | ||||||
| 4 | 10-45862 | SCREW, (#10-32 x .875) | 1 | ||||||
| 5 | 42600A09 | CONTROLLER ASSEMBLY | 1 | 42600A3 | |||||
| 6 | 11-68219 | NUT, (#10-32) Stainless Steel | 4 | ||||||
| 7 | 85-65208 | BOOT, Insulator - Black, Insulator | 2 | ||||||
| 8 | 10-62568 | SCREW, (#10-16 x .375) | 1 | ||||||
| 9 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 1 | ||||||
| 10 | 84-865181A01 | HARNESS ASSEMBLY, Mercathode | 1 | No longer made, limited availability | |||||
| 11 | 84-95084A9 | CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip | 1 | ||||||
| 12 | 88-79091 | FUSE, 20 Ampere | 1 | ||||||
| 13 | 84-95084A10 | CABLE ASSEMBLY, (5.00 Inches) Red | 1 | ||||||
| 14 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 2 |
