NXT1 Transom - Serial 0M954505 and Up - Gear Housing Assembly (Driveshaft)

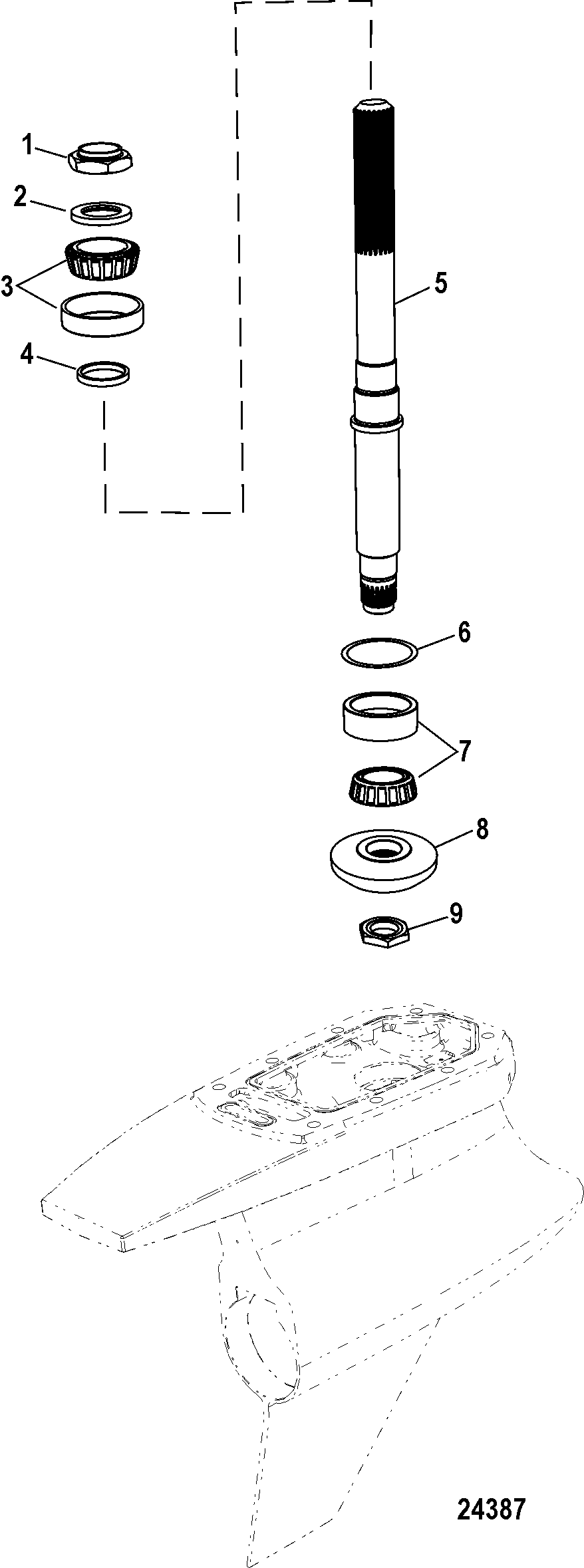

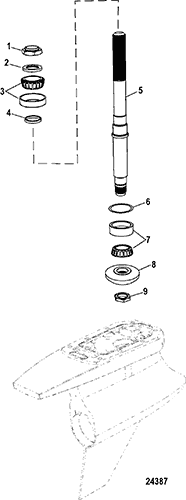

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing Assembly
- Connector Blocks And Hydraulic Hoses
- Drive Spacer Kit
- Driveline Kit (NXT1)
- Driveline-NXT
- Gear Housing Assembly
- Gear Housing Assembly (Driveshaft)
- Gear Housing Assembly (Propshaft)
- Gimbal Ring Components
- Mercathode
- Outer Transom Assembly
- Steering Cylinder Components
- Steering Indicator Kit
- Support Housing(Driveline)
- Tool List (NXT1 Drive - Lower)
- Tool List (NXT1 Drive - Transom)
- Tool List (NXT1 Drive - Upper)
- Trim And Steering Cylinders
- Trim Cylinder Components
- Trim Pump Assembly
- U Joint Assembly
- Upper Housing Assembly
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes | |
| 1 | 11-846393 | NUT, (1.560-16 LH) | 1 | 4 | ||||||
| 2 | 23-8M0000185 | SPACER, Special | 1 | 4 | ||||||
| 3 | 31-30894A1 | BEARING SET, Cup And Cone | 1 | 4 | ||||||
| 4 | 23-846505500 | SPACER, (.2500) | AR | 4 | ||||||
| 4 | 23-846505505 | SPACER, (.2505) | AR | 4 | ||||||
| 4 | 23-846505510 | SPACER, (.2510) | AR | 4 | ||||||
| 4 | 23-846505515 | SPACER, (.2515) | AR | 4 | ||||||
| 4 | 23-846505520 | SPACER, (.2520) | AR | 4 | ||||||
| 4 | 23-846505525 | SPACER, (.2525) | AR | 4 | ||||||
| 4 | 23-846505530 | SPACER, (.2530) | AR | 4 | ||||||
| 4 | 23-846505535 | SPACER, (.2535) | AR | 4 | ||||||
| 4 | 23-846505540 | SPACER, (.2540) | AR | 4 | ||||||
| 4 | 23-846505545 | SPACER, (.2545) | AR | 4 | ||||||
| 4 | 23-846505550 | SPACER, (.2550) | AR | 4 | ||||||
| 4 | 23-846505555 | SPACER, (.2555) | AR | 4 | ||||||
| 4 | 23-846505560 | SPACER, (.2560) | AR | 4 | ||||||
| 4 | 23-846505565 | SPACER, (.2565) | AR | 4 | ||||||
| 4 | 23-846505570 | SPACER, (.2570) | AR | 4 | ||||||
| 4 | 23-846505575 | SPACER, (.2575) | AR | 4 | ||||||
| 4 | 23-846505580 | SPACER, (.2580) | AR | 4 | ||||||
| 4 | 23-846505585 | SPACER, (.2585) | AR | 4 | ||||||
| 4 | 23-846505590 | SPACER, (.2590) | AR | 4 | ||||||
| 4 | 23-846505595 | SPACER, (.2595) | AR | 4 | ||||||
| 4 | 23-846505600 | SPACER, (.2600) | AR | 4 | ||||||
| 4 | 23-846505605 | SPACER, (.2605) | AR | 4 | ||||||
| 4 | 23-846505610 | SPACER, (.2610) | AR | 4 | ||||||
| 4 | 23-846505615 | SPACER, (.2615) | AR | 4 | ||||||
| 4 | 23-846505620 | SPACER, (.2620) | AR | 4 | ||||||
| 4 | 23-846505625 | SPACER, (.2625) | AR | 4 | ||||||
| 4 | 23-846505630 | SPACER, (.2630) | AR | 4 | ||||||
| 4 | 23-846505635 | SPACER, (.2635) | AR | 4 | ||||||
| 4 | 23-846505640 | SPACER, (.2640) | AR | 4 | ||||||
| 4 | 23-846505645 | SPACER, (.2645) | AR | 4 | ||||||
| 4 | 23-846505650 | SPACER, (.2650) | AR | 4 | ||||||
| 4 | 23-846505655 | SPACER, (.2655) | AR | 4 | ||||||
| 4 | 23-846505660 | SPACER, (.2660) | AR | 4 | ||||||
| 4 | 23-846505665 | SPACER, (.2665) | AR | 4 | ||||||
| 4 | 23-846505670 | SPACER, (.2670) | AR | 4 | ||||||
| 4 | 23-846505675 | SPACER, (.2675) | AR | 4 | ||||||
| 4 | 23-846505680 | SPACER, (.2680) | AR | 4 | ||||||
| 4 | 23-846505685 | SPACER, (.2685) | AR | 4 | ||||||
| 4 | 23-846505690 | SPACER, (.2690) | AR | 4 | ||||||
| 5 | 45-842980 | DRIVESHAFT | 1 | 4 | ||||||
| 6 | 15-846351A1 | SHIM SET | 1 | 4 | ||||||
| 7 | 31-846480T1 | BEARING SET, Cup And Cone | 1 | 4 | ||||||
| 8 | NSS | NOT SOLD SEPARATE, Pinion Gear | 1 | This Part is not sold separately NOTE: Order Gear Set | 43-844165A01 4 | |||||
| 9 | 11-846396 | NUT, (1.25-16) | 1 | 4 | ||||||
| - | 1600-842992T04 | GEAR HOUSING ASSEMBLY, Complete - Standard Skeg | 1 | This Part is No Longer Available NOTE: Propshaft Centerline To Bottom Of Skeg 10.00 Inches NOTE: Water Pickup Assembly Required. Order Individually Per Application NOTE: Do Not Inter Mix Skeg Models On Dual Engine Applications. |
||||||
| - | 1600-842992T05 | GEAR HOUSING ASSEMBLY, Complete - X Long Skeg | 1 | NOTE: Propshaft Centerline To Bottom Of Skeg 11.00 Inches NOTE: Water Pickup Assembly Required. Order Individually Per Application - NOTE: Do Not Inter Mix Skeg Models On Dual Engine Applications. |
||||||
| - | 1600-8M8023416 | GEAR HOUSING ASSEMBLY, Complete - Cambered Skeg | 1 | NOTE: Water Pickup Assembly Required. Order Individually Per Application NOTE: Do Not Inter Mix Skeg Models On Dual Engine Applications. |
