500 EFI - Serial 0L306500 Thru 0L307027 - Shift Bracket Components (Bravo - Design II)

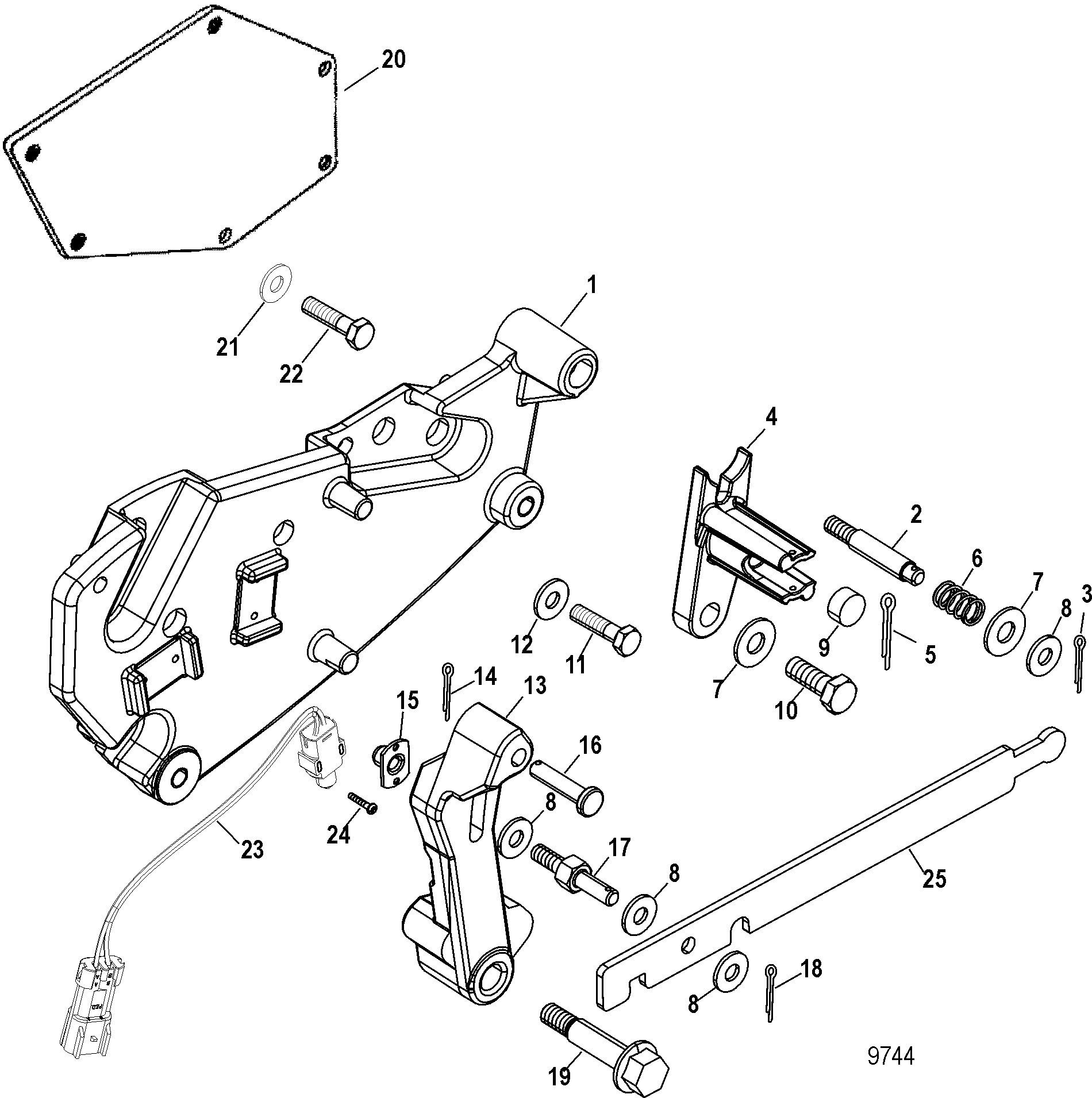

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Circulating Water Pump And Front Cover
- Crankshaft - Piston And Coupler Components
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft And Tailstock(Driveline)
- Driveshaft Extension Components(Bravo)
- Electrical Components
- Exhaust Header (Design I) 90 Deg, 1 Inch Water Outlet
- Exhaust Header (Design II) Straight - 1.125 Inch Water Outlet
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Gasket-Seal Set - Engine Overhaul(27-842129A 1)
- Harness Assembly (EFI Wiring)
- Intake Manifold - Plenum And Components
- Monitor Assembly(Drive Lube)
- Mount Plates - Engine
- Oil Cooler And Oil Filter(Engine)
- Oil Cooler(Transmission)
- Oil Pan And Oil Pump
- Power-Assisted Steering Components(Design I And Design II)
- Power-Assisted Steering Components(Design III)
- Pump-Motor Assembly (865380A13)
- Pump-Motor Assembly (Design I - 14336A20)
- Pump-Motor Assembly (Design I - 14336A8)
- Pump-Motor Assembly (Design II - 14336A25)
- Pump-Motor Assembly (Design III - 14336A31)
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components (Bravo - Design I)
- Shift Bracket Components (Bravo - Design II)
- Starter And Alternator Mounting
- Starter Assembly
- Thermostat Housing
- Transmission And Components (Driveline)
- Transmission And Components (Six Drive - Bravo)
- Trim Pump Assembly (14336 Series)
- Trim Pump Assembly (865380 Series)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 807962A15 | BRACKET ASSEMBLY | 1 | Design II | |||||
| 2 | 16-865154A02 | STUD KIT, (.250-20/.250-28 x 2.120) | 1 | ||||||
| 3 | 18-210711 | COTTER PIN | 1 | ||||||
| 4 | 865434A02 | RETAINER KIT, Shift Cable | 1 | ||||||
| 5 | 18-328571 | COTTER PIN | 1 | ||||||
| 6 | 24-98880 | SPRING | 1 | ||||||
| 7 | 12-56720 | WASHER, (.330 x .750 x .060) Stainless Steel | 2 | ||||||
| 8 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 4 | ||||||
| 9 | 23-98828 | SPACER | 1 | ||||||
| 10 | 10-53167 | SCREW, (.312-18 x .880) | 1 | ||||||
| 11 | 10-73286 | SCREW, (.250-20 x .500) Stainless Steel | 3 | ||||||
| 12 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 3 | ||||||
| 13 | 863911A12 | LEVER ASSEMBLY | 1 | ||||||
| 14 | 18-210711 | COTTER PIN | 1 | ||||||
| 15 | 11-63341 | TEE NUT | 1 | ||||||
| 16 | 17-68402 | PIN, (.250 x 1.13), Clevis | 1 | ||||||
| 17 | 16-865393A02 | STUD KIT, (.250-28 x 1.90) | 1 | ||||||
| 18 | 18-210711 | COTTER PIN | 1 | ||||||
| 19 | 10-13743 | SCREW, (.312-18 x 1.843), Shoulder | 1 | ||||||
| 20 | 848887 | PLATE, Shift Bracket Mount | 1 | ||||||
| 21 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 3 | ||||||
| 22 | 10-28635 | SCREW, (.250-20 x .620) Stainless Steel | 3 | ||||||
| 23 | 87-808009T11 | SWITCH ASSEMBLY | 1 | 87-808009A11 | |||||
| 24 | 10-865147 | SCREW, (#6-32 x .750) Stainless Steel | 2 | ||||||
| 25 | 91-12427 | TOOL, Shift Adjust | 1 |
