500 EFI - Serial 0M900064 Thru 0M901284 - Intake Manifold - Plenum And Components

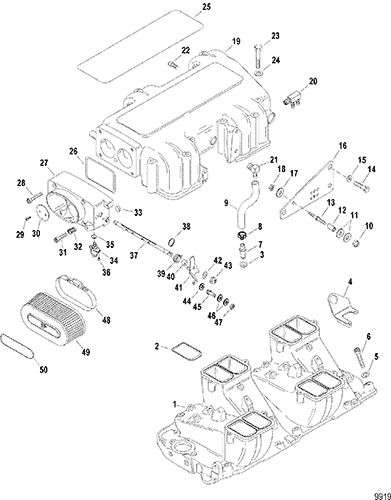

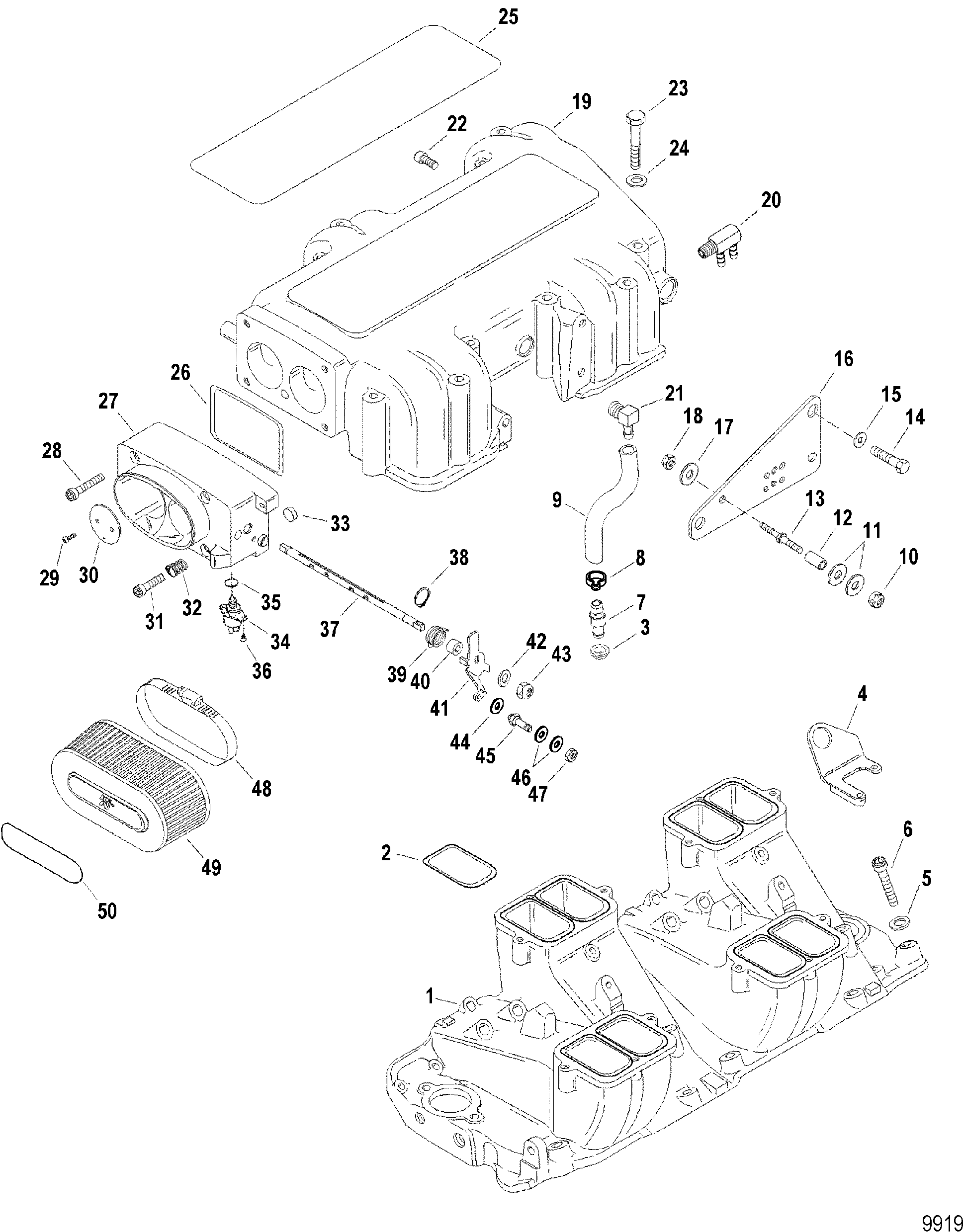

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Circulating Water Pump And Front Cover
- Crankshaft - Piston And Coupler Components
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft And Tailstock (Driveline)
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Header (Design I) 90 Deg, 1 Inch Water Outlet
- Exhaust Header (Design II) Straight - 1.125 Inch Water Outlet
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Gasket-Seal Set - Engine Overhaul (27-842129A 1)
- Harness Assembly (EFI Wiring)
- Intake Manifold - Plenum And Components
- Monitor Assembly (Drive Lube)
- Mount Plates - Engine
- Oil Cooler (Transmission)
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Power-Assisted Steering Components (Design I And Design II)
- Power-Assisted Steering Components (Design III)
- Pump-Motor Assembly (865380A13)
- Pump-Motor Assembly (Design I - 14336A20)
- Pump-Motor Assembly (Design I - 14336A8)
- Pump-Motor Assembly (Design II - 14336A25)
- Pump-Motor Assembly (Design III - 14336A31)
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components (Bravo - Design I)
- Shift Bracket Components (Bravo - Design II)
- Starter And Alternator Mounting
- Starter Assembly
- Thermostat Housing
- Transmission And Components (Driveline)
- Transmission And Components (Six Drive - Bravo)
- Trim Pump Assembly (14336 Series)
- Trim Pump Assembly (865380 Series)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 849900T3 | MANIFOLD ASSEMBLY, Intake - Blue | 1 | ||||||
| 2 | 25-805732 | O-RING, (2.612 x .103) | 8 | 2 | |||||
| 3 | 25-811553 | GROMMET, Intake Manifold | 1 | 2 | |||||
| 4 | 54-8499981 | LIFTING EYE, Black | 2 | ||||||
| 5 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 16 | 5 | |||||
| 6 | 10-822168 | SCREW, (.375-16 x 1.750) Stainless Steel | 8 | 5 | |||||
| 6 | 10-842787 | SCREW, (.375-16 x 2.00) | 2 | 10-47432 | 5 | ||||
| 6 | 10-847919 | SCREW, (.375-16 x 2.250) | 2 | 5 | |||||
| 6 | 10-849994 | SCREW, (.375-16 x 5.250) | 4 | 5 | |||||
| 7 | 848578 | VALVE ASSEMBLY, Crankcase Vent | 1 | ||||||
| 8 | 54-848764 | CLAMP, (21 mm) | 1 | ||||||
| 9 | 32-844172019 | HOSE, (7.00 Inches) | 1 | ||||||
| 10 | 11-826709109 | 525-11-826709109 | NUT, (.250-28) Stainless Steel | 1 | |||||
| 11 | 12-69056 | WASHER, (.255 x .625 x .0312) | 2 | 12-21631 | |||||
| 12 | 23-31866 | SPACER, (.256 x .313 x .625) | 1 | ||||||
| 13 | 16-96112 | STUD, (.250-28 x 2.00), Throttle Cable Anchor | 1 | ||||||
| 14 | 10-90285 | SCREW, (.312-18 x .625) | 3 | ||||||
| 15 | 12-814806 | 700-21662 | WASHER, (.344 x .688 x .065) Stainless Steel | 3 | |||||
| 16 | 849888T | BRACKET, Throttle Anchor | 1 | ||||||
| 17 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 1 | ||||||
| 18 | 11-35888 | 676-9-72001 | 700-21180 | NUT, (.250-28) Stainless Steel | 1 | ||||
| 19 | 849902A6 | PLENUM ASSEMBLY, Blue | 1 | 849902T5 | |||||
| 20 | 22-841435 | FITTING, 90 Degree - Double | 1 | ||||||
| 21 | 22-687271 | 676-9-38024 | FITTING, (.250-18) 90 Degree - Brass, To PVC Valve | 1 | |||||
| 22 | 10-F1077 | SCREW, (#10-24 x .250) | 1 | This Part is No Longer Available | |||||
| 23 | 10-71319 | SCREW, (.250-20 x 3.750) | 12 | ||||||
| 24 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 12 | ||||||
| 25 | 849948T | NAMEPLATE, Plenum | 1 | 38-843342T | This Part is No Longer Available | ||||
| 26 | 25-57413 | O-RING, (3.987 x .103) | 1 | 2 | |||||
| 27 | 841251T3 | THROTTLE BODY ASSEMBLY, Blue | 1 | ||||||
| 28 | 10-844997 | SCREW, (M8 x 60) | 4 | ||||||
| 29 | 10-840118 | SCREW, (#8-32 x .380), Throttle Plate | 4 | ||||||
| 30 | 849887 | PLATE, Throttle | 2 | ||||||
| 31 | 10-842127 | SCREW, (#10-32 x .750) Stainless Steel | 1 | ||||||
| 32 | 24-27160 | SPRING | 1 | ||||||
| 33 | 19-840184 | EXPANSION PLUG | 3 | This Part is No Longer Available | |||||
| 34 | 805224A1 | 676-9-33401 | MOTOR ASSEMBLY, IAC | 1 | |||||
| 35 | 25-808547 | O-RING | 1 | 2 | |||||
| 36 | 10-805400 | SCREW, (#8-32 x .500) Stainless Steel | 2 | ||||||
| 37 | 849889 | SHAFT, Throttle | 1 | ||||||
| 38 | 53-92170 | RING, Snap | 2 | ||||||
| 39 | 24-844226 | SPRING, Throttle Return | 1 | ||||||
| 40 | 23-849992 | SPACER, Throttle Body | 1 | ||||||
| 41 | 845577 | ARM, Throttle | 1 | ||||||
| 42 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 1 | ||||||
| 43 | 11-826709113 | NUT, (.375-24) Stainless Steel | 1 | ||||||
| 44 | 12-35950 | WASHER, (.273 x .437 x .031) Stainless Steel | 1 | ||||||
| 45 | 16-805526 | STUD, (.250-28 x 1.540) | 1 | ||||||
| 46 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 2 | ||||||
| 47 | 11-826709109 | 525-11-826709109 | NUT, (.250-28) Stainless Steel | 1 | |||||
| 48 | 54-1807613 | CLAMP, Worm Gear | 1 | ||||||
| 49 | 840210T1 | ARRESTOR, Flame | 1 | 840210T | |||||
| 50 | 37-843484 | DECAL, Mercury Racing | 1 | ||||||
| - | 27-842129A1 | GASKET/SEAL SET, Engine Overhaul | 1 | NOTE: See Gasket/Seal Set Parts Section For Complete Parts Listing |
