565 EFI - Serial 0M967821 and Up - Shift Actuator, Digital Throttle and Shift

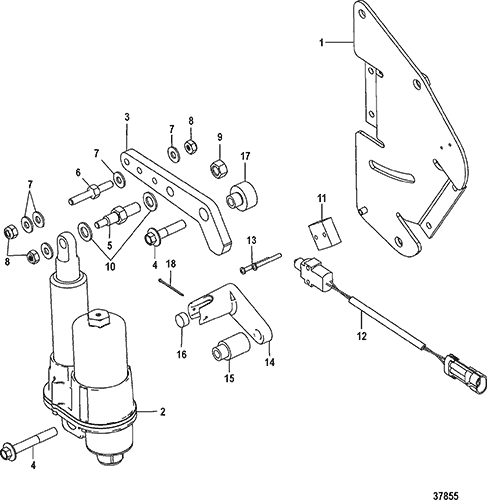

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 8M2010067



SHIFT ACTUATOR ASSEMBLY 1

1 879312T27



BRACKET, Shift 1

2 879194T46



SHIFT ACTUATOR 1

3 8631341



LEVER 1

4 10-4010735



SCREW, (M8 x 35) 1

4 10-40011155



SCREW, (M8 x 55) Stainless Steel 1

5 16-864361



STUD 1

6 16-96112



STUD, (.250-28 x 2.00) 1

7 12-35462



WASHER, (.2656 x .625 x .0625) Stainless Steel 5

8 11-8267119



NUT, (.250-28) 3

9 11-46335



NUT, (.375-24) 1

10 12-34931



WASHER, (.406 x .734 x .063) Stainless Steel 2

11 23-864386



SPACER 1

12 87-8M0052939



SWITCH 1 87-889514A01
13 10-865076



SCREW, (6-32 x 1.25) 2
14 864616



RETAINER 1
15 23-863133



SPACER 1
16 23-98828



SPACER 1
17 23-863132



SPACER 1
18 18-36002



COTTER PIN 1
- 92-86166Q1



GLUE AR
