700 SCi - Serial 0M962886 and Up - Sea Water Pump Assembly

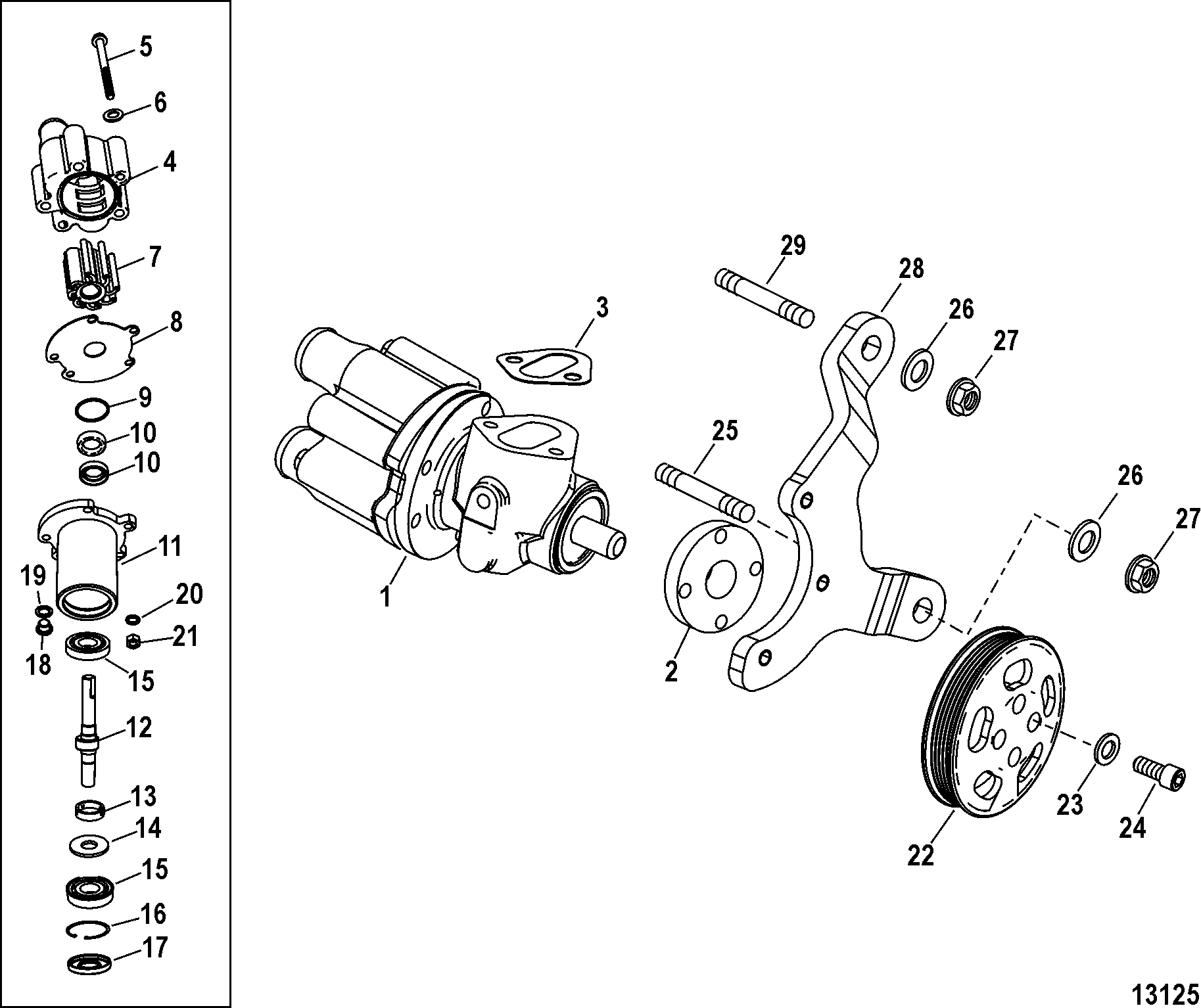

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Mounting
- Closed Cooling System Components
- Electrical Components (Coils)
- Electrical Components (Engine Harness)
- Electrical Components (Mercathode) NXT1
- Electrical Components (Mounting Box)
- Electrical Components (Starter Motor)
- Engine Comp. (Crankshaft- Piston- Conn. Rods) NXT1
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Driveline)(NXT1)
- Fuel Lines And Fuel Components
- Fuel Pump And Fuel Cooler
- Gasket-Seal Set - Engine Overhaul(27-843073A05)
- Intake Components (Air Plenum)
- Intake Components (Boost Valve)
- Intake Components (Intercooler And Manifold)
- Intake Components (Supercharger Assembly)
- Mount Plates
- Oil Cooler (Transmission)(NXT1)
- Oil Cooler And Oil Filter
- Oil Pan And Oil Pump
- Paint Color Chart
- Power-Assisted Steering Components
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Plate Components (NXT1)
- Tool List (NXT1 Transmission)
- Tool List (Special - Engine)
- Transmission (Reservoir-Pump)(NXT1)
- Transmission (Shaft And Gears)(NXT1)
- Transmission (Shift Cover)(NXT1)
- Transmission (Tailstock)(NXT1)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes | |
| 1 | 46-807151A31 | PUMP ASSEMBLY, Sea Water | 1 | |||||||
| 2 | 47530 | HUB, Pump Pulley | 1 | |||||||
| 3 | 27-34213 | 676-9-61041 | 700-31360 | GASKET | 1 | 2 | ||||
| 4 | 46-807151A14 | 676-9-48350 | BODY/IMPELLER KIT | 1 | ||||||
| 5 | 10-74822 | SCREW, (.312-18 x 3.500) | 5 | |||||||
| 6 | 12-814806p-44536-washer-mercruiser-12-814806.aspx">12-814806 | 700-21662 | WASHER, (.344 x .688 x .065) Stainless Steel | 5 | ||||||
| 7 | 47-59362T1 | 625-4011 | 676-9-45375 | 700-89740 | IMPELLER | 1 | ||||
| 8 | 94576 | 700-12501 | WEAR PLATE | 1 | ||||||
| 9 | 25-94288 | QUAD RING | 1 | |||||||
| 10 | 26-90562 | 676-9-76107 | 700-85080 | SEAL, (1.254 x .312) | 2 | |||||
| 11 | NSS | NOT SOLD SEPARATE, Sea Water Pump Housing | 1 | This Part is not sold separately | ||||||
| 12 | 818366A1 | SHAFT KIT | 1 | |||||||
| 13 | 818745A1 | RING KIT, Slip | 1 | |||||||
| 14 | 12-89664 | WASHER, (.920 x 1.750 x .060) | 1 | |||||||
| 15 | 30-72961 | 676-9-43220 | BEARING, Ball | 2 | ||||||
| 16 | 53-23720 | RING, Retaining | 1 | |||||||
| 17 | 26-806930 | SEAL | 1 | |||||||
| 18 | 10-79953A04 | PLUG ASSEMBLY, (.375-16 x .250) Drain | 1 | |||||||
| 19 | 26-830749 | 676-9-60105 | SEAL | 1 | ||||||
| 20 | 13-400247 | LOCKWASHER, (M8) | 5 | NOTE: Used Only With | 11-21908 Standard Nut | |||||
| 21 | 11-21908 | NUT, (.312-18) Cad Plated | 5 | Standard | ||||||
| 21 | 11-82670910 | NUT, (.312-18) Stainless Steel | 5 | Nylon Insert | ||||||
| 22 | 899743T | PULLEY, Sea Water Pump/Fuel Pump - Blue | 1 | 849046T01 | ||||||
| 22 | 899743T | PULLEY, Sea Water Pump/Fuel Pump - Polished/Clear Coat | 1 | |||||||
| 23 | 12-70132 | WASHER, (.323 x .563 x .063) Stainless Steel | 4 | |||||||
| 24 | 10-849377 | SCREW, (.312-24 x .750) Stainless Steel | 4 | |||||||
| 25 | 16-57982 | STUD, (.437-14/.437-20 x 1.875) | 1 | |||||||
| 26 | 12-45176 | 700-28420 | WASHER, (.453 x .812 x .105) Stainless Steel | 2 | ||||||
| 27 | 11-859135 | 676-9-78116 | NUT, (.437-20) Brass/Nickel Plated | 2 | ||||||
| 28 | 841049T | BRACKET, Sea Water Pump | 1 | |||||||
| 29 | 16-579203 | 525-16-579203 | STUD, (.437-14/.437-20 x 2.060) | 1 | ||||||
| - | 27-843073A05 | GASKET/SEAL SET, Engine Overhaul | 1 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
