850 SCi - Serial 0M952900 Thru 0M956316 - Fuel Line Components (Design II)

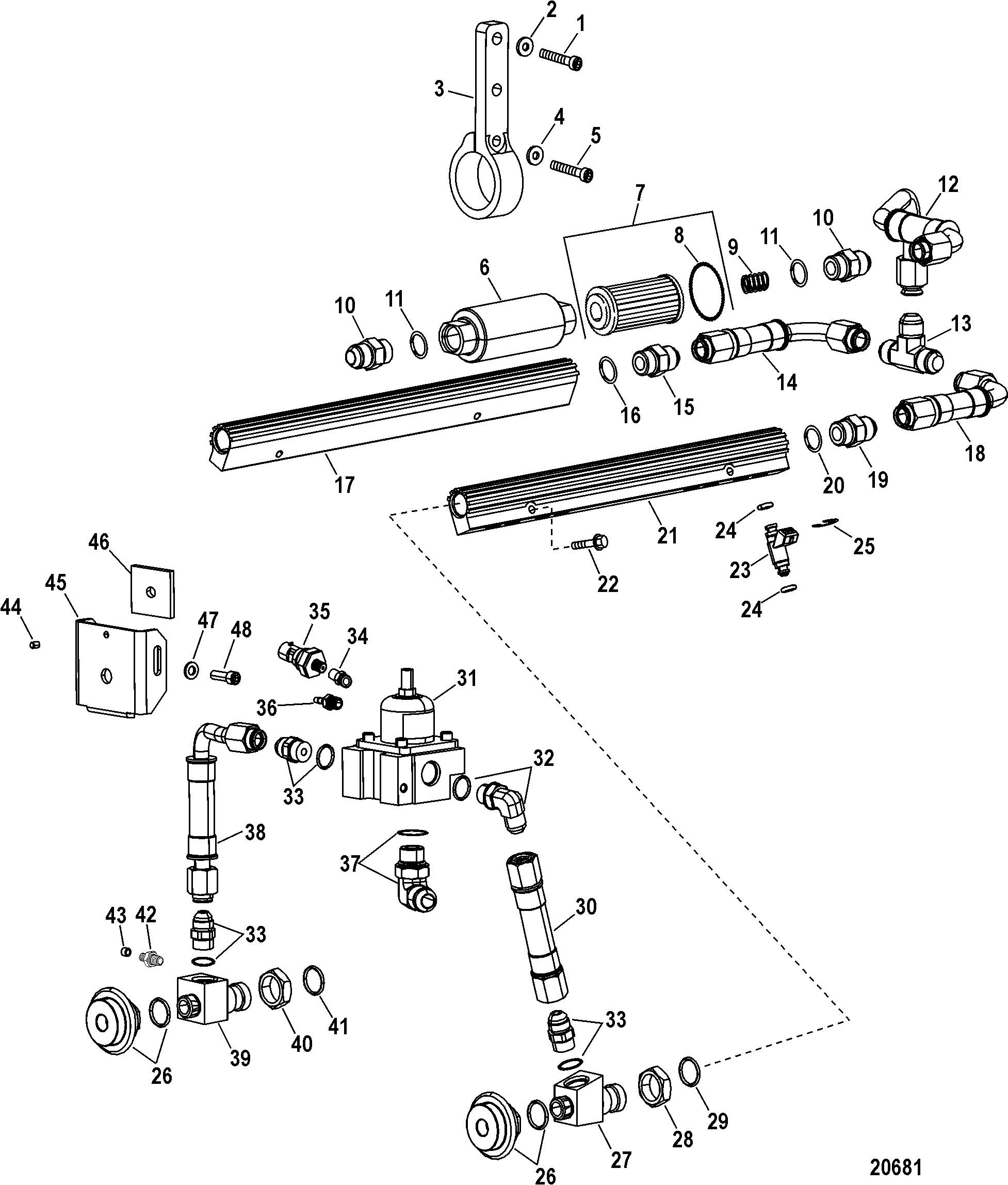

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Sea Water Pump Mounting (Design I)
- Alternator And Sea Water Pump Mounting (Design II)
- Cooling (Water Hoses And Fittings - Port)
- Cooling (Water Hoses And Fittings - Starboard)
- Cooling Components (Sea Water Pump - Design I)
- Cooling Components (Sea Water Pump - Design II)
- Cooling Components (Water Thermostat Housing)
- Electrical Components (Ignition Coils)
- Electrical Components (Mounting Box)
- Electrical Components (Starter)
- Electrical Components (Wiring)
- Engine Components (Crankshaft - Pistons - Connecting Rods)
- Engine Components (Cylinder Block)
- Engine Components (Cylinder Head)
- Engine Components (Front Cover And Camshaft)
- Engine Components (Water Inlet And Drive Belt)
- Engine Components (Water Pump)
- Filter Kit (Remote) (Water - Fuel Separating)
- Flywheel Housing And Components
- Fuel Line Components (Design I)
- Fuel Line Components (Design II)
- Fuel Pump (Remote)
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-842593A01)
- Intake Components (Air Plenum And Flame Arrestor)
- Intake Components (Boost Valve)
- Intake Components (Manifold)
- Intake Components (Supercharger)
- Intake Components (Water Intercooler)
- Mount Plates (Engine)(Design I)
- Mount Plates (Engine)(Design II)
- Oil Cooler - Transmission
- Oil Filter Adaptor And Components
- Oil Hoses And Fittings (Port Side View)
- Oil Hoses And Fittings (Starboard Side View)
- Oil Pan And Oil Pump
- Oil Tank And Breather Assembly (Remote)
- Power-Assisted Steering Components (Design I)
- Power-Assisted Steering Components (Design II)
- Power-Assisted Steering Components (Design III)
- Power-Assisted Steering Components (Design IV)
- Reservoir Bottle (Transmission Fluid)
- Rigging Kit (Dual Engines)
- Rigging Kit (Quad Engines)
- Rigging Kit (Single Engine)
- Tool List (Special - Engine)
- Transmission (BAM Driveline Models)
- Transmission (BAM Plug In Models)
- Transmission (HUBER Driveline Models)
- Transmission (HUBER Plug In Models)
- Transmission Components (Plug In Models)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 10-30206 | 700-22430 | SCREW, (.375-16 x 1.00) Stainless Steel | 2 | |||||
| 2 | 12-8M0027716 | WASHER, (.390 x .600 x .032) Stainless Steel | 2 | ||||||
| 3 | 843856001 | BRACKET, Fuel Filter | 1 | ||||||
| 4 | 12-814806 | WASHER, (.344 x .688 x .065) Stainless Steel | 1 | ||||||
| 5 | 10-79436 | SCREW, (.312-18 x 1.250) Stainless Steel | 1 | ||||||
| 6 | 35-842645A01 | FILTER ASSEMBLY, Fuel | 1 | ||||||
| 7 | 35-842645A03 | FILTER KIT, Fuel | 1 | ||||||
| 8 | 25-842636 | O-RING, (1.739 x .070) | 1 | ||||||
| 9 | 24-812708 | SPRING | 1 | ||||||
| 10 | 22-841826A01 | FITTING ASSEMBLY, Fuel - Aluminum | 2 | ||||||
| 11 | 25-849088 | O-RING, (.755 x .097) | 2 | ||||||
| 12 | 32-897345T52 | LINE ASSEMBLY, Fuel | 1 | 32-840032A01 | |||||
| 13 | 22-843827 | FITTING, Tee - Aluminum | 1 | ||||||
| 14 | 32-897345T51 | LINE ASSEMBLY, Fuel | 1 | 32-842635A01 | |||||
| 15 | 22-841826A01 | FITTING ASSEMBLY, Fuel - Aluminum | 1 | ||||||
| 16 | 25-849088 | O-RING, (.755 x .097) | 1 | ||||||
| 17 | 842587 | FUEL RAIL, Starboard - Black | 1 | ||||||
| 18 | 32-897345T51 | LINE ASSEMBLY, Fuel | 1 | 32-842635A01 | |||||
| 19 | 22-841826A01 | FITTING ASSEMBLY, Fuel - Aluminum | 1 | ||||||
| 20 | 25-849088 | O-RING, (.755 x .097) | 1 | ||||||
| 21 | 842586 | FUEL RAIL, Port - Black | 1 | ||||||
| 22 | 10-F2030 | SCREW, (.250-20 x 1.250) Stainless Steel | 4 | ||||||
| 23 | 842915T01 | INJECTOR ASSEMBLY, Fuel | 16 | 842915A01 | |||||
| 24 | 25-851889 | O-RING | 32 | 2 | |||||
| 25 | 53-87843 | E RING | 16 | ||||||
| 26 | 841062T01 | DAMPER ASSEMBLY, Fuel Pressure - Black | 2 | ||||||
| 27 | 879345T67 | ADAPTER ASSEMBLY, Fuel Damper, Port | 1 | 842629A03 | |||||
| 28 | 11-8M0010629 | NUT, (.875-14) Blue | 1 | 11-843843 | Design I | ||||
| 28 | 11-8M0010629 | NUT, (.875-14) Black | 1 | Design II | |||||
| 29 | 25-849088 | O-RING, (.755 x .097) | 1 | ||||||
| 30 | 32-897345T54 | LINE ASSEMBLY, Fuel | 1 | 32-842630A01 | |||||
| - | 8M0044299 | REGULATOR KIT, Fuel Pressure | 1 | 841382A02 | |||||
| 31 | 8M0044298 | REGULATOR ASSEMBLY, Fuel Pressure | 1 | 841382A01 | |||||
| - | 8M0044301 | DIAPHRAGM, Fuel Pressure Regulator Repair | 1 | 8M0039129 | |||||
| 32 | 22-842631 | FITTING ASSEMBLY, 90 Degree | 1 | ||||||
| 33 | 22-841818 | FITTING ASSEMBLY, Aluminum - With O-Ring | 3 | ||||||
| 34 | 22-843842 | FITTING, 45 Degree | 1 | ||||||
| 35 | 881879T11 | SENSOR, Pressure (0 - 100 PSI) | 1 | 881879011 | |||||
| 36 | 22-67902 | CONNECTOR | 1 | ||||||
| 37 | 22-842631 | FITTING ASSEMBLY, 90 Degree | 1 | ||||||
| 38 | 32-897345T55 | LINE ASSEMBLY, Fuel | 1 | 32-843851A01 | |||||
| 39 | 879345T68 | ADAPTER ASSEMBLY, Fuel Damper, Starboard | 1 | 842629A02 | |||||
| 40 | 11-8M0010629 | NUT, (.875-14) Blue | 1 | 11-843843 | Design I | ||||
| 40 | 11-8M0010629 | NUT, (.875-14) Black | 1 | Design II | |||||
| 41 | 25-849088 | O-RING, (.755 x .097) | 1 | ||||||
| 42 | 22-840971A1 | VALVE ASSEMBLY, Shrader | 1 | ||||||
| 43 | 22-805515 | CAP, Shrader Valve - Brass | 1 | ||||||
| 44 | 17-F8586 | PIN, Dowel | 1 | ||||||
| 45 | 841384 | BRACKET, Fuel Pressure Regulator Mount | 1 | ||||||
| 46 | 841385 | WASHER, Square | 1 | ||||||
| 47 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 2 | ||||||
| 48 | 10-92160 | SCREW, (.250-20 x .750) Stainless Steel | 2 | ||||||
| - | 27-842593A01 | GASKET/SEAL SET, Engine Overhaul | 1 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
