900 SC Dry Sump - Serial 0L306805 Thru 0M901290 - Transmission And Components (Driveline)

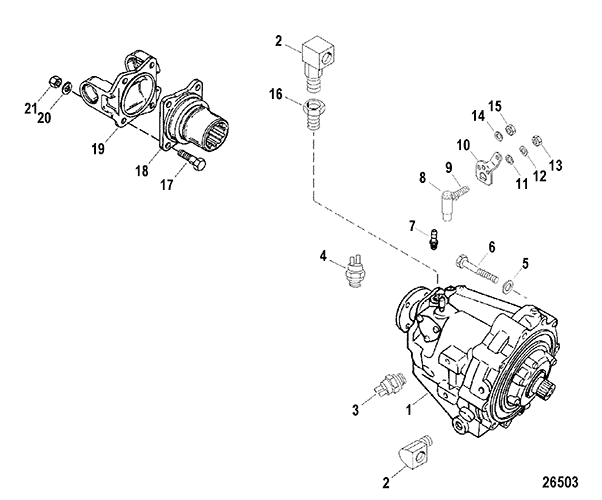

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Carburetor And Linkage
- Crankshaft - Piston - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Dry Sump Pan And Oil Pump
- Electrical Components
- Flywheel Housing
- Fuel Pump Assembly
- Intake Manifold And Front Cover
- Mount Plates
- Oil Tank And Breather Assembly
- Power-Assisted Steering Pump Assembly
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Switches
- Starter Motor And Alternator
- Starter Motor Components (50-808011A 1)
- Supercharger Assembly
- Supercharger Components
- Thermostat Housing And Oil Cooler
- Transmission And Components (Driveline)
- Transmission And Components (Plug In)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 842978A04 | TRANSMISSION ASSEMBLY, Complete | 1 | 849041A4 | This Part is No Longer Available | ||||
| 1 | 842978A03 | TRANSMISSION ASSEMBLY | 1 | 849041A3 | This Part is No Longer Available | ||||
| 2 | 22-47629 | ELBOW, 90 Degree | 2 | ||||||
| 3 | 47613 | SWITCH, Neutral | 1 | ||||||
| 4 | 87-88031 | SWITCH ASSEMBLY, Oil Temperature | 1 | ||||||
| 5 | 13-32993 | LOCKWASHER, (.437) | 6 | ||||||
| 6 | 10-60179 | SCREW, (.437-14 x 3.500) | 6 | ||||||
| 7 | 22-63186 | FITTING, (.125-27) | 1 | ||||||
| 8 | 807484 | BALL JOINT ASSEMBLY, Quick Release | 1 | ||||||
| 9 | 16-818708 | STUD, Cable Throttle (.250-28) | 1 | ||||||
| 10 | 12128 | LEVER, Transmission Shift | 1 | ||||||
| 11 | 12-20722 | WASHER, (.328 x .625 x .060) | 1 | This Part is No Longer Available | |||||
| 12 | 13-39107 | 700-21496 | LOCKWASHER, (.312) | 1 | |||||
| 13 | 11-22053 | NUT, (.312-24) | 1 | ||||||
| 14 | 12-20028 | WASHER, (.265 x .437 x .060) | 1 | ||||||
| 15 | 11-826709109 | NUT, (.250-28) Stainless Steel | 1 | ||||||
| 16 | 22-88517 | FITTING, Reducing | 1 | ||||||
| 17 | 10-840249 | SCREW, (.437-20 x 1.380) | 4 | ||||||
| 18 | 96276T4 | FLANGE/YOKE ASSEMBLY | 1 | ||||||
| 19 | 61218 | FLANGE, Driveshaft | 1 | ||||||
| 20 | 12-45176 | WASHER, (.453 x .812 x .105) Stainless Steel | 4 | ||||||
| 21 | 11-34933 | 676-9-72004 | NUT, (.437-20) Stainless Steel | 1 | 11-82671015 |
