425 (Gen 5) GM 454 V8 1992-1993 - Serial 0A398941 Thru 0D937011 - Exhaust Manifold - Elbow (420 GIL System)

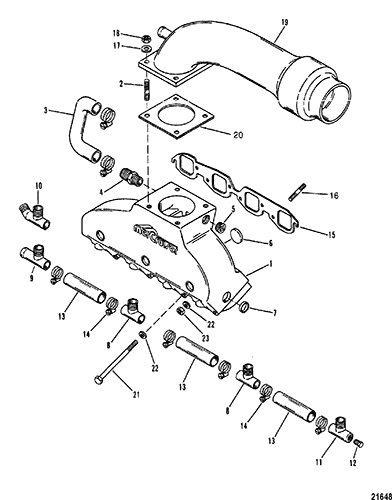

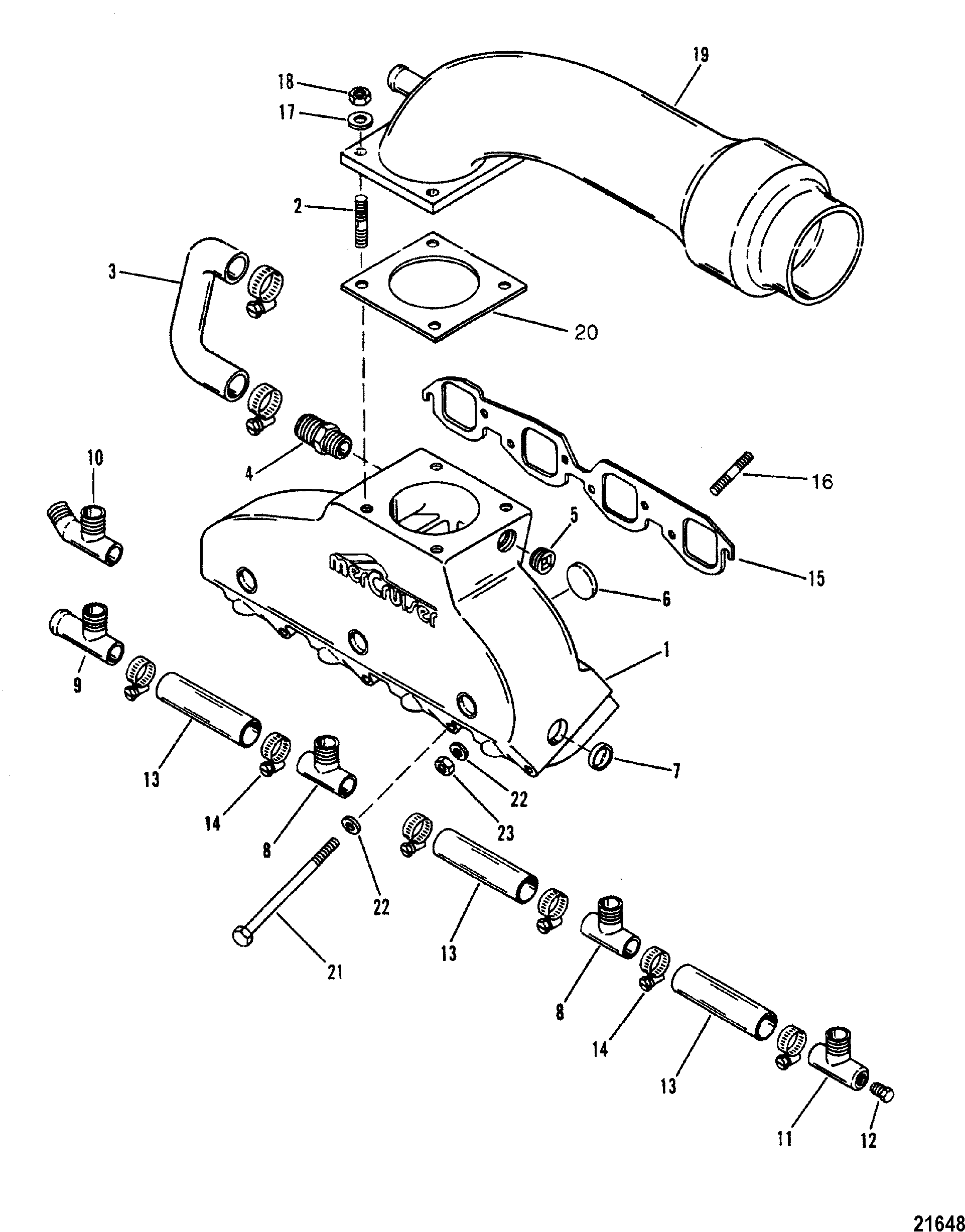

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superseded From Special Notes
1 8M0084206         MANIFOLD ASSEMBLY, Exhaust - Port 1 814901A5
1 814901T6         MANIFOLD ASSEMBLY, Exhaust - Starboard 1 814901A6
2 16-815214         STUD 8

3 32-815212         HOSE, Manifold To Exhaust Pipe 2

4 22-815213         FITTING 2   This Part is No Longer Available
5 19-815203         PLUG 2

6 19-815205         FREEZE PLUG (1.00 Inch) 10   This Part is No Longer Available
7 19-815204         FREEZE PLUG (.750 Inch) 4

8 22-815208         FITTING, Tee 4   This Part is No Longer Available
9 22-815210         FITTING, Tee 2   This Part is No Longer Available
10 22-815210         FITTING, Tee 2   This Part is No Longer Available
11 22-815209         FITTING, Tee 2   This Part is No Longer Available
12 19-815211         PLUG, Pipe Drain 2   This Part is No Longer Available
13 32-815215         HOSE (3.500 Inches) 6

14 54-815207         CLAMP 16

15 27-46820         GASKET, Exhaust Manifold 2
2
16 16-49545         STUD 4

17 12-49112         WASHER 8   This Part is No Longer Available
18 11-68411         NUT, (.375-16) 8
No longer made, limited availability
19 42-818608A1         ELBOW KIT, Exhaust 2 42-814902A2 This Part is No Longer Available Standard
19 42-818609A1         ELBOW KIT, Exhaust OPT   This Part is No Longer Available (3.00 Inches)
19 42-818610A1         ELBOW KIT, Exhaust OPT   This Part is No Longer Available (6.00 Inches)
20 27-848147         GASKET, Exhaust Elbow 2

21 10-815166         SCREW, (.375-16 x 5.625) 8   This Part is No Longer Available
21 10-37612         SCREW, (.375-16 x 1.250) 4

22 12-20553         WASHER, (.406 x .734 x .063) 12

23 11-25269         NUT, (.375-24) 4

- 27-13218A1         GASKET SET 1
