465 GM 502 1990-1992 - Serial 0C849992 Thru 0F213244 - Crankshaft, Pistons And Conn. Rods

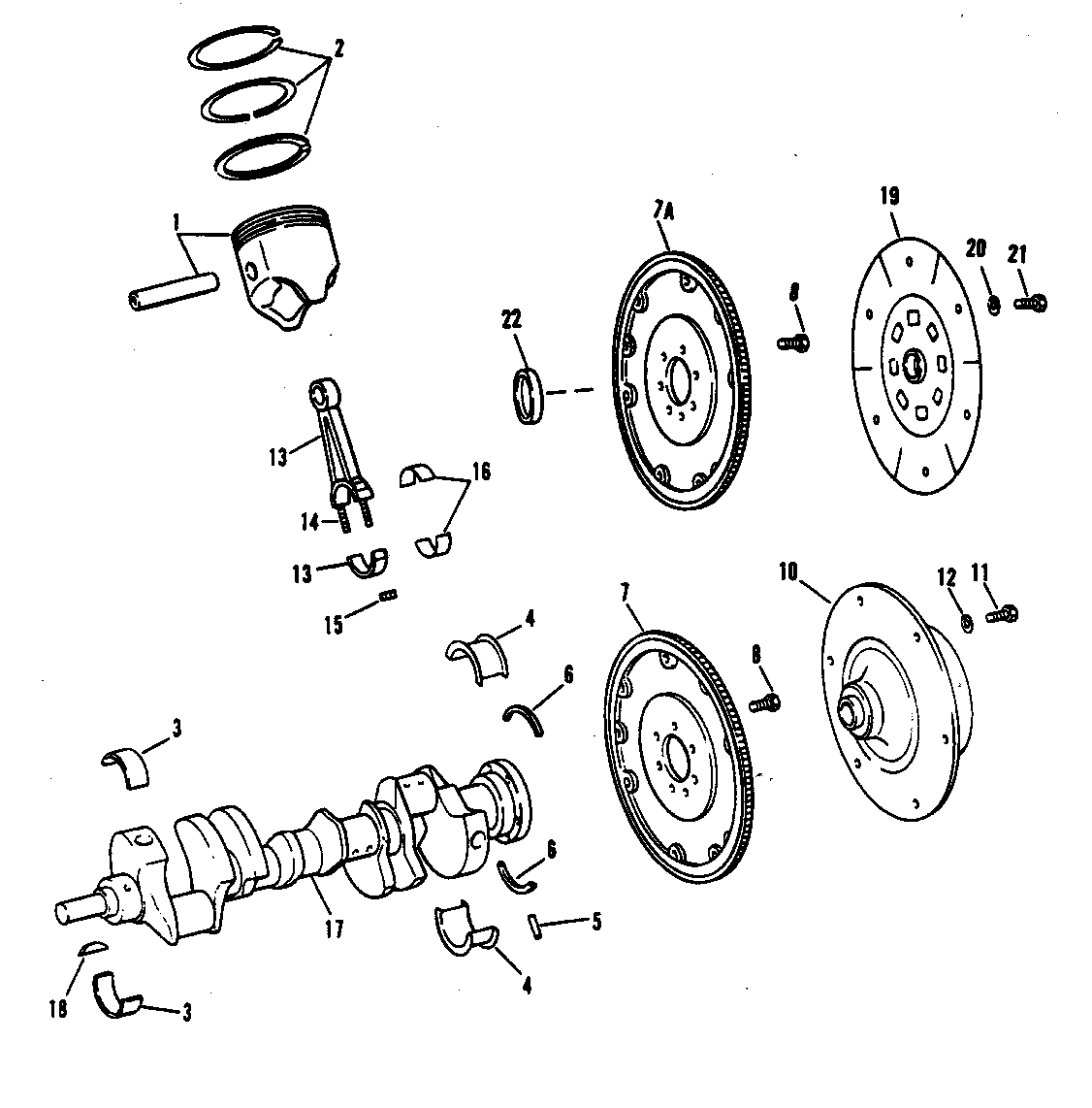

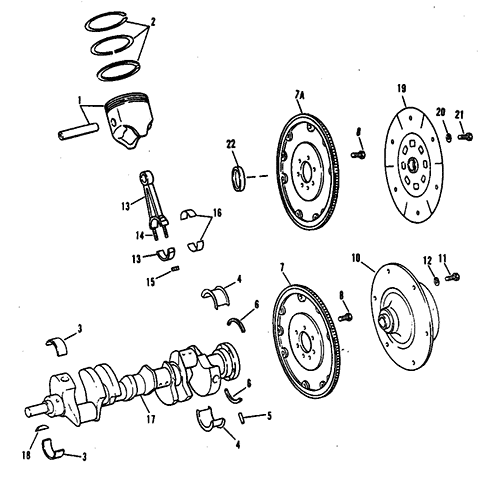

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC - 155603) (D763732,F213244)
- Alternator (Mando AR-150) (C849992 - D763731)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft And Tailstock
- Driveshaft Extension Components (Bravo)
- Electrical Components (C849992-D763731)
- Electrical Components (D763732-F213244)
- Exhaust Manifold - Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug - In Models)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Filter (C849992-D456154)
- Fuel Pump And Fuel Filter (D456155-F213244)
- Intake Manifold And Front Cover
- Miscellaneous Parts - Accessories
- Mount Plates (Single)
- Mount Plates (Staggered)
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump (C849992-D725646)
- Oil Pan And Oil Pump (D725647-F213244)
- Power Steering Components
- Sea Water Pump (C849992-D725646)
- Sea Water Pump (D725647-F213244)
- Shift Bracket
- Shift Linkage
- Starter And Alternator
- Starter Assembly
- Starter Assembly (Transmission And Driveline Models)
- Thermostat Housing
- Transmission (Driveline)
- Transmission And Tailstock
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 794-816710 | PISTON ASSEMBLY (STD) | 8 | This Part is No Longer Available SERIAL 0A000000-0C849992 | |||||
| 2 | 39-4273335 | RING SET-Piston (STD) | 1 | SERIAL 0A000000-0C850209 | |||||
| 1 | 737-827664 | PISTON ASSEMBLY (STD.) | 8 | ||||||
| 2 | 39-827660T | RING SET-Piston (STD) | 8 | 39-821091 | SERIAL 0C850210-0F213244 | ||||
| 1 | 737-827665A1 | PISTON ASSEMBLY (.030 O.S.) | 8 | 737-817412 | This Part is No Longer Available SERIAL 0C850210-0F213244 | ||||
| 2 | 737-827665A1 | RING SET-Piston (.030 O.S.) | 8 | 39-817413 | This Part is No Longer Available SERIAL 0C850210-0F213244 | ||||
| 3/4 | 23-818473001 | BEARING SET (STANDARD) | 1 | 23-818473 | SERIAL 0C850210-0F213244 | ||||
| 3/4 | 23-818474 | BEARING SET (.001 U.S.) | AR | 1 | |||||
| 3/4 | 23-818475 | BEARING SET (.002 U.S.) | AR | 1 | |||||
| 3/4 | 818476001 | BEARING SET (.010 U.S.) | AR | 23-818476 | 1 | ||||
| 3/4 | 23-818477 | BEARING SET (.020 U.S.) | AR | 1 | |||||
| 5 | 17-843378 | PIN-Dowel (1/4" Dia.) | 1 | 17-35312 | |||||
| 6 | 26-14756 | SEAL-Oil | 1 | SERIAL 0C849992-0D725646 6 | |||||
| 6 | 26-811554 | SEAL-Oil | 1 | SERIAL 0D725647-0F213244 6 | |||||
| 7 | 230-6540 | FLYWHEEL | 1 | SERIAL 0C849992-0D725646 | |||||
| 7 | 230-843374T1 | FLYWHEEL | 1 | 230-811561 | SERIAL 0D725647-0F213244 | ||||
| 7A | 230-8115631 | FLYWHEEL (GEN V Driveline or Transmission Models) | 1 | 230-811563 | |||||
| 7A | 230-5534 | FLYWHEEL (MARK IV Driveline or Transmission Models) | 1 | This Part is No Longer Available | |||||
| 8 | 10-845757 | SCREW (7/16-20 x 1") | 6 | 10-49845 | |||||
| 10 | 861523A9 | COUPLING ASSEMBLY-Engine (BRAVO Models Only) | 1 | 18311A17 | |||||
| 11 | 10-14883 | SCREW (3/8-16 x 1-1/8") | 6 | ||||||
| 12 | 12-20572 | WASHER | 6 | ||||||
| - | 22-49099 | FITTING-Grease | 2 | ||||||
| 13 | 614-8M0084554 | CONNECTING ROD ASSEMBLY | 8 | 614-9641 | |||||
| 14 | 10-19234 | SCREW-Conn Rod Cap | 16 | ||||||
| 15 | 11-37493 | NUT-Conn Rod Cap Screw | 16 | No longer made, limited availability | |||||
| 16 | 23-85726001 | BEARING SET (STANDARD) | 8 | 23-85726 | |||||
| 16 | 23-85727 | BEARING SET (.001 U.S.) | AR | 1 | |||||
| 16 | 23-85728 | BEARING SET (.002 U.S.) | AR | This Part is No Longer Available 1 | |||||
| 16 | 23-85691 | BEARING SET (.010 U.S.) | AR | 1 | |||||
| 16 | 23-85729 | BEARING SET (.020 U.S.) | AR | 1 | |||||
| 17 | 429-5880 | CRANKSHAFT | 1 | This Part is No Longer Available SERIAL 0C849992-0D725646 | |||||
| 17 | 429-843083T | CRANKSHAFT | 1 | 429-811550 | SERIAL 0D725647-0F213244 | ||||
| 18 | 28-845607 | KEY-Crankshaft | 2 | 28-811558 | |||||
| 19 | 8M0051206 | DRIVE PLATE (Transmission Models) | 1 | 816618 | |||||
| 20 | 10-35091 | SCREW (3/8-16 x 1") (Transmission Models) | 6 | ||||||
| 21 | 13-35048 | LOCKWASHER (3/8") (Transmission Models) | 6 | ||||||
| 22 | 23-49126 | BUSHING-Pilot-Crankshaft (Driveline Models Only) | 1 |
