1100 QC4V - Serial 0M965965 and Up - Oil Pan and Pump (0M966912 and Above)

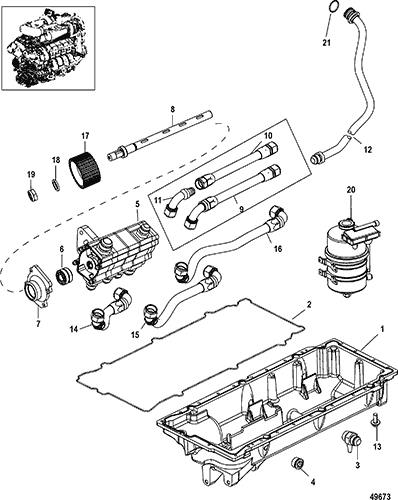

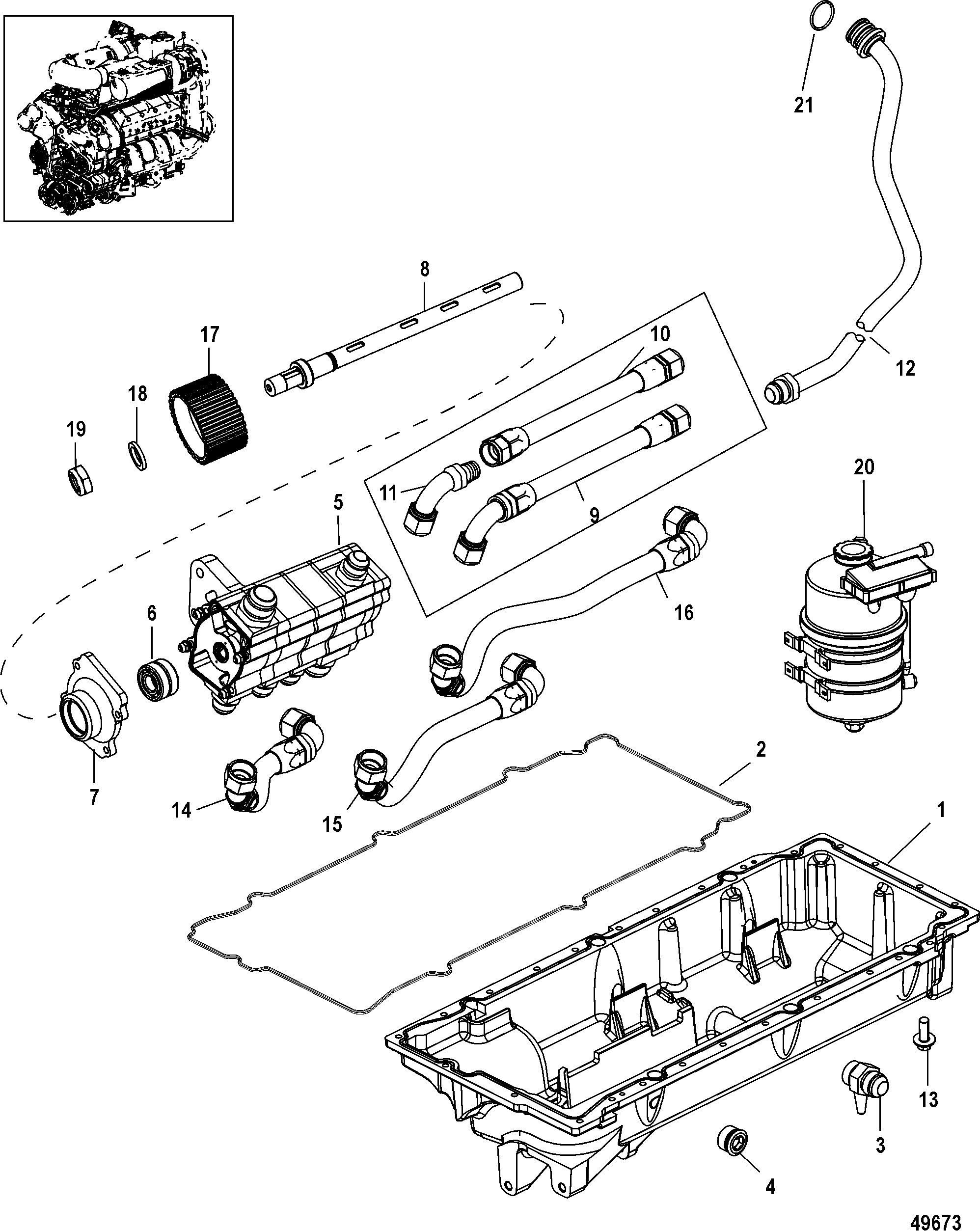

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Intake Cover
- Cooling Components
- Cover Assembly and Circulating Pump
- Cylinder Block
- Cylinder Head Assembly
- Cylinder Head, Bearing Plate Cover
- Electrical Components, Miscelleneous
- Electrical Plate Assembly
- Exhaust Manifold
- Flywheel and Mounts
- Fuel Filter Assembly
- Fuel Pump and Fuel Lines, 0M966603 and Below
- Fuel Pump and Fuel Lines, 0M966604 and Above
- Fuel Rail Assembly
- Fuel Regulator Assembly
- Intake Manifold
- Intercooler Assembly
- Oil Filter and Reservoir
- Oil Pan and Pump (0M966911 and Below)
- Oil Pan and Pump (0M966912 and Above)
- Power Steering Cooler Assembly
- Power Steering Pump, Pulleys
- Sea Water Pump Components
- Sea Water Pump, 0M966603 and Below
- Sea Water Pump, 0M966604 and Above
- Starter and Alternator
- Tensioner and Sprockets
- Transmission, Closed Coupling
- Transmission, Driveline
- Turbocharger, Turbine Assembly
- Turbocharger, Wastegate Adapter
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 8M0082012 | OIL PAN KIT | 1 | 8M0058452 | |||||
| 2 | 8M0047042 | SEAL, Oil Pan | 1 | ||||||
| 3 | 8M0050231 | FITTING ASSEMBLY, With Screen And O-Ring | 3 | ||||||
| 4 | 19-8M0049794 | PLUG, Steel | 1 | ||||||
| 5 | 8M0073721 | OIL PUMP ASSEMBLY | 1 | 8M0059632 | |||||
| 6 | NSS | NOT SOLD SEPARATE, BEARING | 2 | This Part is not sold separately | |||||
| 7 | NSS | NOT SOLD SEPARATE, COVER | 1 | This Part is not sold separately | |||||
| 8 | NSS | NOT SOLD SEPARATE, SHAFT | 1 | This Part is not sold separately | |||||
| 9 | 32-8M8027376 | HOSE, Oil | 1 | 32-8M0058011 | Design I | ||||
| 10 | 32-8M0063157 | HOSE, Oil | 1 | Design II, Component of 8M8027376 | |||||
| 11 | 32-8M0062712 | TUBE, (90 Degree), Oil | 1 | Design II, Component of 8M8027376 | |||||
| 12 | 32-8M0057956 | LINE ASSEMBLY, Oil, Pump to Filter | 1 | ||||||
| 13 | 10-4010620 | SCREW, (M6 x 20) Stainless Steel | 27 | ||||||
| 14 | 32-8M0033819 | HOSE, Oil, Forward | 1 | ||||||
| 15 | 32-8M0033820 | HOSE, Oil, Center Scavenge | 1 | ||||||
| 16 | 32-8M0033822 | HOSE, Oil, Aft Scavenge | 1 | ||||||
| 17 | 8M0060771 | PULLEY, (28 Teeth), Oil Pump | 1 | ||||||
| 18 | 12-846378 | WASHER, (.688 x 1.00 x .120) Stainless Steel | 1 | ||||||
| 19 | 11-826709121 | NUT, (.625-18) Stainless Steel | 1 | ||||||
| 20 | 8M0007324 | OIL TANK | 1 | ||||||
| - | 8M8027376 | OIL LINE KIT | 1 | (Replaces one piece oil line) |
