1200 SCi - Serial 0M956534 Thru 0M962885 - Intake Components (Boost Valve)

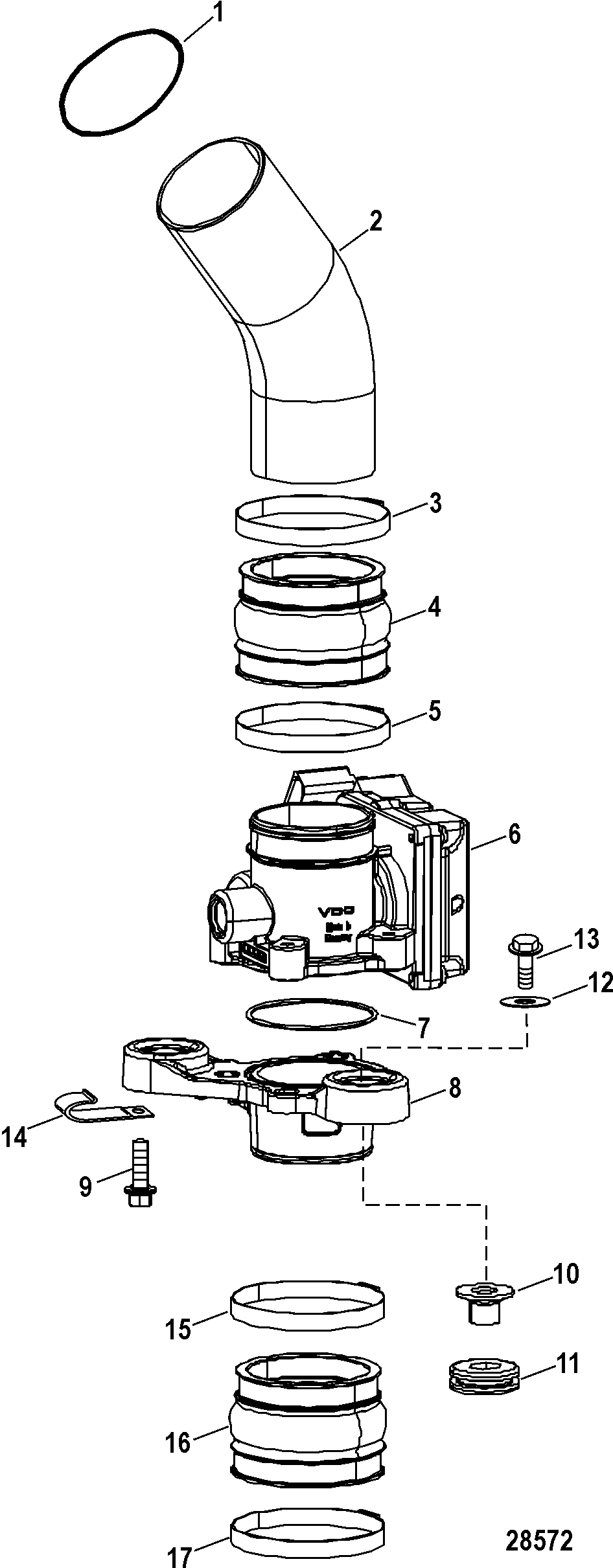

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Sea Water Pump Mounting
- Cooling (Water Hoses And Fittings - Port)
- Cooling (Water Hoses And Fittings - Starboard)
- Cooling Components (Sea Water Pump)
- Cooling Components (Water Thermostat Housing)
- Electrical Components (Ignition Coils)
- Electrical Components (Mounting Box)
- Electrical Components (Starter Motor)
- Electrical Components (Wiring)
- Engine Components (Crankshaft - Pistons - Connecting Rods)
- Engine Components (Cylinder Block)
- Engine Components (Cylinder Head)
- Engine Components (Drive Belt) (0M956534 Thru 0M958746)
- Engine Components (Drive Belt) (0M958747 And Up)
- Engine Components (Front Cover And Camshaft)
- Engine Components (Water Pump)
- Filter Kit (Remote) (Water - Fuel Separating)
- Flywheel Housing And Components
- Fuel Line Components
- Fuel Pump (Remote)
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-842593A01)
- Intake Components (Air Plenum And Flame Arrestor)
- Intake Components (Boost Valve)
- Intake Components (Manifold)
- Intake Components (Supercharger)
- Intake Components (Water Intercooler)
- Mount Plates (Engine)
- Oil Cooler - Transmission
- Oil Filter Adaptor And Components
- Oil Hoses And Fittings (Port Side View)
- Oil Hoses And Fittings (Starboard Side View)
- Oil Pan And Oil Pump
- Oil Tank And Breather Assembly (Remote)
- Paint Color Chart
- Power-Assisted Steering Components (Design I)
- Power-Assisted Steering Components (Design II)
- Power-Assisted Steering Components (Design III)
- Reservoir Bottle (Transmission Fluid)
- Rigging Kit (Dual Engines)
- Rigging Kit (Quad Engines)
- Rigging Kit (Single Engine)
- Rigging Kit (Triple Engines)
- Tool List (Special - Engine)
- Transmission (Driveline Models)
- Transmission (Plug In Models)
- Transmission Components (Plug In Models)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 25-33145 | 676-9-76547 | 700-82260 | O-RING, (1.984 x .139) | 1 | 2 | |||
| 2 | 8M0050957 | TUBE, By Pass | 1 | 843516001 | |||||
| 3 | 54-888988006 | CLAMP, (59.0 mm) | 1 | ||||||
| 4 | 32-887938 | TUBE | 1 | ||||||
| 5 | 54-888988006 | CLAMP, (59.0 mm) | 1 | ||||||
| 6 | 884408A08 | VALVE KIT, Control - Electric Boost | 1 | 884408A07 | |||||
| 7 | 25-892079 | O-RING | 1 | 2 | |||||
| 8 | 887939007 | PLATE, Boost Valve Mounting | 1 | ||||||
| 9 | 10-88552520 | SCREW, (M6 x 20) Stainless Steel | 4 | ||||||
| 10 | 23-8502341 | BUSHING | 2 | ||||||
| 11 | 25-833155 | GROMMET | 2 | ||||||
| 12 | 12-70132 | WASHER, (.323 x .563 x .063) Stainless Steel | 2 | ||||||
| 13 | 10-F430732 | SCREW, (.312-18 x 1.250) Stainless Steel | 2 | ||||||
| 14 | 54-47483 | J CLIP | 1 | ||||||
| 15 | 54-888988006 | CLAMP, (59.0 mm) | 1 | ||||||
| 16 | 32-887938 | TUBE | 1 | ||||||
| 17 | 54-888988004 | CLAMP, (62.0 mm) | 1 | ||||||
| - | 27-842593A01 | GASKET/SEAL SET, Engine Overhaul | 1 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
