8.2L Mag EC (Base or HO) - Serial 1A350340 and Up - Cooling System, Fresh Water Components

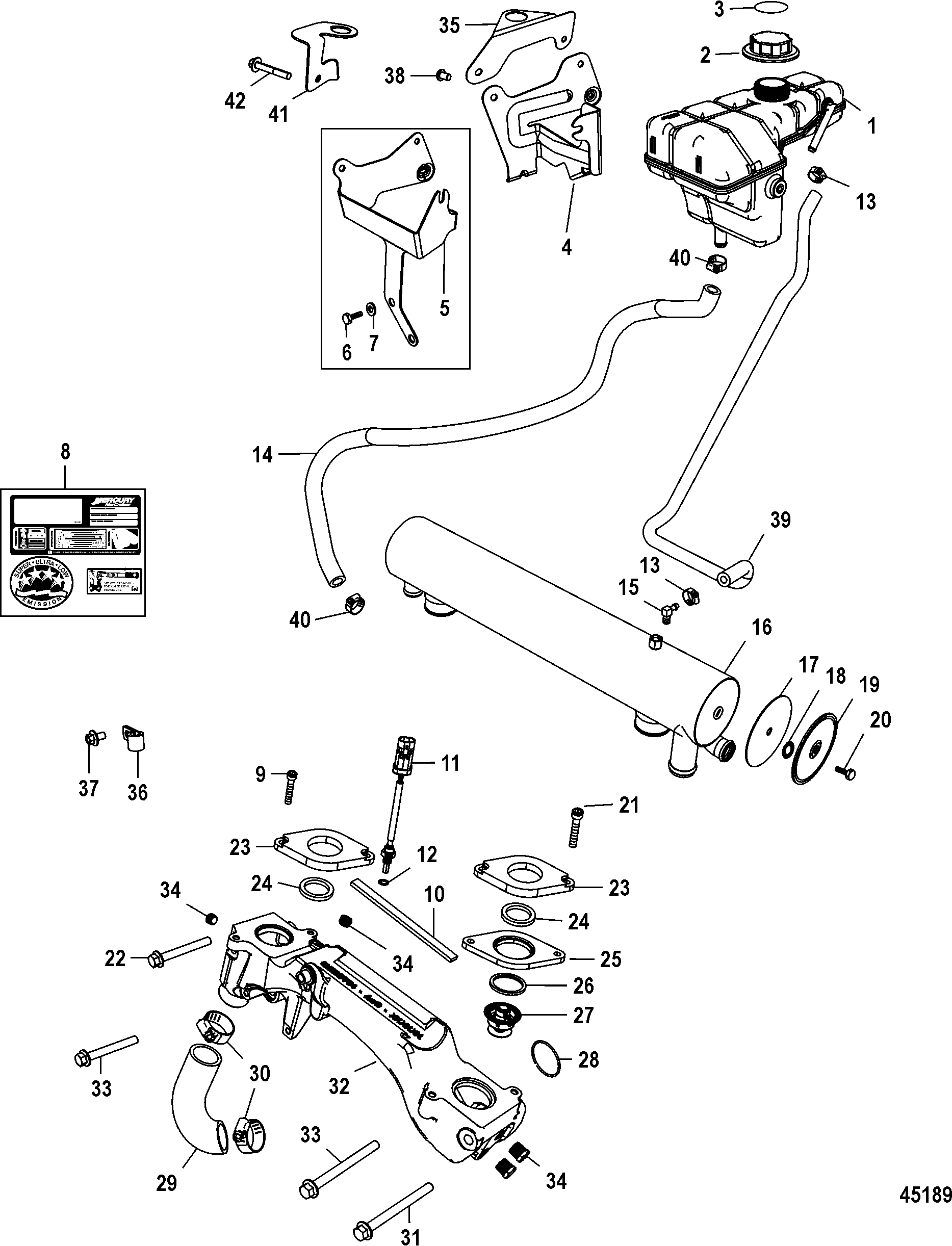

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator
- Cool Fuel System
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port
- Cooling System, Raw Water Components, Starboard
- Crankshaft, Piston, Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head
- Drive Lube Reservoir Assembly
- Electrical Components
- Engine Mounts
- Exhaust Elbow, Vent Valve
- Exhaust Manifold And Elbow
- Exhaust System Components
- Flywheel Housing
- Fuel Module Components -Bravo
- Gasket Set, Overhaul
- Intake Manifold
- Jackshaft Main Kit
- Oil Pan And Oil Pump
- Poppet Valve Assembly
- Remote Oil System
- Seawater Pump
- Shift Bracket, Digital Throttle And Shift
- Shift Bracket, Mechanical
- Starter Motor
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Throttle Lever Assembly, Mechanical Throttle-Shift
- Trim Pump And Motor Components
- Trim Pump Assembly
- Water Drain System
- Water Pump And Front Cover
- Wiring Harness And Lifting Brackets
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 8M0045229 | RESERVOIR ASSEMBLY, Coolant | 1 | |||||
| 2 | 862863 | CAP, Coolant Reservoir | 1 | |||||
| 3 | 37-8M2017891 | DECAL, Engine Coolant | 1 | |||||
| 4 | 8M0045231 | BRACKET, Reservoir | 1 | (See Note) SN# 1A351717 & Below | ||||
| 5 | 8M0050598 | BRACKET, Reservoir | 1 | SN# 1A351718 & Up | ||||
| 6 | 10-47461 | SCREW, (.437-14 x 1.00) | 2 | SN# 1A351718 & Up | ||||
| 7 | 12-27025 | WASHER | 2 | SN# 1A351718 & Up | ||||
| 8 | 37-8M0045577 | DECAL SET, 8.2L Base, Heat Exchanger | 1 | MCM | ||||
| 8 | 37-8M0045575 | DECAL SET, 8.2L High Output, Heat Exchanger | 1 | MCM | ||||
| 8 | 37-8M0045580 | DECAL SET, 8.2L Base (MIE), Heat Exchanger | 1 | |||||
| 8 | 37-8M0045580 | DECAL SET, 8.2L Base (MIE), Heat Exchanger | 1 | |||||
| 9 | 10-4010730 | SCREW, (M8 x 30) | 2 | |||||
| 10 | 843155001 | FOAM STRIP (6.500 Inches) | 2 | |||||
| 11 | 885342002 | SENSOR ASSEMBLY, Water Temperature | 1 | |||||
| 12 | 25-896699 | O-RING, (1.78 mm x .08 mm) | 1 | 25-888814 | 2 | |||
| 13 | 54-815504212 | CLAMP, Worm Gear | 2 | |||||
| 14 | 32-8M2017665 | HOSE, Reservoir to Circulating Pump | 1 | |||||
| 15 | 22-629101 | FITTING, Elbow - 90 Degree (.125-27) | 1 | |||||
| 16 | 8M0045230 | HEAT EXCHANGER | 1 | |||||
| 17 | 27-891716 | GASKET | 1 | 2 | ||||
| 18 | 8M0039163 | O-RING, (3/8 x 1/8) | 1 | 2 | ||||
| 19 | 891717 | COVER | 1 | |||||
| 20 | 10-98261 | SCREW, (.375-16 x .750) | 1 | |||||
| 21 | 10-4010730 | SCREW, (M8 x 30) | 2 | |||||
| 22 | 10-8M2017380 | SCREW, (.4375-14 x 5.5) | 1 | |||||
| 23 | 8M0075813 | PLATE, Heat Exchanger | 2 | 8M2017984 | ||||
| 24 | 25-20295 | QUAD RING (1.725 x .210) | 2 | 2 | ||||
| 25 | 8M0081454 | PLATE, Heat Exchanger | 1 | 8M2017982 | ||||
| 26 | 25-8071341 | SEAL, Thermostat | 1 | 2 | ||||
| 27 | 8M0045990 | THERMOSTAT | 1 | |||||
| 28 | 25-30529 | 700-81360 | O-RING, (1.925 x .103) | 2 | 2 | |||
| 29 | 32-8M2019704 | HOSE, Crossover to Circulating Pump | 1 | |||||
| 30 | 54-815504232 | CLAMP, Worm Gear (2.50 Diameter) | 2 | |||||
| 31 | 10-8M0043100 | SCREW, (7/16-14 x 5.0), Crossover Port | 1 | |||||
| 32 | 8M0045236 | CROSSOVER | 1 | |||||
| 33 | 10-8M0043101 | SCREW, (7/16-14 X 3.5), Lower Crossover | 2 | |||||
| 34 | 22-32803 | 700-21894 | PLUG, Pipe (.375-18) Brass | 4 | ||||
| 35 | 8M2000004 | BRACKET, Flush Mount | 1 | |||||
| 36 | 54-65653 | CLIP | 1 | |||||
| 37 | 10-4010612 | SCREW, (M6 x 12) Stainless Steel | 1 | |||||
| 38 | 10-8M2017990 | SCREW, (M8 x 1.25) | 3 | MCM/MCM Inline | ||||
| 38 | 10-8M2017990 | SCREW, (M8 x 1.25) | 2 | MIE V-Drive | ||||
| 38 | 10-81893412 | SCREW, (M8 x 12) | 1 | MIE V-Drive | ||||
| 39 | 32-8M2017664 | HOSE, Coolant Bleed | 1 | |||||
| 40 | 54-815504206 | CLAMP, Worm Gear | 2 | |||||
| 41 | 8M2020585 | BRACKET, Flush Mount | 1 | MIE V-Drive | ||||
| 42 | 10-4010720 | SCREW, (M8 x 20), Flush Mount | 1 | MIE V-Drive |
