MX 6.2L MPI MIE - Serial 0L302200 Thru 0M299999 - Exhaust Manifold and Exhaust Elbow

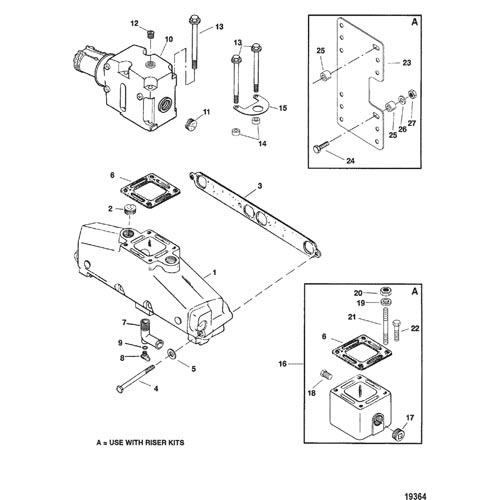

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 860246A15         MANIFOLD ASSEMBLY, Exhaust 2 860246A10
2 22-428611         PLUG, (.750-14) Pipe 8 861187
3 27-33395         GASKET 2
4 10-53728         SCREW, (.375-16 x 4.75) 8
5 12-20533         WASHER 8
6 27-863726         GASKET 2
7 22-862210A01   676-9-41206 700-13991   ELBOW KIT, Drain 2 806926A1
8 22-806608A02         PLUG KIT, (.500-13) Royal Blue 2 806608A1
9 12-23509         QUAD RING 2   No Longer Available
10 807988A03         ELBOW ASSEMBLY, Exhaust 2 807988A2
11 22-428611         PLUG, (.750-14) Pipe 2 861187
12 22-73379         PLUG, (.250-18) 2
13 10-44387         SCREW, (.376-16 x 6.750) 2
13 10-43749         SCREW, (.375-16 x 5.750) 6
13 10-43749         SCREW, (.375-16 x 5.750) 8
13 10-15007         SCREW, (.375-16 x 6.25) 2   No Longer Available
14 23-57369         SPACER 2
15 861242         BRACKET, Quick Connect 1
16 93320A13         RISER KIT, Exhaust (3 Inches) 1 93320A5
16 93322A12         RISER KIT, Exhaust (6 Inches) 1 93322A7
17 22-428611         PLUG, (.750-14) Pipe 2 861187
18 22-328022         PLUG, Pipe (.125-27) Brass 2
19 12-46132         WASHER 8
20 11-46335         NUT, (.375-24) 8
21 16-8M0022137         STUD, (.375 x 9.56) 6 11375
21 16-8M0022138         STUD, (.375 x 10.56) 2 11376
19 12-46132         WASHER 8
20 11-805979         NUT, (.375-24) 2
21 16-805978         STUD, (3/8 x 2.75) (3/8 X 2-3/4 IN.) 2
22 10-865982005         SCREW, (.375-16 x 1.00) 6 12244
23 818598T         BRACKET 1
24 10-76596         SCREW, (.250-20 x 1.250) 3
25 23-806981         SPACER 6
26 12-35462         WASHER, (.2656 x .625 x .0625) Stainless Steel 3
27 11-64015         NUT, (.250-20) 3
- 27-75611A98         GASKET SET, Engine Overhaul 1
