6.2L MPI MIE EC - Serial 1A092169 and Up - Sea Water Pump Assembly

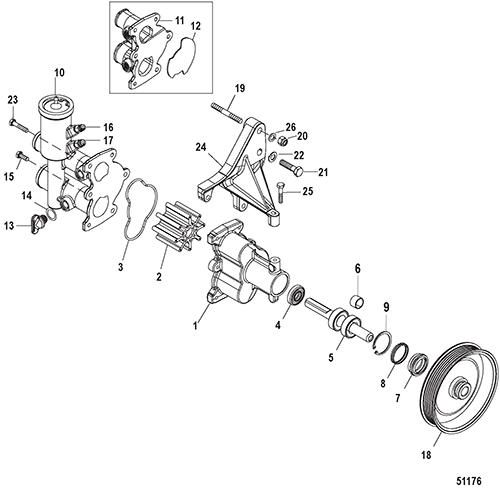

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System (INLINE)
- Closed Cooling System (V-DRIVE)
- Closed Cooling System, Heat Exchanger
- Closed Cooling System, Poppet Valve
- Closed Cooling System, Sea Water Pump Hoses
- Cool Fuel System, Bravo
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing
- Cylinder Head Assembly
- Distributor and Ignition Components
- Electrical Components, Digital Throttle and Shift
- Electrical Components, Mechanical Throttle and Shift
- Exhaust Manifold and Elbow
- Front Cover and Circulating Pump
- Fuel Module Components -Bravo
- Gasket Set Components (27- 75611A03), Cylinder Head
- Gasket Set Components, Engine Overhaul
- Intake Manifold and Fuel Rail
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter
- Rocker Cover
- Sea Water Pump Assembly
- Standard Cooling System -INLINE
- Standard Cooling System, V-DRIVE
- Starter Motor
- Thermostat and Housing, Closed Cooling
- Thermostat and Housing, Standard Cooling
- Throttle Body, Digital Throttle and Shift
- Throttle Body, Mechanical
- Transmission and Engine Mounting(BORG-WARNER 5000)
- Transmission and Engine Mounting(BORG-WARNER 71C and 72C)
- Transmission and Engine Mounting(HURTH 630)
- Transmission and Related Parts(BORG-WARNER 5000)
- Transmission and Related Parts(BORG-WARNER 71C and 72C)
- Transmission and Related Parts(Hurth 630 800)
- Transmission(WALTER V-DRIVE)
- Water Distribution Housing
- Water Drain, Air Manifold and Pump
| Ref. | OEM Part # | Hardin # | Sierra # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 46-862914T10 | 625-4131, 625-4132 | PUMP KIT, Sea Water | 1 | |||||
| - | 46-862914T11 | 625-4131, 625-4132 | PUMP KIT, Sea Water | 1 | |||||
| 1 | 46-862914A13 | HOUSING ASSEMBLY, Impeller | 1 | ||||||
| 2 | 47-8M0104229 | IMPELLER | 1 | 862232A2 | |||||
| 3 | 8M2021987 | O-RING, Formed | 1 | ||||||
| - | 8M0050018 | DRIVESHAFT ASSEMBLY KIT | 1 | ||||||
| 4 | 26-8M2001645 | SEAL, Oil | 1 | 26-862037 | |||||
| 6 | NSS | NOT SOLD SEPARATE, SPACER | 1 | ||||||
| 7 | 26-862040 | SEAL, Lip | 1 | ||||||
| 8 | 862039 | TOLERANCE RING | 1 | ||||||
| 9 | NSS | NOT SOLD SEPARATE, SNAP RING | 1 | ||||||
| 10 | 863674A05 | COVER KIT, Impeller Housing | 1 | ||||||
| 11 | 862776A01 | COVER KIT, Impeller Housing | 1 | ||||||
| 12 | 8M2014176 | PLATE, Wear | 1 | ||||||
| 13 | 22-806608A02 | 700-13992 | PLUG ASSEMBLY, (.500-13) Blue | 2 | 22-806608A1 | ||||
| 14 | 25-26802 | 700-81110 | SEAL | 2 | 8M2000926 | ||||
| 15 | 10-4000328 | SCREW, (M6 x 16) | 6 | ||||||
| 16 | 22-8M0082319 | FITTING, Gray - Straight, Male Air | 1 | 863718 | |||||
| 17 | 22-8M0082320 | FITTING, Orange - Straight, Male Air | 1 | 863719 | |||||
| 18 | 862351T | PULLEY | 1 | ||||||
| 19 | 16-863853 | STUD | 2 | ||||||
| 20 | 11-82671112 | NUT, (.375-16) | 2 | 11-99405 | |||||
| 21 | 10-32132 | SCREW, (.375-16 x 1.750) | 1 | ||||||
| 22 | 13-35048 | 700-21495 | LOCKWASHER, (.375) | 1 | |||||
| 23 | 10-4000331 | SCREW, (M6 x 30) | 2 | ||||||
| 24 | 865143T01 | BRACKET, Sea Water Pump | 1 | ||||||
| 26 | 12-38622 | WASHER, (.391 x 1.00 x .125) | 1 | 12-24672, 12-F8137 |
