7.4LX MPI Bravo (Gen 6) GM 454 V-8 1996-1997 - Serial 0F802000 Thru 0K999999 - Cylinder Head And Rocker Cover

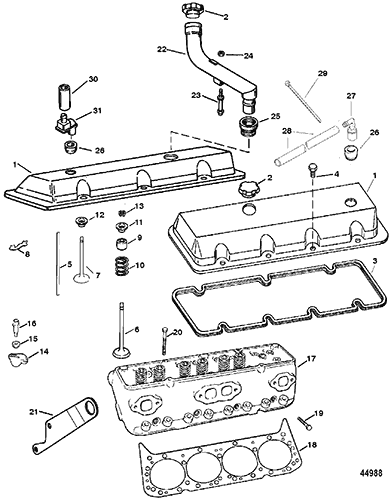

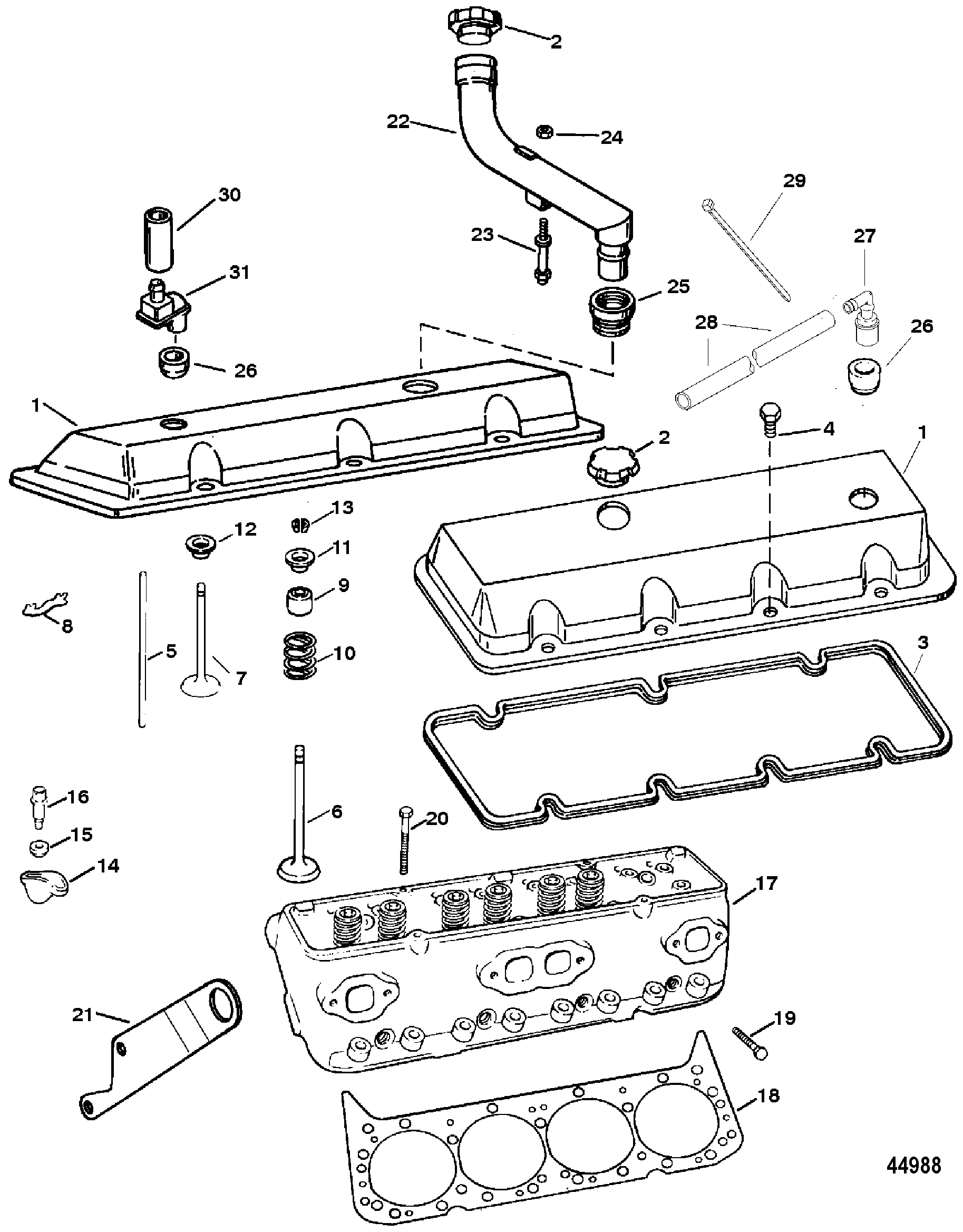

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter (Fuel Cooled System) 0K147350 and Up
- Fuel Pump and Fuel Cooler (Fuel Cooled Sys) 0K147350 and Up
- Fuel Pump and Fuel Filter (Vst Fuel System) 0K147349 and Below
- Intake Manifold And Intake Plenum
- Miscellaneous Information
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Sea Water Pump (Fuel Cooled System) 0K147350 and Up
- Sea Water Pump (VST Fuel System) 0K147349 and Below
- Senders And Harness Bracket
- Shift Bracket
- Starter And Alternator
- Starter Motor (PG260)
- Swiss Emissions Parts (BSO1 And SAV1)
- Thermostat Housing(Fuel Cooled System) 0K147350 and Up
- Thermostat Housing(Vst Fuel System) 0K147349 and Below
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Rail
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 850462 | COVER, Rocker | 2 | ||||||
| 2 | 36-811569 | CAP, Oil Tank | 2 | ||||||
| 3 | 27-811588 | GASKET, Rocker Cover | 2 | 22 | |||||
| 4 | 10-811589 | BOLT, (1/4-20 x 0.875) | 14 | ||||||
| 5 | 850468 | PUSH ROD | 8 | This Part is no longer available. (INTAKE) | |||||
| 5 | 850469 | PUSH ROD | 8 | This Part is no longer available. (EXHAUST) | |||||
| 6 | 814506 | VALVE, Exhaust | 8 | (STANDARD) | |||||
| 6 | 814507001 | VALVE, Exhaust | AR | 814507 | (.015 O.S.) 27 | ||||
| 7 | 49134 | VALVE, Intake | 8 | (STANDARD) | |||||
| 8 | 811585 | GUIDE, Push Rod | 8 | This Part is no longer available | |||||
| 9 | 26-811545 | SEAL, Valve | 16 | 22 | |||||
| 10 | 24-850465T | SPRING, Valve | 16 | 24-850465 | |||||
| 11 | 850463 | ROTATOR | 8 | (EXHAUST) | |||||
| 12 | 850464 | CAP | 8 | (INTAKE) | |||||
| 13 | 28-54530 | KEY, Rocker | 32 | ||||||
| 14 | 850471 | ARM, Rocker | 16 | ||||||
| 15 | 850472 | BALL, Rocker Arm | 16 | ||||||
| 16 | 10-811593 | BOLT, Rocker Arm | 16 | ||||||
| 17 | 938-883492R1 | CYLINDER HEAD | 2 | 938-827656 | |||||
| 18 | 879150141 | GASKET, Cylinder Head | 2 | 27-850470 | 22 | ||||
| 19 | 10-8M0000463 | BOLT, (2.00 Inch) | 8 | 10-49106 | |||||
| 20 | 10-8M0000482 | BOLT, (4.125 Inch) | 24 | 10-49105 | |||||
| 21 | 807081T | BRACKET, Lifting Eye (Front) | 1 | ||||||
| 22 | 36-807131T | TUBE, Oil Fill | 1 | This Part is no longer available | |||||
| 23 | 16-805706 | STUD | 1 | ||||||
| 24 | 11-826709109 | NUT, (.250-28) | 1 | 11-35045 | |||||
| 25 | 26-805622 | GROMMET | 1 | ||||||
| 26 | 25-811553 | GROMMET | 2 | ||||||
| 27 | 21-806603 | VALVE, PVC | 1 | ||||||
| 28 | 32-8M0062321 | HOSE, (33.00 Inches Bulk) | 1 | 32-80617463 | 23 | ||||
| 29 | 54-816311T | 700-21465 | TIE STRAP, (8.00 Inches) | 2 | 54-816311 | ||||
| 30 | 32-8M0062669 | TUBING, (24.00 Inches Bulk), Vent | 1 | 32-807498240 | (USE WITH METAL FLAME ARRESTOR) | ||||
| 30 | 32-1589424 | HOSE, Breather Vent | 1 | 32-1589418 | (USE WITH PLASTIC FLAME ARRESTOR) | ||||
| 31 | 807925A2 | BAFFLE, Breather | 1 | This Part is no longer available | |||||
| - | 27-805396A95 | GASKET SET, Overhaul | 1 |
