135 VERADO 4-STROKE 4 CYL - Serial 0P464488 Thru 0P514868 - Port Cylinder Block Components

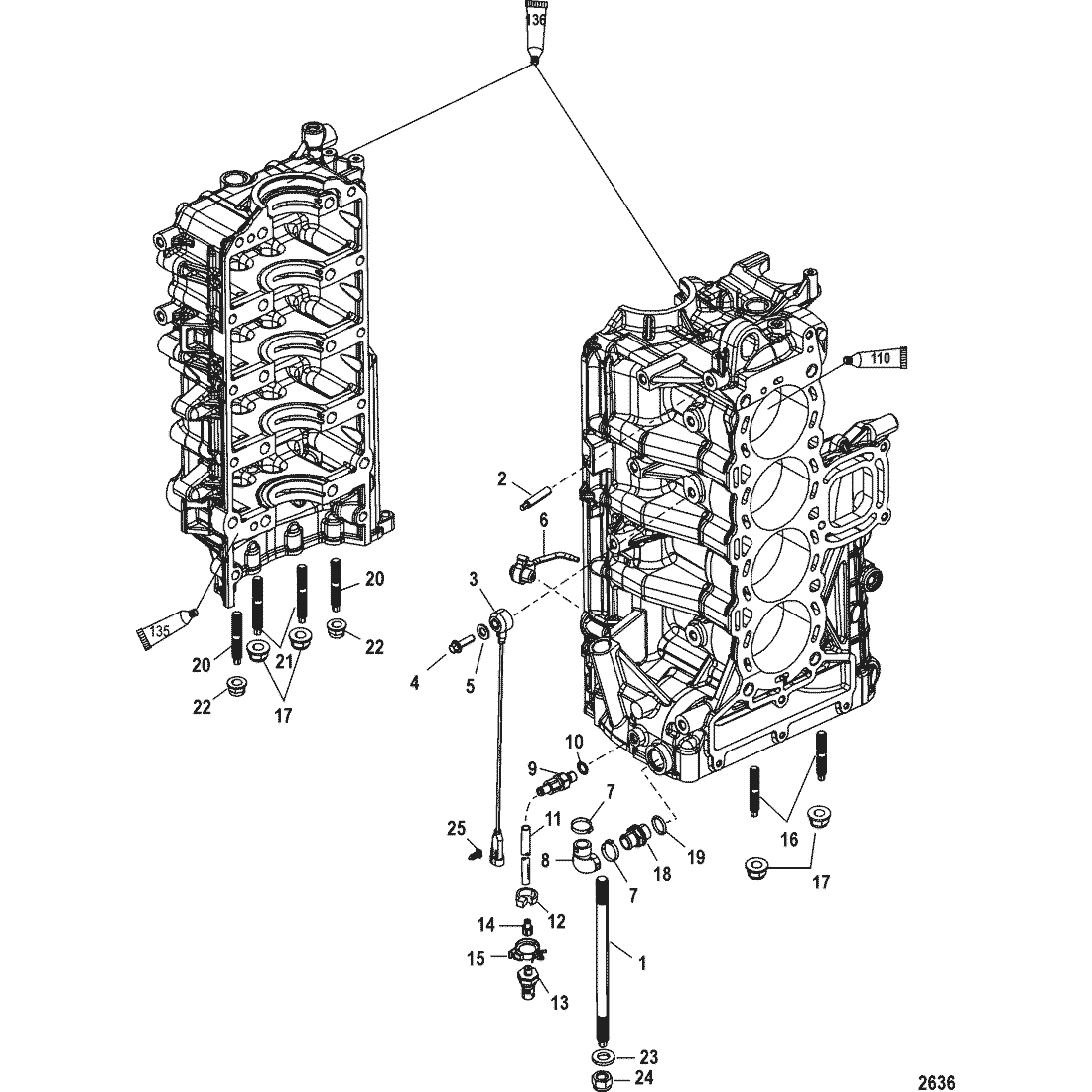

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold
- Charge Cooler/Intake Manifold Hose Routings
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Driveshaft Housing
- Electrical Box Components
- Fuel Supply Module
- Gear Housing (Driveshaft) (Standard/Counter Rotation)
- Gear Housing, Propeller Shaft - Counter Rotation
- Gear Housing, Propeller Shaft - Standard Rotation
- Induction Components
- Mercathode Kit
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Powerhead Gasket Set Components
- Rear Cowl
- Shift Components(Serial Number 1B290522 and Below)
- Shift Components(Serial Number 1B290523 and Up)
- Starboard Cylinder Block/Oil Cooler
- Starter Motor
- Steering Cylinder Assembly
- SuperCharger
- Swivel Bracket and Steering Arm
- Tools
- Tools
- Top Cowl
- Transom Brackets
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 16-8M0022165 | STUD, (M10 x 175) | 6 | 896148 | |||||
| 2 | 16-8M0022162 | STUD | 1 | 888997001 | |||||
| 3 | 8M6003194 | SENSOR ASSEMBLY, Knock | 1 | 878187 | |||||
| 4 | 10-892086035 | SCREW, (M10 x 35) | 1 | ||||||
| 5 | 12-4002319 | WASHER | 1 | ||||||
| 6 | 884268A1 | JET ASSEMBLY, Oil | 4 | ||||||
| 7 | 54-888988008 | CLAMP, (34.6 mm) | 2 | ||||||
| 8 | 32-885544002 | HOSE | 1 | ||||||
| 9 | 22-896094A01 | FITTING ASSEMBLY | 1 | ||||||
| 10 | 25-896699 | O-RING, (.351 x .072) | 1 | 888814 | |||||
| 11 | 32-85978571 | TUBING, (52.00 Inches Bulk), To Water Pressure Sensor (Cut to 23.5 Inches) | 1 | ||||||
| 12 | 54-816311T | TIE STRAP, (8.00 Inches) | 1 | ||||||
| 13 | 881879T26 | SENSOR ASSEMBLY, Pressure, Water | 1 | 881879A20 | |||||
| 14 | 22-892403 | FITTING | 1 | ||||||
| 15 | 54-883066 | CLIP, (.865) | 1 | ||||||
| 16 | 16-8M0000274 | STUD, (M8 x 49) | 2 | 897598 | |||||
| 17 | 11-826365 | NUT, (M8) | 4 | ||||||
| 18 | 22-885517A05 | FITTING ASSEMBLY | 1 | ||||||
| 19 | 25-892077 | O-RING | 1 | ||||||
| 20 | 16-8M0022166 | STUD, (M10 x 54) | 2 | 896268 | |||||
| 21 | 16-8M0000275 | STUD, (M8 x 55) | 2 | 897599 | |||||
| 22 | 11-826292 | NUT, (M10) Brass/Nickel Plated | 2 | ||||||
| 23 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 6 | ||||||
| 24 | 11-884412 | NUT | 6 | ||||||
| 25 | 54-828991T | CLIP | 1 | 828991 | |||||
| - | 27-896142A07 | GASKET SET, Powerhead | 1 | 896142A06 | |||||
| - | 61-896499A07 | POWERHEAD ASSEMBLY | 1 | 896499A06 |
