135 VERADO 4-STROKE 4 CYL - Serial 1B227000 Thru 1B381711 - Oil Pump/Adaptor Plate-Upper

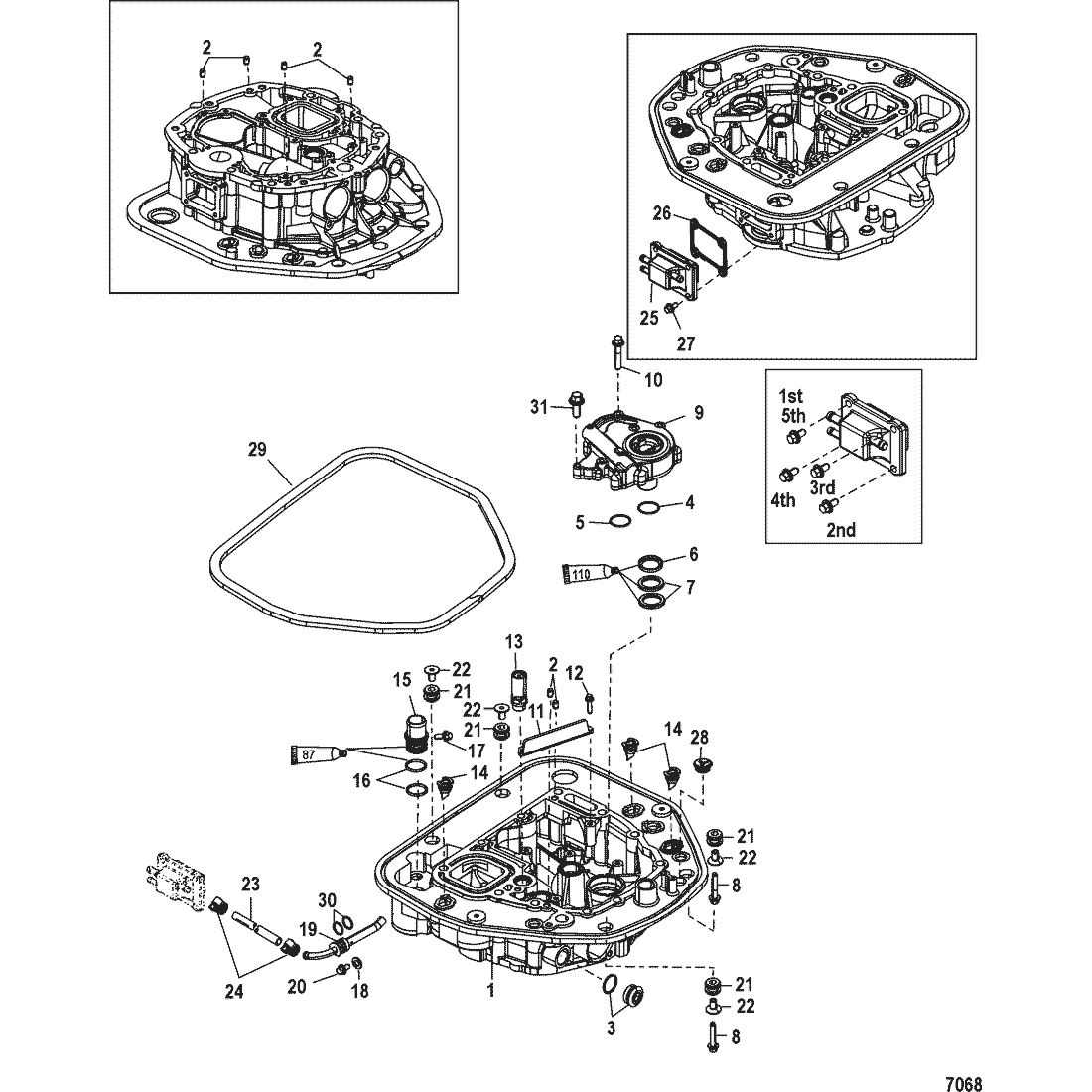

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 896689A02         ADAPTOR PLATE ASSEMBLY 1 896689A01
2 17-892228         PIN, Dowel 6
3 19-896951         PLUG, (24 mm) 1
4 25-897134         O-RING, (1.051 x 1.070) (Inlet) 1
5 25-897135         O-RING, (.864 x .070) (Outlet) 1
6 26-8M0033928         SEAL, Oil 1 884461
7 26-884462         SEAL, Water 2
8 10-897964         SCREW, (M6) 4
9         PUMP ASSEMBLY, Oil 1
10 10-88552545         SCREW, (M6 x 45) Stainless Steel 4
11 892335001         DEFLECTOR, Oil Opt
12 10-88552516         SCREW, (M6 x 16) Stainless Steel Opt
13 21-8M0062064         CHECK VALVE ASSEMBLY 1   No Longer Available
14 888819002         DRAIN, Cowl 3
15 22-896934A02         FITTING ASSEMBLY, Dump 1
16 25-26317         O-RING 2
17 10-88552516         SCREW, (M6 x 16) Stainless Steel 1
18 12-4002316         WASHER 1
19 22-896547001         FITTING 1
20 10-88552512         SCREW, (M6 x 12) Stainless Steel 1
21 25-896671         GROMMET 4
22 23-8M8023048         BUSHING 4 896670001
23 32-8M0108349         TUBING, (.312) (70.00 Inches Bulk) (Cut to 21 Inches) 1 830757130
24 54-815504104         CLAMP, Worm Gear 2
25 892562T01         HOUSING, Manifold 1
26 892117         SEAL 1
27 10-88552516         SCREW, (M6 x 16) Stainless Steel 4
28 25-897433001         GROMMET 1 897433
29 896864001         SEAL, Adaptor Plate 1
30 25-892446         O-RING 2
31 10-88552535         SCREW, (M6 x 35) Stainless Steel 1
- 27-896142A07         GASKET SET, Powerhead 1 896142A06
- 61-896499A07         POWERHEAD ASSEMBLY 1 896499A06
