135 VERADO 4-STROKE 4 CYL - Serial 1B517159 and Up - Starboard Cylinder Block/Oil Cooler(1B831000 and Above)

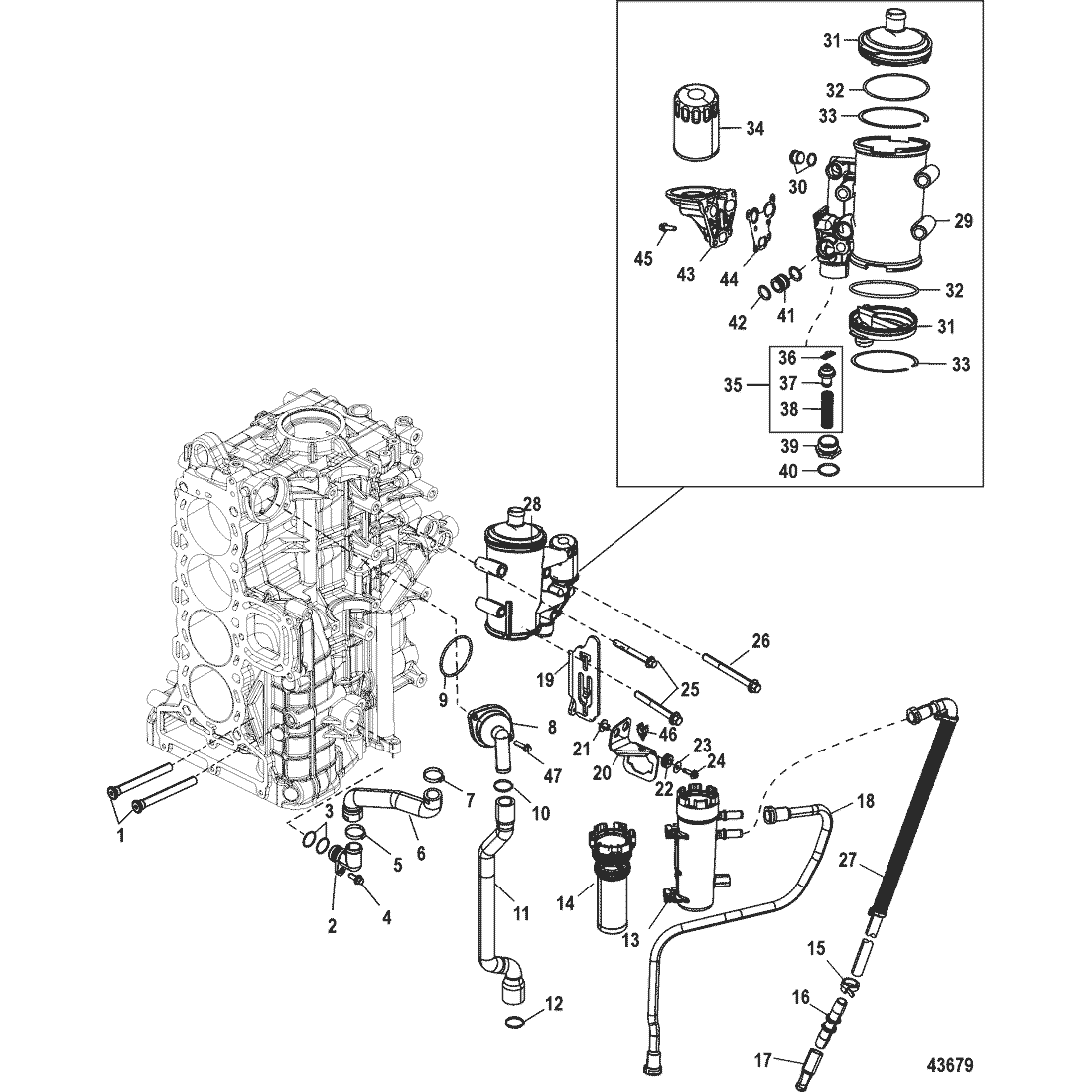

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold Hose Routings
- Charge Cooler/Intake Manifold(Gen I) End Cap Not Serviced
- Charge Cooler/Intake Manifold(Gen II) End Cap Serviced
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Driveshaft Housing
- Electrical Box Components
- Fuel Supply Module
- Gear Housing(Driveshaft)(Standard/Counter Rotation)
- Gear Housing, Prop Shaft-Counter Rotation 2B026816 & below
- Gear Housing, Prop Shaft-Counter Rotation 2B026817 & up
- Gear Housing, Propeller Shaft-Std Rotation 2B026816 & below
- Gear Housing, Propeller Shaft-Std Rotation 2B026817 & up
- Induction Components
- Mercathode Kit
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Powerhead Gasket Set Components
- Rear Cowl
- Shift Components
- Starboard Cylinder Block/Oil Cooler(1B830999 and Below)
- Starboard Cylinder Block/Oil Cooler(1B831000 and Above)
- Starter Motor
- SuperCharger
- Swivel Bracket and Steering Arm
- Tools
- Tools
- Top Cowl
- Transom Brackets
- Water Separator Filter Kit, 8M0046336
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 892404A05 | DEFLECTOR ASSEMBLY, Water | 2 | ||||||
| 2 | 22-885518A02 | FITTING ASSEMBLY | 1 | ||||||
| 3 | 25-62701 | O-RING | 2 | ||||||
| 4 | 10-88552516 | SCREW, (M6 x 16 MM) Stainless Steel | 1 | ||||||
| 5 | 54-888988011 | CLAMP, (38.1 mm) | 1 | ||||||
| 6 | 32-888930003 | HOSE | 1 | ||||||
| 7 | 54-888988008 | CLAMP, (34.6 mm) | 1 | ||||||
| 8 | 892864T04 | 676-18-3631 | THERMOSTAT ASSEMBLY | 1 | |||||
| 9 | 25-8M0005958 | O-RING | 1 | ||||||
| 10 | 54-888988001 | CLAMP, (36.1 mm) | 1 | ||||||
| 11 | 32-896059001 | HOSE, Thermostat | 1 | ||||||
| 12 | 54-888988007 | CLAMP, (42.5 mm) | 1 | ||||||
| 13 | 35-8M0062950 | FILTER, Fuel | 1 | 892242T | |||||
| 14 | 35-8M0060041 | FILTER, Fuel | 1 | 8M0020349 | |||||
| 15 | 54-816311T | TIE STRAP, (8.00 Inches) | 1 | ||||||
| 16 | 22-892356 | CONNECTOR | 1 | ||||||
| 17 | 19-863156 | GRAB TAB | 1 | ||||||
| 18 | 32-8M0087061 | HOSE, Fuel to Lift Pump | 1 | 8M0043796 | |||||
| 19 | 892147A01 | BRACKET ASSEMBLY | 1 | ||||||
| 20 | 897126 | BRACKET | 1 | ||||||
| 21 | 23-822003 | BUSHING | 2 | ||||||
| 22 | 25-834985 | GROMMET | 2 | ||||||
| 23 | 12-65567 | WASHER, (.265 x .750 x .048) Stainless Steel | 2 | ||||||
| 24 | 10-82129125 | SCREW, (M6 x 25 MM) | 2 | ||||||
| 25 | 10-88552785 | SCREW, (M10 x 85) | 3 | ||||||
| 26 | 10-885527105 | SCREW, (M10 x 105) | 1 | ||||||
| 27 | 32-8M0046557 | HOSE ASSMEBLY, Fuel Inlet, 8.2 Inch | 1 | ||||||
| 28 | 8M0092407 | COOLER ASSEMBLY, Oil | 1 | 8M0046689 | |||||
| 29 | NSS | OIL COOLER HOUSING | 1 | Not Sold Separate | |||||
| 30 | 19-891953 | PLUG, (18 mm) | 2 | ||||||
| 31 | 8M0046698 | END CAP ASSEMBLY | 2 | ||||||
| 32 | 25-8M0039516 | O-RING | 1 | ||||||
| 33 | 53-8M0039464 | RING, Retaining | 1 | ||||||
| 34 | 35-877767K01 | 676-9-57821 | FILTER, Oil | 1 | |||||
| 35 | 8M0046693 | THERMOSTAT ASSEMBLY | 1 | ||||||
| 36 | NSS | THERMOSTAT STOP | 1 | Not Sold Separate | |||||
| 37 | 8M0046693 | THERMOSTAT | 1 | No Longer Available | |||||
| 38 | NSS | SPRING | 1 | Not Sold Separate | |||||
| 39 | 19-8M0046697 | PLUG | 1 | ||||||
| 40 | NSS | O-RING | 1 | Not Sold Separate | |||||
| 41 | 8M0046696 | ADAPTOR ASSEMBLY | 1 | ||||||
| 42 | NSS | O-RING | 4 | Not Sold Separate | |||||
| 43 | 8M0046694 | HOUSING ASSEMBLY | 1 | ||||||
| 44 | 27-8M0034568 | GASKET | 1 | ||||||
| 45 | 10-88552516 | SCREW, (M6 x 18) | 6 | No Longer Available | |||||
| 46 | 54-897559 | CLIP | 1 | ||||||
| 47 | 10-88552525 | SCREW, (M6 x 25 MM) Stainless Steel | 2 | ||||||
| - | 61-896499A08 | LONG BLOCK ASSEMBLY | 1 | ||||||
| - | 27-896142A07 | GASKET SET, Powerhead | 1 | 896142A06 |
