150 VERADO 4-STROKE 4 CYL - Serial 0P514869 and Up - Shift Components

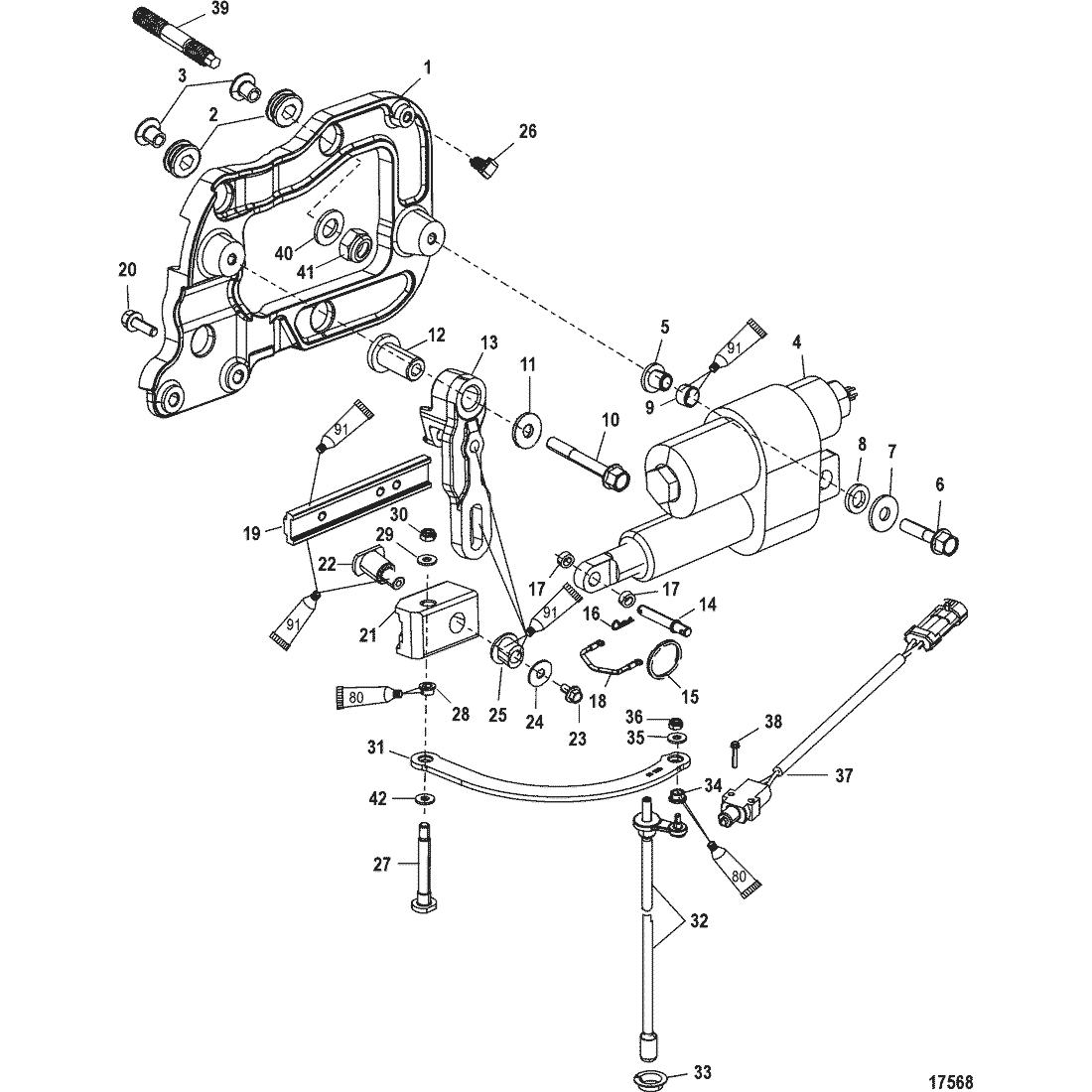

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold Hose Routings
- Charge Cooler/Intake Manifold(Gen I) End Cap Not Serviced
- Charge Cooler/Intake Manifold(Gen II) End Cap Not Serviced
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Driveshaft Housing
- Electrical Box Components
- Fuel Supply Module
- Gear Housing(Driveshaft)(Standard/Counter Rotation)
- Gear Housing, Prop Shaft-Counter Rotation 2B026816 & below
- Gear Housing, Prop Shaft-Counter Rotation 2B026817 & up
- Gear Housing, Propeller Shaft-Std Rotation 2B026816 & below
- Gear Housing, Propeller Shaft-Std Rotation 2B026817 & up
- Induction Components
- Mercathode Kit
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Powerhead Gasket Set Components
- Rear Cowl
- Shift Components
- Starboard Cylinder Block/Oil Cooler(1B830999 and Below)
- Starboard Cylinder Block/Oil Cooler(1B831000 and Above)
- Starter Motor
- SuperCharger
- Swivel Bracket and Steering Arm
- Tools
- Tools
- Top Cowl
- Transom Brackets
- Water Separator Filter Kit, 8M0046336
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | NSS | Acurator Plate Assembly-Complete | 1 | Not Sold Separate | |||||
| 1 | 895739T | BRACKET, Shift | 1 | ||||||
| 2 | 25-855362001 | GROMMET | 4 | ||||||
| 3 | 23-855364 | BUSHING | 4 | ||||||
| 4 | 8M0048114 | SHIFT ACTUATOR | 1 | ||||||
| 5 | 23-884532001 | BUSHING | 1 | ||||||
| 6 | 10-81893435 | SCREW, (M8 x 35) | 1 | ||||||
| 7 | 12-898097 | WASHER | 1 | ||||||
| 8 | 12-889661 | WASHER, Rubber | 1 | ||||||
| 9 | 23-888589 | WEAR SLEEVE | 1 | ||||||
| 10 | 10-88552660 | SCREW, (M8 x 60) | 1 | ||||||
| 11 | 12-898097 | WASHER | 1 | ||||||
| 12 | 23-884554 | BUSHING | 1 | ||||||
| 13 | 895737 | BELL CRANK | 1 | ||||||
| 14 | 17-895736 | PIN | 1 | ||||||
| 15 | 885569 | SPLIT RING | 1 | ||||||
| 16 | NSS | Cotter Pin (Service Bulletin 2003-10) | 1 | Not Sold Separate | |||||
| 17 | 884599 | SPACER | 2 | ||||||
| 18 | 84-88807A6 | CABLE ASSEMBLY, (3.50 Inches) Black | 1 | ||||||
| 19 | 896212 | RAIL SHIFT SLIDE | 1 | ||||||
| 20 | 10-82155025 | SCREW, (M8 x 25) Stainless Steel | 2 | ||||||
| 21 | 898053A01 | SHIFT SLIDER KIT | 1 | ||||||
| 22 | 23-884555 | BUSHING | 1 | ||||||
| 23 | 10-82104510 | SCREW, (M5 x 10) | 1 | ||||||
| 24 | 12-65567 | WASHER, (.265 x .750 x .048) Stainless Steel | 1 | ||||||
| 25 | 887901 | BUSHING | 1 | ||||||
| 26 | 54-828991T | CLIP | 1 | 828991 | |||||
| 27 | 16-898052 | STUD (Included with Reference 21) | 1 | ||||||
| 28 | 23-896551 | BUSHING | 1 | ||||||
| 29 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 1 | ||||||
| 30 | 11-401386 | NUT, (M6) Stainless Steel | 1 | ||||||
| 31 | 895742 | SHIFT LINK | 1 | ||||||
| 32 | 899167 | LEVER, Shift Shaft | 1 | ||||||
| 32 | 899167001 | LEVER, Shift Shaft | 1 | 897563 | |||||
| 33 | 23-74647 | NYLINER | 1 | 897563001 | |||||
| 34 | 23-896551 | BUSHING | 1 | ||||||
| 35 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 1 | ||||||
| 36 | 11-401386 | NUT, (M6) Stainless Steel | 1 | ||||||
| 37 | 87-8M0052939 | SWITCH | 1 | 889514A01 | |||||
| 38 | 10-88075020 | SCREW, (M3 x 20) | 2 | ||||||
| 39 | 16-8M0022167 | STUD, (M8 x 50) | 4 | 896550 | |||||
| 40 | 12-4002318 | WASHER | 4 | ||||||
| 41 | 11-401388 | NUT, (M8) Stainless Steel | 4 | ||||||
| 42 | 12-814806 | 700-21662 | WASHER, (.344 x .688 x .065) Stainless Steel | 1 |
