150 VERADO 4-STROKE 4 CYL - Serial 1B381712 Thru 1B517158 - Rear Cowl, Latch Assembly

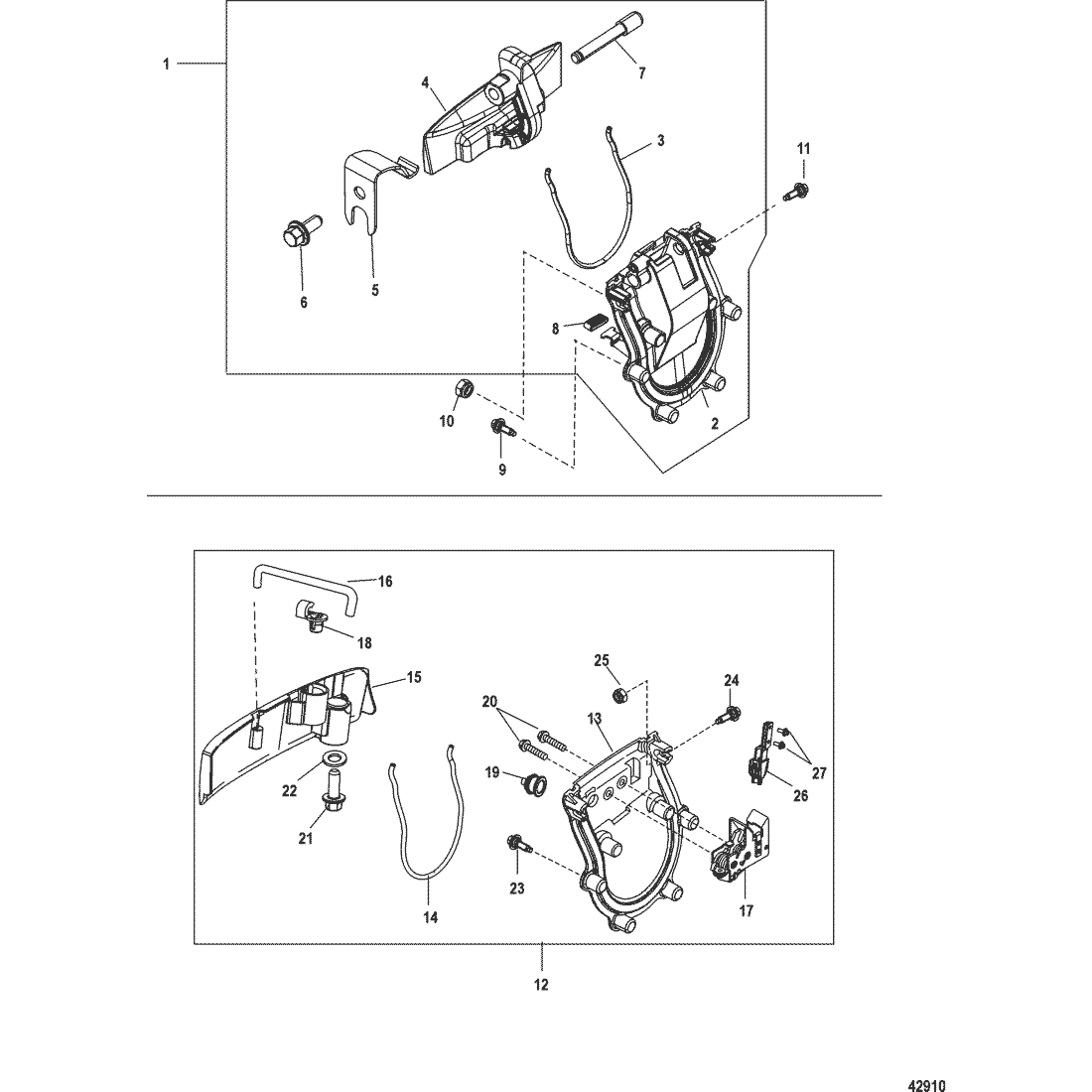

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold
- Charge Cooler/Intake Manifold Hose Routings
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Driveshaft Housing
- Electrical Box Components
- Fuel Supply Module
- Gear Housing(Driveshaft)(Standard/Counter Rotation)
- Gear Housing, Propeller Shaft - Counter Rotation
- Gear Housing, Propeller Shaft - Standard Rotation
- Induction Components
- Mercathode Kit
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Powerhead Gasket Set Components
- Rear Cowl
- Rear Cowl, Latch Assembly
- Shift Components
- Starboard Cylinder Block/Oil Cooler
- Starter Motor
- Steering Cylinder Assembly
- SuperCharger
- Swivel Bracket and Steering Arm
- Tools
- Tools
- Top Cowl
- Transom Brackets
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | NSS | LATCH ASSEMBLY | 1 | Not Sold Separate | |||||
| 2 | 896617A04 | PANEL ASSEMBLY, Access | 1 | No Longer Available | |||||
| 3 | 896927 | SEAL | 1 | ||||||
| 4 | 896928A01 | LEVER ASSEMBLY, Rail Latch | 1 | ||||||
| 5 | 24-896933 | SPRING, Leaf | 1 | No Longer Available | |||||
| 6 | 10-88552514 | SCREW, (M6 x 14 MM) Stainless Steel | 1 | ||||||
| 7 | 17-896932 | PIN, Lever | 1 | ||||||
| 8 | 898476 | BUTTON, Latch | 1 | No Longer Available | |||||
| 9 | 10-892073002 | SHOULDER SCREW, (M6) | 1 | ||||||
| 10 | 11-401386 | NUT, (M6) Stainless Steel | 4 | ||||||
| 11 | 8M0005773 | SCREW, (M6) | 2 | ||||||
| - | 896617A04 | LATCH KIT, Rear, Design-II Up-Fit Kit | 1 | ||||||
| 12 | 879148T72 | PANEL AND LATCH ASSEMBLY | 1 | ||||||
| 13 | 8M0035175 | PANEL, Access | 1 | No Longer Available | |||||
| 14 | 8M0026713 | SEAL | 1 | No Longer Available | |||||
| 15 | 8M0034940 | HANDLE | 1 | 8M0020856 | |||||
| 16 | 8M0020854 | LINK | 1 | ||||||
| 17 | 8M0041031 | LATCH ASSEMBLY, Rear | 1 | 8M0006056 | |||||
| 18 | 8M0006054 | RETAINER | 1 | ||||||
| 19 | 8M0006060 | SEAL | 1 | ||||||
| 20 | 10-88552525 | SCREW, (M6 x 25 MM) Stainless Steel | 2 | ||||||
| 21 | 10-88552516 | SCREW, (M6 x 16 MM) Stainless Steel | 1 | ||||||
| 22 | 12-69056 | WASHER, (.255 x .620 x .030) Stainless Steel | 1 | ||||||
| 23 | 10-892073002 | SHOULDER SCREW, (M6) | 6 | ||||||
| 24 | 8M0005773 | SCREW, (M6) | 2 | ||||||
| 25 | 11-401386 | NUT, (M6) Stainless Steel | 2 | ||||||
| 26 | 8M0020857 | STRIKER ASSEMBLY | 1 | ||||||
| 27 | 10-82130014 | SCREW, (M6 x 14) | 2 |
