175 VERADO 4-STROKE 4 CYL - Serial 1B381712 Thru 1B517158 - Rear Cowl

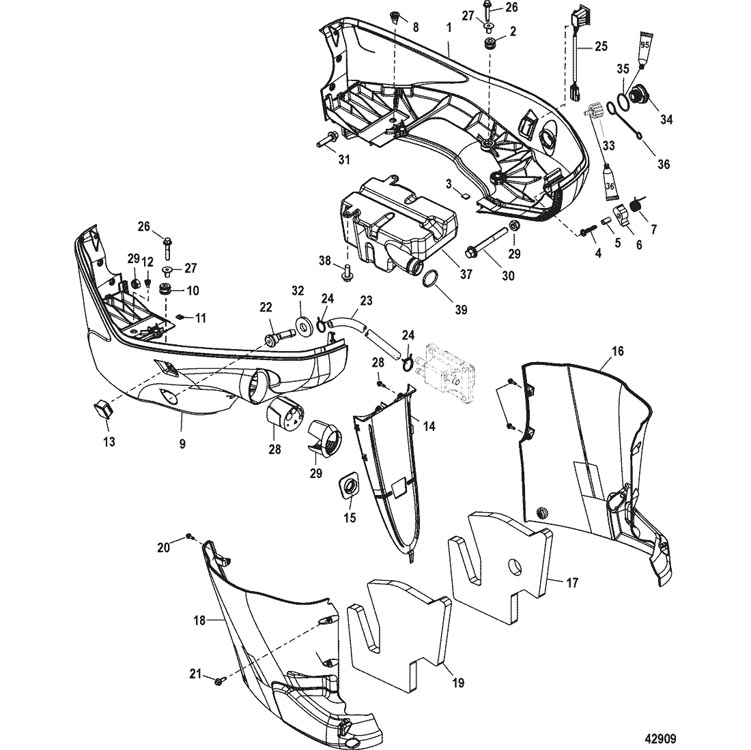

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold
- Charge Cooler/Intake Manifold Hose Routings
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Driveshaft Housing
- Electrical Box Components
- Fuel Supply Module
- Gear Housing(Driveshaft)(Standard/Counter Rotation)
- Gear Housing, Propeller Shaft - Counter Rotation
- Gear Housing, Propeller Shaft - Standard Rotation
- Induction Components
- Mercathode Kit
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Powerhead Gasket Set Components
- Rear Cowl
- Shift Components(Serial Number 1B290522 and Below)
- Shift Components(Serial Number 1B290523 and Up)
- Starboard Cylinder Block/Oil Cooler
- Starter Motor
- Steering Cylinder Assembly
- SuperCharger
- Swivel Bracket and Steering Arm
- Tools
- Tools
- Top Cowl
- Transom Brackets
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | NSS | Pan Assembly-Complete | 1 | Not Sold Separate | |||||
| 1 | 895846A08 | PAN ASSEMBLY, Port | 1 | 895846T02 | |||||
| 1 | 895846A08 | PAN ASSEMBLY, Port | 1 | No Longer Available | |||||
| 2 | 25-896671 | GROMMET | 1 | ||||||
| 3 | 896865 | SEAL, Front | 1 | ||||||
| 4 | 10-888950020 | SCREW, (M4 x 20 mm) | 1 | ||||||
| 5 | 23-898408 | SPACER | 1 | ||||||
| 6 | 898354 | PAWL | 1 | ||||||
| 7 | 24-898353 | SPRING | 1 | ||||||
| 8 | 888819002 | DRAIN, Cowl | 1 | ||||||
| 9 | 895846A08 | PAN ASSEMBLY, Starboard | 1 | 895847T02 | |||||
| 9 | 895846A08 | PAN ASSEMBLY, Starboard | 1 | No Longer Available | |||||
| 10 | 25-896671 | GROMMET | 1 | ||||||
| 11 | 896974 | SEAL, Back | 1 | ||||||
| 12 | 888819002 | DRAIN, Cowl | 1 | ||||||
| 13 | 19-897203 | PLUG | 1 | ||||||
| 14 | 896618A02 | COVER ASSEMBLY, Rear | 1 | ||||||
| 15 | 896924 | BOOT, Idle Exhaust | 1 | ||||||
| 16 | 897593T02 | CHAP ASSEMBLY, Port | 1 | No Longer Available | |||||
| 17 | 897204 | SOUND BLANKET, Starboard | 1 | ||||||
| 18 | 897593T02 | CHAP ASSEMBLY, Starboard | 1 | No Longer Available | |||||
| 19 | 897205 | SOUND BLANKET, Port | 1 | ||||||
| 20 | 10-892073002 | SHOULDER SCREW, (M6) | 12 | ||||||
| 21 | 8M0005773 | SCREW, (M6) | 2 | ||||||
| 22 | 22-895797001 | FITTING | 1 | 895797 | |||||
| 23 | 32-8M0108355 | HOSE, (57.00 Inches Bulk) (Cut to 21 Inches) | 1 | 830756109 | |||||
| 24 | 54-895851 | CLAMP, (8.00 Inches) | 2 | ||||||
| 25 | 87-8M0042300 | SWITCH, Trim | 1 | 896620001 | |||||
| 26 | 10-897964 | SCREW, (M6) | 2 | ||||||
| 27 | 23-8M8023048 | BUSHING | 2 | 896670001 | |||||
| 28 | 25-897169 | GROMMET | 1 | ||||||
| 29 | 8M0043519 | ADAPTOR | 1 | 895316 | |||||
| 30 | 10-897657055 | SCREW, (M6 x 55) | 1 | ||||||
| 31 | 10-897657025 | SCREW, (M6 x 25 MM) | 1 | ||||||
| 32 | 23-892427 | SPACER | 1 | ||||||
| 33 | 22-885361A01 | FITTING ASSEMBLY, Flush | 1 | ||||||
| 34 | 22-888958001 | PLUG | 1 | ||||||
| 35 | 25-888957 | O-RING | 1 | ||||||
| 36 | 889823001 | TETHER | 1 | ||||||
| 37 | 896925A01 | PLENUM KIT, Exhaust | 1 | ||||||
| 38 | 10-892073002 | SHOULDER SCREW, (M6) | 2 | ||||||
| 39 | 25-889828 | O-RING, (.924 x .103) | 1 |
