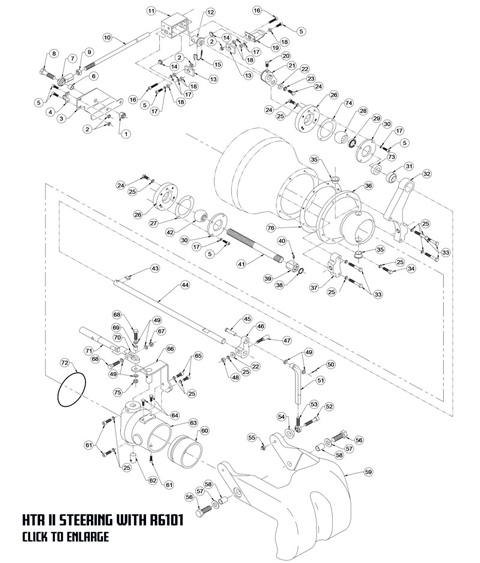

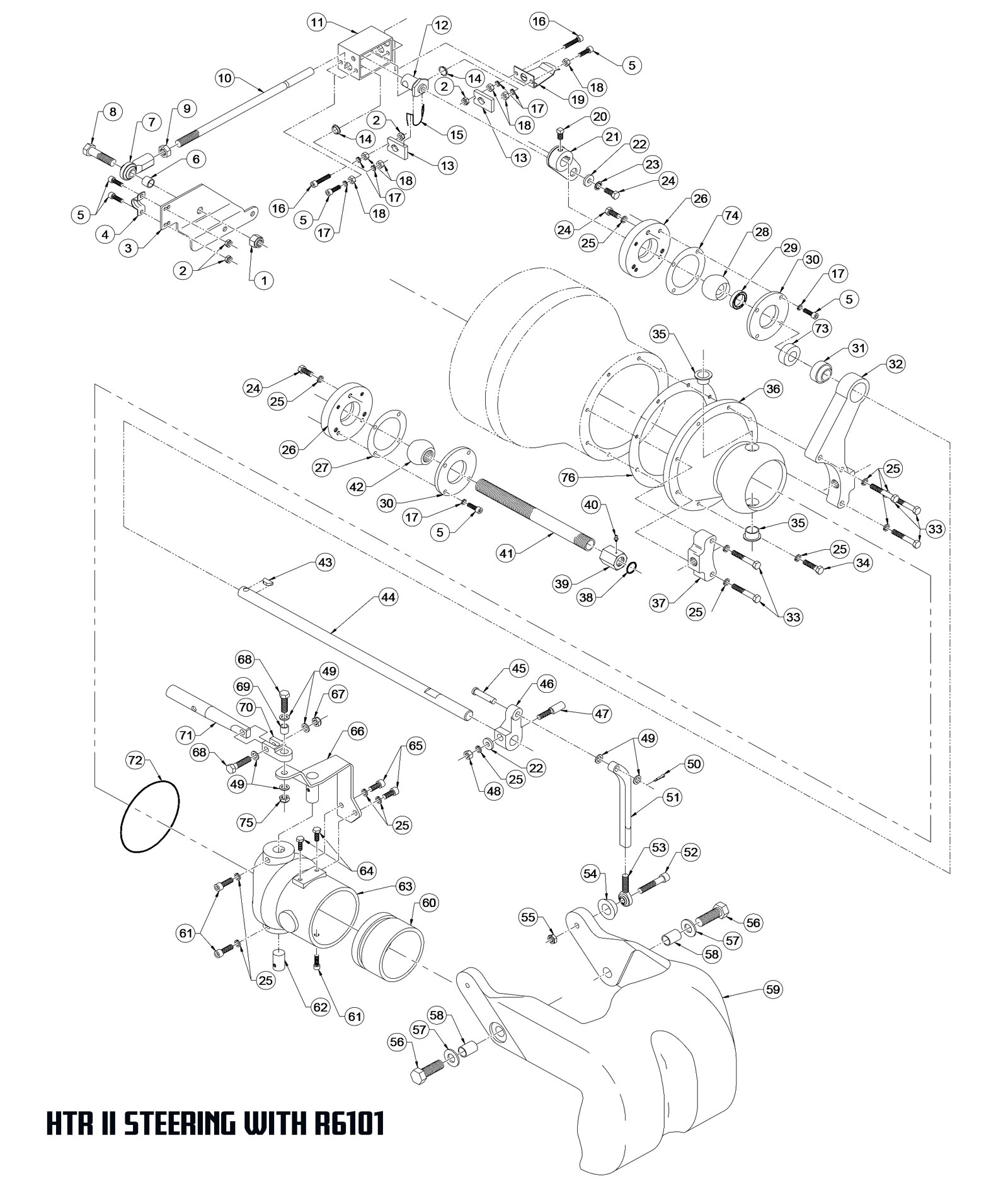

American Turbine Model HTR II STEERING (W / R6101)
Model HTR II STEERING (W / R6101)
PART #RSK2101
|
SYM.
|
DESCRIPTION |
QTY.
|
PART NO. |
|---|---|---|---|
|
1
|
LOCK NUT, 1/2-13 |
1
|
152-F08 13 LN |
|
2
|
HEX NUT, 1/4-20 |
4
|
152-F04 20 LN |
|
3
|
CONTROL ROD BRACKET |
1
|
152-RS1001 |
|
4
|
64 SERIES CABLE CLAMP |
1
|
152-RS5801 |
|
5
|
SHCS, 1/4-20 X 7/8 |
12
|
152-F04 20 07 SH |
|
6
|
PLASTIC BUSHING |
1
|
152-BN2010 |
|
7
|
1/2 FEMALE ROD END |
1
|
152-F08 20 FRE |
|
8
|
HHCS, 1/2-13 X 1-3/4 |
1
|
152-F08 13 14 HH |
|
9
|
JAMB NUT, 1/2-20 |
1
|
152-F08 20 JN |
|
10
|
BRAKE ROD |
1
|
152-RS5101 |
|
11
|
LOCK HOUSING |
1
|
152-RS2901 |
|
12
|
LOCK HUB |
1
|
152-RS3101 |
|
13
|
LOCK PLATE |
2
|
152-RS3001 |
|
14
|
NYLINER BEARING |
2
|
152-RS3201 |
|
15
|
LOCK BLOCK SPRING |
1
|
152-RS2802 |
|
16
|
SHCS, 1/4-20 X 1-3/8 |
2
|
152-F04 20 11 SH |
|
17
|
LOCK WASHER, 1/4 |
14
|
152-F04 LW |
|
18
|
HEX NUT, 1/4-20 |
4
|
152-F04 20 HN |
|
19
|
DETENT SPRING |
1
|
152-RS2701 |
|
20
|
SHCS, 5/16-18 X 1/2 |
1
|
152-F05 18 04 SH |
|
21
|
LEVER ARM (SHIFT SHAFT) |
1
|
152-RS5201 |
|
22
|
THICK WASHER, 5/16 |
2
|
152-F05 TW |
|
23
|
STAR LOCK WASHER, 5/16 |
1
|
152-F05 SW |
|
24
|
HHCS, 5/16-18 X 3/4 |
7
|
152-F05 18 06 HH |
|
25
|
LOCK WASHER, 5/16 |
6
|
152-F05 LW |
|
26
|
BEZEL (SHIFT ROD / STEERING) |
2
|
152-RS5001 |
|
27
|
GASKET |
2
|
152-G4001 |
|
28
|
SHIFT ROD BALL |
1
|
152-RS5621 |
|
29
|
SHIFT ROD SEAL |
1
|
152-RS5601 |
|
30
|
BALL FLANGE |
2
|
152-T2701 |
|
31
|
SPERICAL BEARING |
1
|
152-RS5351 |
|
32
|
PIVOT BRACKET (STARBOARD) |
1
|
152-RS2201 |
|
33
|
HHCS, 5/16-18 X 2-1/4 |
5
|
152-F05 18 18 HH |
|
34
|
HHCS, 5/16-18 X 1-1/4 |
3
|
152-F05 18 10 HH |
|
35
|
NYLON BEARING |
2
|
152-B2201 |
|
36
|
SHORT SNOOT |
1
|
152-R6101 |
|
37
|
PIVOT BRACKET (PORT) |
1
|
152-RS2501 |
|
38
|
O-RING, STEERING CABLE SEAL |
1
|
152-O3501 |
|
39
|
STEERING TUBE SEAL |
1
|
152-T3107 |
|
40
|
GREASE ZERK |
1
|
152-M4801 |
|
41
|
STEERING TUBE |
1
|
152-T3007 |
|
42
|
STEERING TUBE BALL |
1
|
152-T2601 |
|
43
|
WOODRUFF KEY |
1
|
152-R5507 |
|
44
|
SHIFT SHAFT |
1
|
152-RS5221 |
|
45
|
CLEVIS PIN, 3/8 |
1
|
152-F06 CL |
|
46
|
REVERSE LEVER ARM |
1
|
152-RS2401 |
|
47
|
TAPER PIN |
1
|
152-RS3501 |
|
48
|
HEX NUT, 5/16-18 |
1
|
152-F05 18 HN |
|
49
|
FLAT WASHER, 3/8 AN |
6
|
152-F06 AN |
|
50
|
COTTER PIN, 1/8 X 1/2 |
1
|
152-F02 04 CP |
|
51
|
PUSH PULL ROD |
1
|
152-RS2301 |
|
52
|
SHCS, 3/8-24 X 2 |
1
|
152-F06 24 16 SH |
|
53
|
MALE ROD END, 3/8-24 |
1
|
152-F06 24 MRE |
|
54
|
TAPERED SLEEVE |
1
|
152-RS2621 |
|
55
|
LOCK NUT, 3/8-24 (THIN) |
1
|
152-F06 24 TL |
|
56
|
HHCS, 5/8-11 X 1-3/4 |
4
|
152-F10 11 14 HH |
|
57
|
THICK WASHER, 5/8 |
2
|
152-F10 TW |
|
58
|
BUSHING (BUCKET PIVOT) |
2
|
152-RS2131 |
|
59
|
REVERSE BUCKET |
1
|
152-RS2101 |
|
60
|
NOZZLE INSERT |
1
|
152-R70014 |
|
61
|
SHCS, 5/16-18X1 |
1
|
152-F05 18 08 SH |
|
62
|
PIN, LOWER NOZZLE |
1
|
152-R3701 |
|
63
|
NOZZLE, STEERING |
1
|
152-R1101 |
|
64
|
HHCS, 1/4-20 X 3/4 |
2
|
152-F04 20 06 HH |
|
65
|
SHCS, 5/16-18 X 3/4 |
2
|
152-F05 18 06 SH |
|
66
|
TILLER ARM |
1
|
152-RS2801 |
|
67
|
LOCK NUT, 3/8-24 (THIN) |
1
|
152-F06 24 TL |
|
68
|
HHCS, 3/8-24 X 1-1/2 |
2
|
152-F06 24 12 HH |
|
69
|
BRONZE BUSHING 3/8 X 1/2 |
1
|
152-RS2623 |
|
70
|
CLEVIS |
1
|
152-R8007 |
|
71
|
STEERING EXTENSION |
1
|
152-R9601 |
|
72
|
O-RING, STEERING NOZZLE |
1
|
152-O1401 |
|
73
|
PLASTIC COLLAR |
1
|
152-RS6201 |
|
74
|
GASKET, SHIFT SHAFT |
1
|
152-G4001 |
|
75
|
LOCK NUT, 3/8-24 |
1
|
152-F06 24 LN |
|
76
|
NOZZLE HOUSING GASKET |
1
|
152-G2507 |
