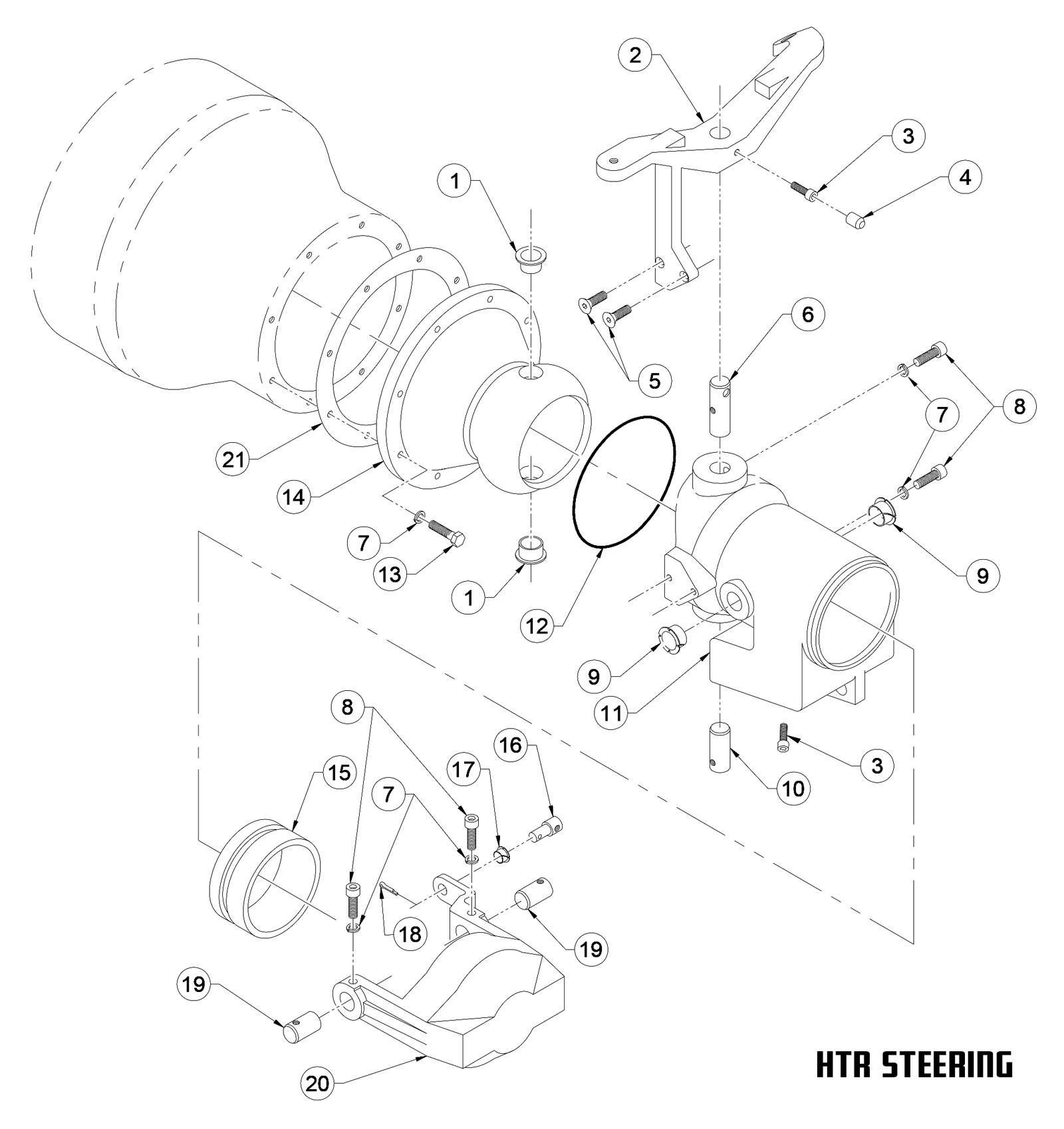

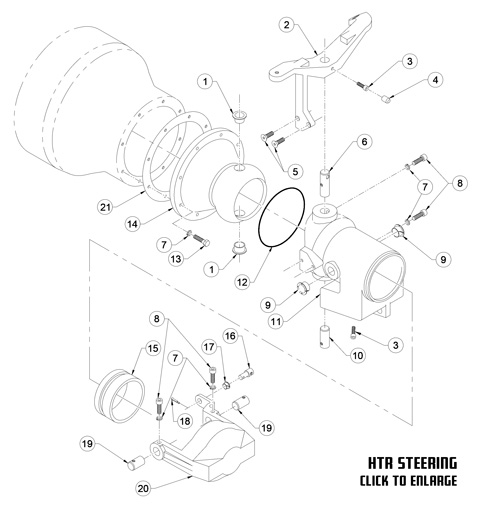

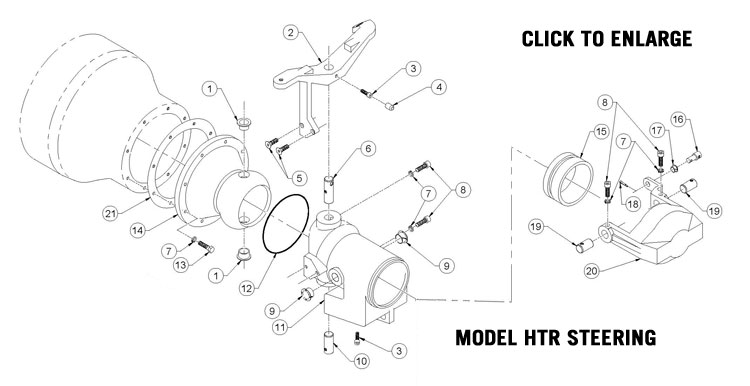

American Turbine Model HTR Steering
HTR Steering
PART #RA1701
|
SYM.
|
DESCRIPTION |
QTY.
|
PART NO. |
|---|---|---|---|
|
1
|
BRASS BUSHING |
2
|
152-B2201 |
|
2
|
TILLER ARM |
1
|
152-R3301 |
|
3
|
SHCS, 5/16-18 X 3/4 |
2
|
152-F05 18 06 SH |
|
4
|
VINYL CAP |
1
|
152-M5001 |
|
5
|
FHMS, 5/16-18 X 1 |
2
|
152-F05 18 08 FH |
|
6
|
UPPER STEERING PIN |
1
|
152-R3601 |
|
7
|
LOCKWASHER, 5/16 |
12
|
152-F05 LW |
|
8
|
SHCS, 5/16-18 X 1 |
4
|
152-F05 18 08 SH |
|
9
|
1/2 NYLINER |
2
|
152-B2101 |
|
10
|
LOWER STEERING PIN |
1
|
152-R3701 |
|
11
|
NOZZLE |
1
|
152-R1701 |
|
12
|
NOZZLE O-RING |
1
|
152-O1401 |
|
13
|
HHCS, 5/16-18 X 1-1/4 |
8
|
152-F05 18 10 HH |
|
14
|
SHORT SNOOT |
1
|
152-R6101 |
|
15
|
NOZZLE INSERT |
1
|
152-R710** |
|
16
|
REVERSE PIVOT PIN |
1
|
152-R5005 |
|
17
|
3/8 NYLINER |
1
|
152-B2I05 |
|
18
|
COTTER PIN, 1/8 X 3/4 |
1
|
152-F02 06 CP |
|
19
|
REVERSE BUCKET PIN |
2
|
152-R3701 |
|
20
|
REVERSE BUCKET |
1
|
152-R2101 |
|
21
|
NOZZLE HOUSING GASKET |
1
|
152-G2507 |
