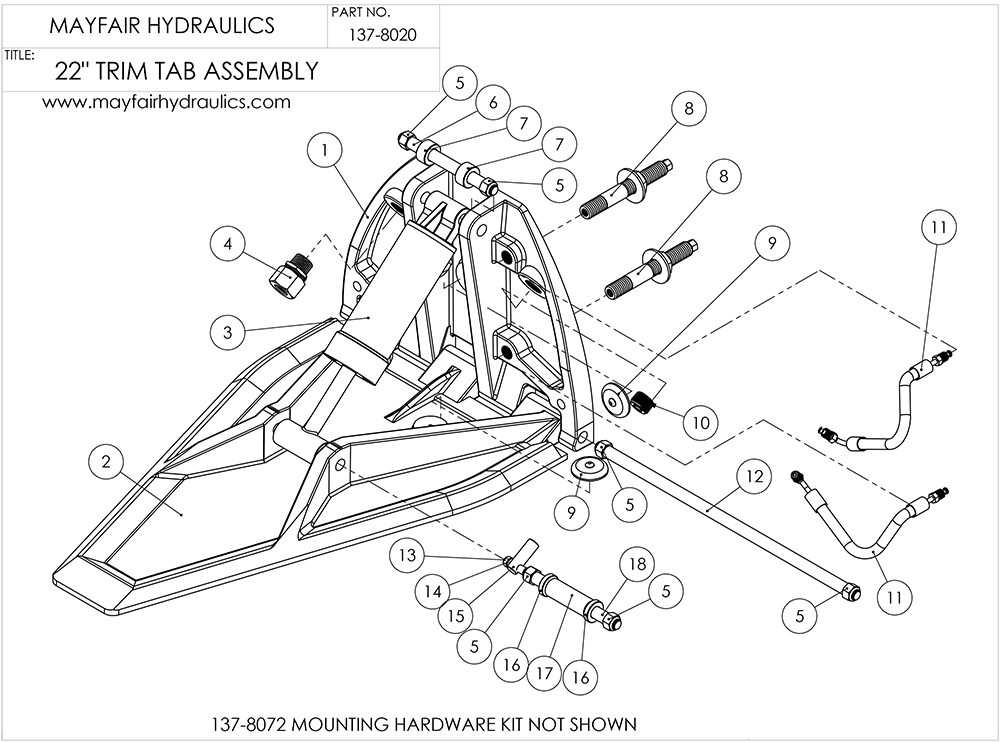

Item No. | Part Number | Description | Qty. |
1 | 137-8043 | Transom Plate | 1 |
2 | 137-8040 | Lower Trim Plate | 1 |
3 | 137-8000 | SS Trim Ram | 1 |
4 | 137-8054 | Cable Thru Hull | 1 |
5 | 90043CN-FNSS | Nut | 3 |
6 | 137-8056 | Upper Trim Ram Pin | 1 |
7 | 137-8061 | Upper TrimRam Bushng | 1 |
8 | 137-8066 | Oil Line Thru Hull | 2 |
9 | 137-8070 | Trim Tab Zinc | 2 |
10 | 540-223012 | Plug, 1/2" NPT SS | 2 |
11 | 137-8266 | Trim Ram Hose | 2 |
12 | 137-8058 | Trim Tab Hinge Pin | 1 |
13 | 90010CN-FNSS | Nut | 1 |
14 | 90010AN-STSS | Washer, Trim Tab | 1 |
15 | 137-8059 | Trim Tab Cable End | 1 |
16 | 137-8062 | Lower Trim Ram Bushing | 2 |
17 | 137-8060 | Trim Ram to Pins Bushing | 1 |
18 | 137-8057 | Trim Ram with Actuator Pin | 1 |
- | 137-8072 | Mounting Hardware | 1 |
