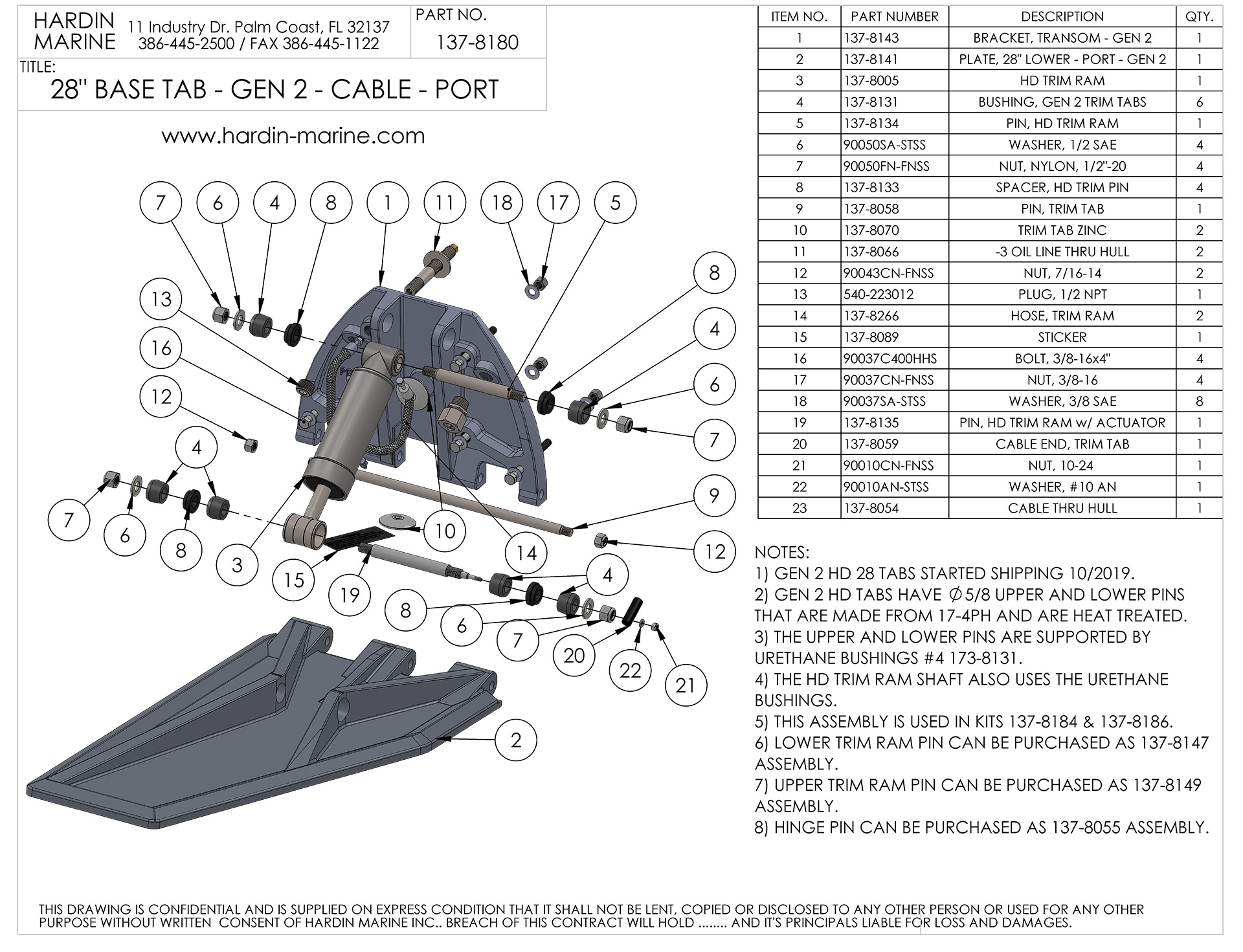

For Starboard Drawing, Click here (parts are the same except lower plate)
| ITEM NO. | PART NUMBER | DESCRIPTION | QTY. |
| 1 | 137-8143 | BRACKET, TRANSOM - GEN 2 | 1 |
| 2 PORT | 137-8141 | PORT PLATE, 28" LOWER - GEN 2 | 1 |
| 2 STBD | 137-8142 | STARBOARD PLATE, 28" LOWER - GEN 2 | 1 |
| 3 | 137-8005 | HD TRIM RAM | 1 |
| 4 | 137-8131 | BUSHING, GEN 2 TRIM TABS | 6 |
| 5 | 137-8134 | PIN, HD TRIM RAM | 1 |
| 6 | 90050SA-STSS | WASHER, 1/2 SAE | 4 |
| 7 | 90050FN-FNSS | NUT, NYLON, 1/2"-20 | 4 |
| 8 | 137-8133 | SPACER, HD TRIM PIN | 4 |
| 9 | 137-8058 | PIN, TRIM TAB | 1 |
| 10 | 137-8070 | TRIM TAB ZINC | 2 |
| 11 | 137-8066 | -3 OIL LINE THRU HULL | 2 |
| 12 | 90043CN-FNSS | NUT, 7/16-14 | 2 |
| 13 | 540-223012 | PLUG, 1/2 NPT | 1 |
| 14 | 137-8266 | HOSE, TRIM RAM | 2 |
| 15 | 137-8089 | STICKER | 1 |
| 16 | 90037C400HHS | BOLT, 3/8-16x4" | 4 |
| 17 | 90037CN-FNSS | NUT, 3/8-16 | 4 |
| 18 | 90037SA-STSS | WASHER, 3/8 SAE | 8 |
| 19 | 137-8135 | PIN, HD TRIM RAM W/ ACTUATOR | 1 |
| 20 | 137-8059 | CABLE END TRIM RAM | 1 |
| 21 | 90010CN-FNSS | NUT 10-24 | 1 |
| 22 | 90010AN-STSS | WASHER #10 AN | 1 |
| 23 | 137-8054 | CABLE THRU HULL | 1 |
