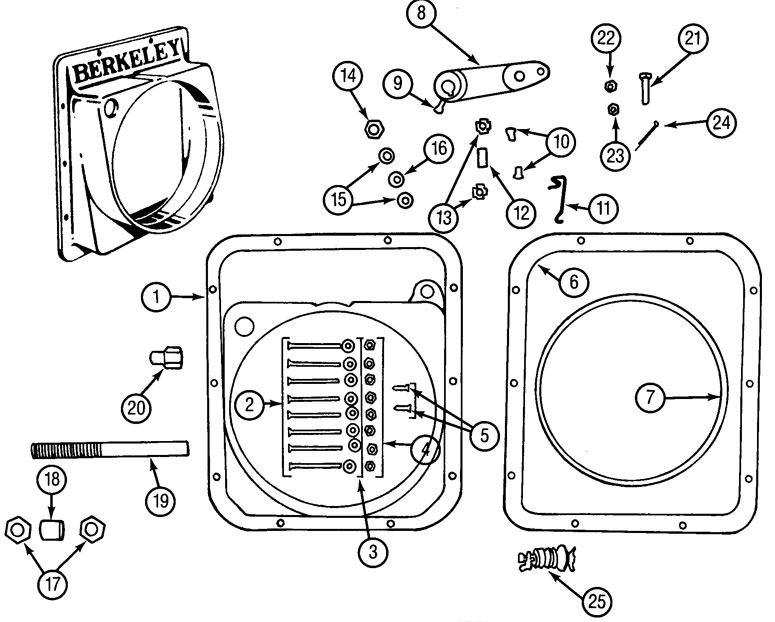

Transom Housing Replacement Parts
Sym. | Description | Part No. | Req. BM-6491 | Req. BM-6492 | |
1 | Transom Housing, 9° to 18° (Standard) | 150-H02079 | 1 | ||
Transom Housing, 0° to 9° | 150-H02503 | 1 | |||
2 | Transom Housing Screw 1/4" x 2" Long F.H. | 150-S25672 | 8 | 8 | |
3 | Transom Housing Washer 1/4" Flat | 150-S23061 | 8 | 8 | |
4 | Transom Housing Nut 1/4" Hex | 150-S23481 | 8 | 8 | |
5 | Transom Housing Screw, #14 Sheet Metal x 1" Long | 150-S26413 | 2 | 2 | |
6 | Rubber Gasket for Transom Housing | 150-S13166 | 1 | 1 | |
7 | Bowl Seal O-ring | 150-S13731 | 1 | 1 | |
8 | Tiller | 150-M05645 | 1 | 1 | |
9 | Tiller Set Screw (5/16"-18 x 3/4" Long Sq. Hd. Set Screw) | 150-S23665 | 1 | 1 | |
10 | Reverse Cable Adjusting Nut (BM-6592) | 150-S15413 | 2 | 2 | |
11 | Retaining Clip BM-6592 | 150-S16609 | 1 | 1 | |
12 | Reverse Control Arm Pin BM-6592 | 150-S15412 | 1 | 1 | |
13 | Nyliner Bearing BM-6592 | 150-S15414 | 2 | 2 | |
14 | Reverse Cable Packer Nut (BM-6593) | 150-S15426 | 1 | 1 | |
15 | Reverse Cable Packer Washer BM-6593 | 150-S15427 | 2 | 2 | |
16 | Reverse Cable Packer Grommet BM-6593 | 150-S09488 | 1 | 1 | |
17 | Steering Tube Nut 7/8" | 150-S13530 | 2 | 2 | |
18 | Steering Tube Bushing | 150-S13531 | 1 | 1 | |
19 | Steering Adapter Tube - Rideguide & Teleflex | 150-S13965 | 1 | 1 | |
Steering Adapter Tube - Steermaster & Marmac | 150-S13529 | 1 | 1 | ||
20 | Adapter - Steermaster Steering Only | 150-S13665 | 1 | 1 | |
21 | Cap Screw, Str. to Tiller - Morse & Rideguide | 150-S32364 | 1 | 1 | |
22 | Spacer Nut, Str. to Tiller - Morse & Rideguide | 150-S26457 | 1 | 1 | |
23 | Slotted Nut | 150-S32400 | 1 | ||
24 | Cotter Pin | 150-S26619 | 1 | ||
25 | Drain Flu B-07572 | 500-0513 | 1 | 1 |
