200 VERADO 4-STROKE 6 CYL - Serial 0T980000 Thru 1B226999 - Electrical Box Components

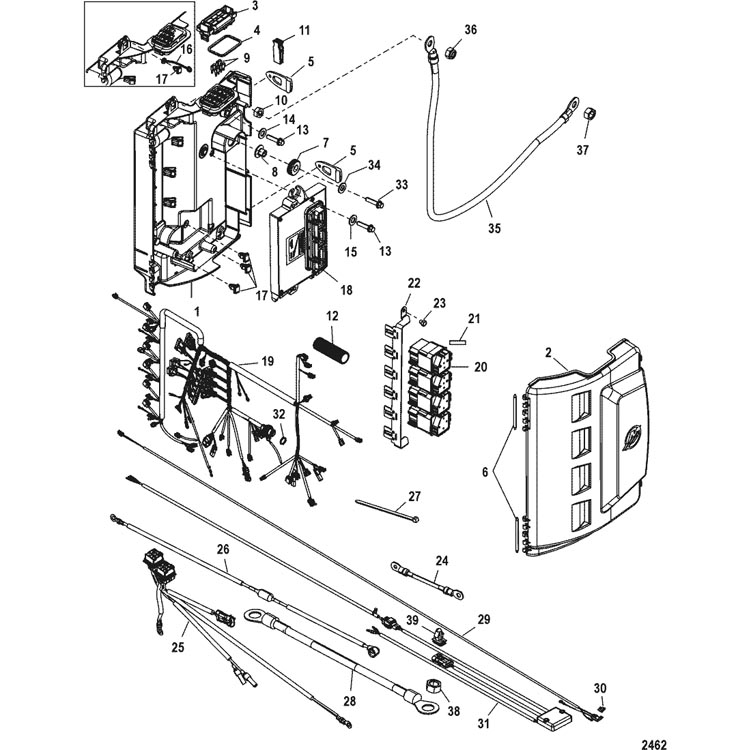

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manfifold
- Charge Cooler/Intake Manifold
- Charge Cooler/Intake Manifold Hose Routings
- Cowl Latching
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Driveshaft Housing
- Electrical Box Components
- Fuel Supply Module
- Gear Housing(Driveshaft)(Standard/Counter Rotation)
- Gear Housing, Propeller Shaft - Counter Rotation
- Gear Housing, Propeller Shaft - Standard Rotation
- Induction Components
- Mount Cradle
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Power Trim/Steering Cylinder
- Powerhead Gasket Set Components
- Rear Cowl
- Starboard Cylinder Block/Oil Cooler
- Starter Motor/Electrical Cable Bracket Mounting
- Super Charger
- Tools
- Top Cowl
- Upper Shift Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | NSS | Electrical Box-Complete | 1 | Not Sold Separate | |||||
| - | NSS | Electrical Box | 1 | Not Sold Separate | |||||
| 1 | 885560T03 | BASE, Electricl box | 1 | 885560T01 | |||||
| 2 | 885561T | COVER, Fuse Box | 1 | ||||||
| 3 | 888491 | COVER | 1 | ||||||
| 4 | 25-885583 | SEAL | 1 | ||||||
| 5 | 889531 | STRAP | 2 | ||||||
| 6 | 885584 | PIN, Hinge | 2 | ||||||
| 7 | 25-833155 | GROMMET | 1 | ||||||
| 8 | 23-8502341 | BUSHING | 1 | ||||||
| 9 | 88-832969T20 | FUSE, Mini - Yellow - 20 Ampere | 7 | 83296920 | |||||
| 10 | 11-400213 | NUT, (M8) Stainless Steel | 1 | ||||||
| 11 | 895099 | EXTRACTOR, Fuse | 1 | ||||||
| 12 | 32-828547753 | CONDUIT, (.750 Inside Diameter x 3.00 Feet Bulk) | 1 | ||||||
| 13 | 10-40011146 | SCREW, (M8 x 13) Stainless Steel | 2 | ||||||
| 14 | 12-843108 | WASHER, (.330 x .560 x .060) Stainless Steel | 1 | ||||||
| 15 | 12-817274 | WASHER, (.344 x 1.00 x .063) Stainless Steel | 1 | ||||||
| 16 | 892244 | STRAP, Cover | 1 | ||||||
| 17 | 54-892448 | CLIP | 5 | ||||||
| 18 | 89790717T | PCM, Propulsion Control Module | 1 | 88555802T | |||||
| 18 | 89790718T | PCM, Propulsion Control Module | 1 | 88555803T | |||||
| 18 | 89790719T | PCM, Propulsion Control Module | 1 | 88555814T | |||||
| 18 | 89790720T | PCM, Propulsion Control Module | 1 | 88555815T | |||||
| 19 | 84-880616T04 | HARNESS ASSEMBLY, Engine | 1 | ||||||
| - | NSS | Relay Bracket Assembly | 1 | Not Sold Separate | |||||
| 20 | 882751A04 | 676-9-15213 | RELAY ASSEMBLY | 4 | |||||
| 21 | NSS | Decal | 4 | Not Sold Separate | |||||
| 22 | 889532 | BRACKET | 1 | ||||||
| 23 | 10-40007103 | SCREW, (M5 x 6) | 2 | ||||||
| 24 | 84-93388A17 | CABLE ASSEMBLY, (8.50 Inches) | 1 | ||||||
| 25 | 84-879345T34 | HARNESS ASSEMBLY, Trim | 1 | 819514A20 | |||||
| 26 | 84-892137A02 | HARNESS ASSEMBLY, Fuse | 1 | 892137A01 | |||||
| 27 | 54-850181 | TIE STRAP, (11.750 Inches) | 6 | ||||||
| 27 | 54-816311T | TIE STRAP, (8.00 Inches) | AR | ||||||
| 28 | 84-88439A26 | CABLE ASSEMBLY, Battery - Negative | 1 | ||||||
| 29 | 84-888416T04 | HARNESS ASSEMBLY, CHI Power | 1 | 888416A1 | |||||
| 30 | 862646 | FUSE, Tan - 5 Ampere | 1 | ||||||
| 31 | 84-883459T01 | HARNESS ASSEMBLY, DBW Boat Adaptor | 1 | 883459A1 | |||||
| 32 | 11-889664 | NUT, (1.500-18) Black Nylon | 1 | ||||||
| 33 | 10-88552635 | SCREW, (M8 x 35 MM) | 1 | ||||||
| 34 | 12-817274 | WASHER, (.344 x 1.00 x .063) Stainless Steel | 1 | ||||||
| 35 | 84-88439A25 | CABLE ASSEMBLY, Battery - Positive | 1 | ||||||
| 36 | 11-401388 | NUT, (M8) Stainless Steel | 5 | ||||||
| 37 | 11-86226 | NUT, (.375-16), Battery Cable-Positive | 1 | ||||||
| 38 | 11-68292 | NUT, (.312-18), Battery Cable-Negative | 1 | ||||||
| 39 | 54-879962 | CLIP | 1 |
