200 VERADO 4-STROKE 6 CYL - Serial 0T980000 Thru 1B226999 - Rear Cowl

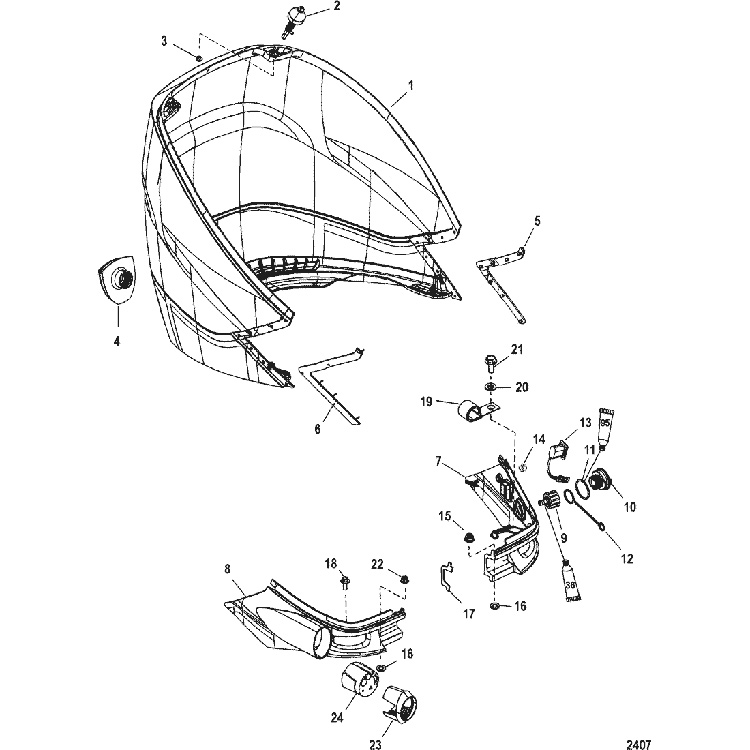

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manfifold
- Charge Cooler/Intake Manifold
- Charge Cooler/Intake Manifold Hose Routings
- Cowl Latching
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Driveshaft Housing
- Electrical Box Components
- Fuel Supply Module
- Gear Housing(Driveshaft)(Standard/Counter Rotation)
- Gear Housing, Propeller Shaft - Counter Rotation
- Gear Housing, Propeller Shaft - Standard Rotation
- Induction Components
- Mount Cradle
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Power Trim/Steering Cylinder
- Powerhead Gasket Set Components
- Rear Cowl
- Starboard Cylinder Block/Oil Cooler
- Starter Motor/Electrical Cable Bracket Mounting
- Super Charger
- Tools
- Top Cowl
- Upper Shift Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 885358T01 | COWL, Rear | 1 | ||||||
| 1 | 100-885358A04 | REAR COWL KIT, Up-Grade Kit (Replaces 100-885358T01s | 1 | 885358A03 | |||||
| 1 | 100-885358T02 | COWL, Rear | 1 | ||||||
| 2 | 17-888961A01 | PIN ASSEMBLY | 2 | ||||||
| 3 | 11-892233 | NUT, (M6) Stainless Steel | 2 | ||||||
| 4 | 885360 | IDLE RELIEF | 1 | ||||||
| 5 | 893343001 | SEAL, Port | 1 | 893343 | |||||
| 6 | 893344001 | SEAL, Starboard | 1 | 893344 | |||||
| 7 | 885356T | INTAKE, Air - Front Cowl - Port | 1 | ||||||
| 7 | 885357T04 | INTAKE, Air - Port | 1 | ||||||
| 8 | 885357T | INTAKE, Air - Front Cowl - Starboard | 1 | ||||||
| 8 | 885357T04 | INTAKE, Air - Starboard | 1 | ||||||
| 9 | 22-885361A01 | FITTING ASSEMBLY, Flush | 1 | ||||||
| 10 | 22-888958001 | PLUG | 1 | ||||||
| 11 | 25-888957 | O-RING | 1 | ||||||
| 12 | 889823001 | TETHER | 1 | ||||||
| 13 | 87-8M0042300 | SWITCH, Trim | 1 | 8569901 | |||||
| 14 | 19-858768 | PLUG | |||||||
| 15 | 11-892233 | NUT, (M6) Stainless Steel | 1 | ||||||
| 16 | 12-4002316 | WASHER | 2 | ||||||
| 17 | 27-892315 | GASKET | 1 | ||||||
| 18 | 10-4006731 | SCREW, (M6 x 16) | 1 | ||||||
| 19 | 54-858951A01 | CLAMP KIT | 1 | ||||||
| 20 | 12-4002316 | WASHER | 1 | ||||||
| 21 | 10-4006731 | SCREW, (M6 x 16) | 1 | ||||||
| 22 | 11-892233 | NUT, (M6) Stainless Steel | 1 | ||||||
| 23 | 8M0043519 | ADAPTOR | 1 | 895316 | |||||
| 24 | 25-897169 | GROMMET | 1 | 895317 |
