225 EFI Pro Max and Super Mag - Serial 0G610104 Thru 0G856999 - Reed Block and Cylinder Head

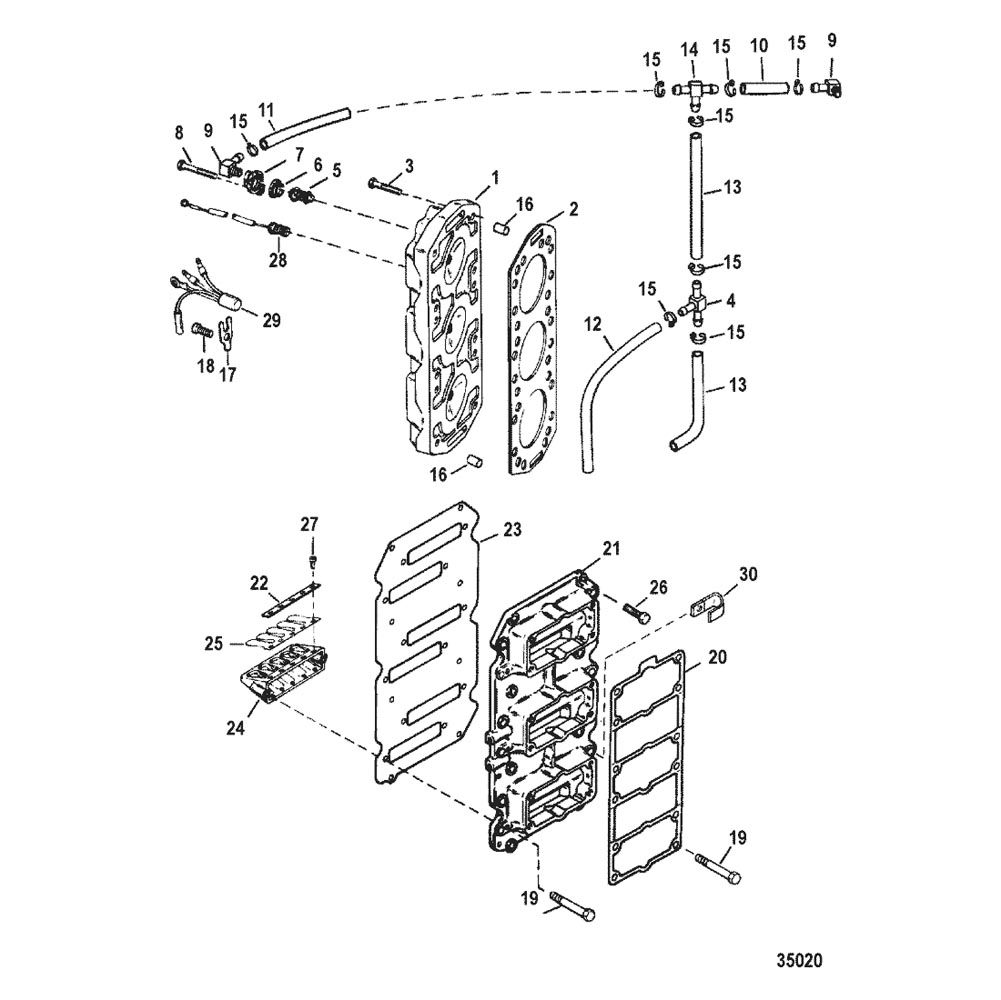

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Bottom Cowl
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Driveshaft Housing
- ECU Assembly
- Exhaust Divider and Exhaust Plate
- Flywheel, Starter Motor and Ignition Coils
- Fuel Management System
- Fuel Pump and Fuel Filter
- Gear Housing Chart, SportMaster
- Gear Housing, Driveshaft-Counter/Standard-SportMaster
- Gear Housing, Driveshaft-TorqueMaster
- Gear Housing, Propeller Shaft-Counter-SportMaster
- Gear Housing, Propeller Shaft-Standard-SportMaster
- Gear Housing, Propeller Shaft-TorqueMaster
- Hydraulic Pump and Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation
- Key Switch
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block and Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket and Steering Arm, Long
- Swivel Bracket and Steering Arm, Short
- Temperature Sensor
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets, Long
- Transom Brackets, Short
- Trim Solenoid Plate
- Vapor Separator Components
- Wiring Harness/Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 18789F1 | CYLINDER HEAD | 2 | ||||||
| 2 | 27-8146581 | GASKET | 2 | ||||||
| 3 | 10-98534 | SCREW, (.375-16 x 2.30) | 24 | ||||||
| 4 | 22-815914 | T-FITTING | 1 | ||||||
| 5 | 75692 | THERMOSTAT | 2 | ||||||
| 6 | 27-62386001 | GASKET | 2 | 62386 | |||||
| 7 | 90390A1 | COVER KIT | 2 | ||||||
| 8 | 10-35386 | SCREW, (.312-18 x 1.00) | 4 | ||||||
| 9 | 22-136071 | ELBOW, WATER HOSES | 2 | ||||||
| 10 | 32-8M0108349 | TUBING, (28.00 Inches Bulk) (2-1/2 IN.) | 1 | 83075780 | |||||
| 11 | 32-77653101 | TUBING, (25.00 Inches) (10-1/2 IN.) | 1 | 7765378 | |||||
| 12 | 32-77653101 | TUBING, (25.00 Inches) (14-1/2 IN.) | 1 | 7765378 | |||||
| 13 | 32-8M0108349 | TUBING, (28.00 Inches Bulk) (7-1/2 IN.) | 2 | 83075780 | |||||
| 14 | 22-90824001 | TEE | 1 | 90824 | |||||
| 15 | 54-816311T | TIE STRAP, (8.00 Inches) | AR | 816311 | |||||
| 16 | 17-63779 | PIN, Dowel (.250 x .625) | 4 | ||||||
| 17 | 137151 | RETAINER | 2 | ||||||
| 18 | 10-98257 | SCREW, (.312-18 x .500) | 2 | ||||||
| 19 | 10-28668 | 676-9-78127 | 700-22440 | SCREW, (.250-20 x .875) Stainless Steel | 12 | ||||
| 20 | 27-167371 | GASKET | 1 | ||||||
| 21 | 12124A3 | PLATE ASSEMBLY | 1 | ||||||
| 22 | 903911 | CLAMP, Reed | 12 | ||||||
| 23 | 27-883775 | GASKET | 1 | 813859 | |||||
| 24 | 87692T3 | BLOCK | 6 | 876922 | |||||
| 25 | 34-815242A3 | REED KIT | 6 | ||||||
| 26 | 10-28668 | 676-9-78127 | 700-22440 | SCREW, (.250-20 x .875) Stainless Steel | 8 | ||||
| 27 | 10-823588 | SCREW, (#8-32 x .250) | 84 | ||||||
| 28 | 97465 | SENDER, Temperature | 1 | ||||||
| 29 | 13536A6 | SENSOR ASSEMBLY, Temperature | 1 | ||||||
| 30 | 54-55098 | J CLIP | 1 | ||||||
| - | 27-813859A95 | GASKET SET | 1 | ||||||
| - | 809430T01 | POWERHEAD ASSEMBLY | 1 | 809430T95 |
