225 EFI Pro Max and Super Mag - Serial 0G610104 Thru 0G856999 - Throttle Lever and Shift Shaft

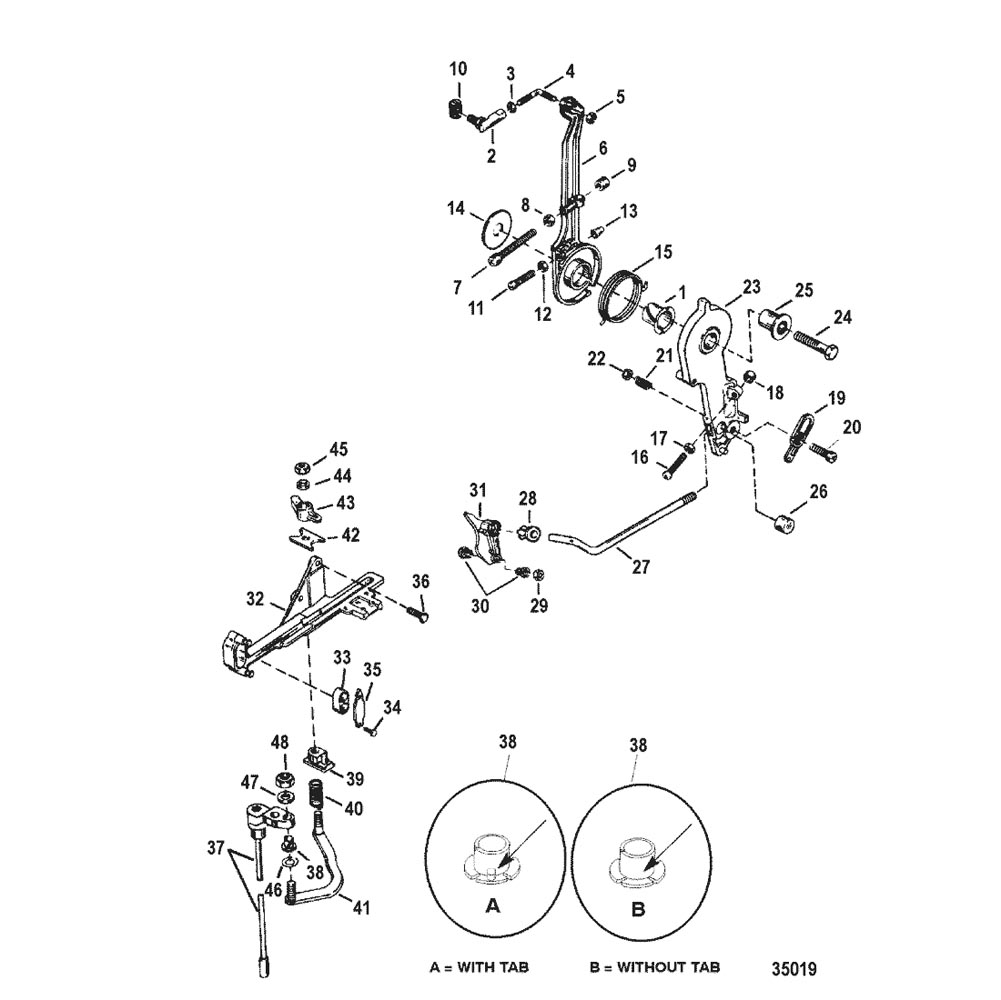

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 23-55171         BUSHING 1
2 62459T         BALL JOINT ASSEMBLY 1 62459
3 11-45076         NUT, (#10-32) Brass 1
4 76035         ROD 1
5 11-46438         NUT, (#10-32) 1
6 41094A3         LEVER ASSEMBLY 1
7 10-64022         SCREW, (.250-20 x 2.125) 1
8 11-64015         NUT, (.250-20) 1
9 26852         CAP, Nylon 1
10 74897T         PIVOT 1 74897
11 10-13627         SCREW, (.190-32 x 1.250) 1
12 11-68219         NUT, (#10-32) Stainless Steel 1
13 48039         CAP 1
14 12-46765         WASHER, (.390 x 1.50 x .120) 1
15 24-823235         SPRING 1
16 10-64022         SCREW, (.250-20 x 2.125) 1
17 11-64015         NUT, (.250-20) 1
18 26852         CAP, Nylon 1
19 39483         LATCH 1
20 10-69026         SCREW, (.250-28 x .880) 1
21 24-20099         SPRING 1
22 11-826709109         NUT, (.250-28) 1 35045
23 410952         LEVER 1 41095
24 10-818165         SCREW, (.375-16 x 1.75) 1
25 23-55164         BUSHING 1
26 14638         BARREL 1
27 14634         ROD 1
28 23-932481         BUSHING 1
29 11-826709109         NUT, (.250-28) 1 35045
30 23-26856         BUSHING 2
31 8142392         CAM 1 8142391
32 814283A2         BRACKET ASSEMBLY 1
33 39519         CUP 1
34 10-42975         DRIVE SCREW 2
35 98889         LATCH 1
36 10-53167T         SCREW, (.312-18 x .880) 3 53167
37 79932A16         SHIFT SHAFT ASSEMBLY 1
37 79932A18         SHIFT SHAFT ASSEMBLY 1
38 23-26600         BUSHING 1 No Longer Available
38 23-26856         BUSHING 1
39 814284         GUIDE BLOCK 1
40 24-20099         SPRING 1
41 67073A1         LINK ROD ASSEMBLY 1
42 52100         WEAR PLATE 1
43 8M0036768         LATCH 1 38279
44 12-69056         WASHER, (.255 x .620 x .030) Stainless Steel 1
45 11-826709109         NUT, (.250-28) 1 35045
46 13-29720         WAVE WASHER 1
47 12-35462         WASHER, (.2656 x .625 x .0625) Stainless Steel 1
48 11-826709109         NUT, (.250-28) 1 35045
