496 Mag HO Model - Serial 0M025000 Thru 0M687143 - Gasket Set Components (27-889924A01), Overhaul

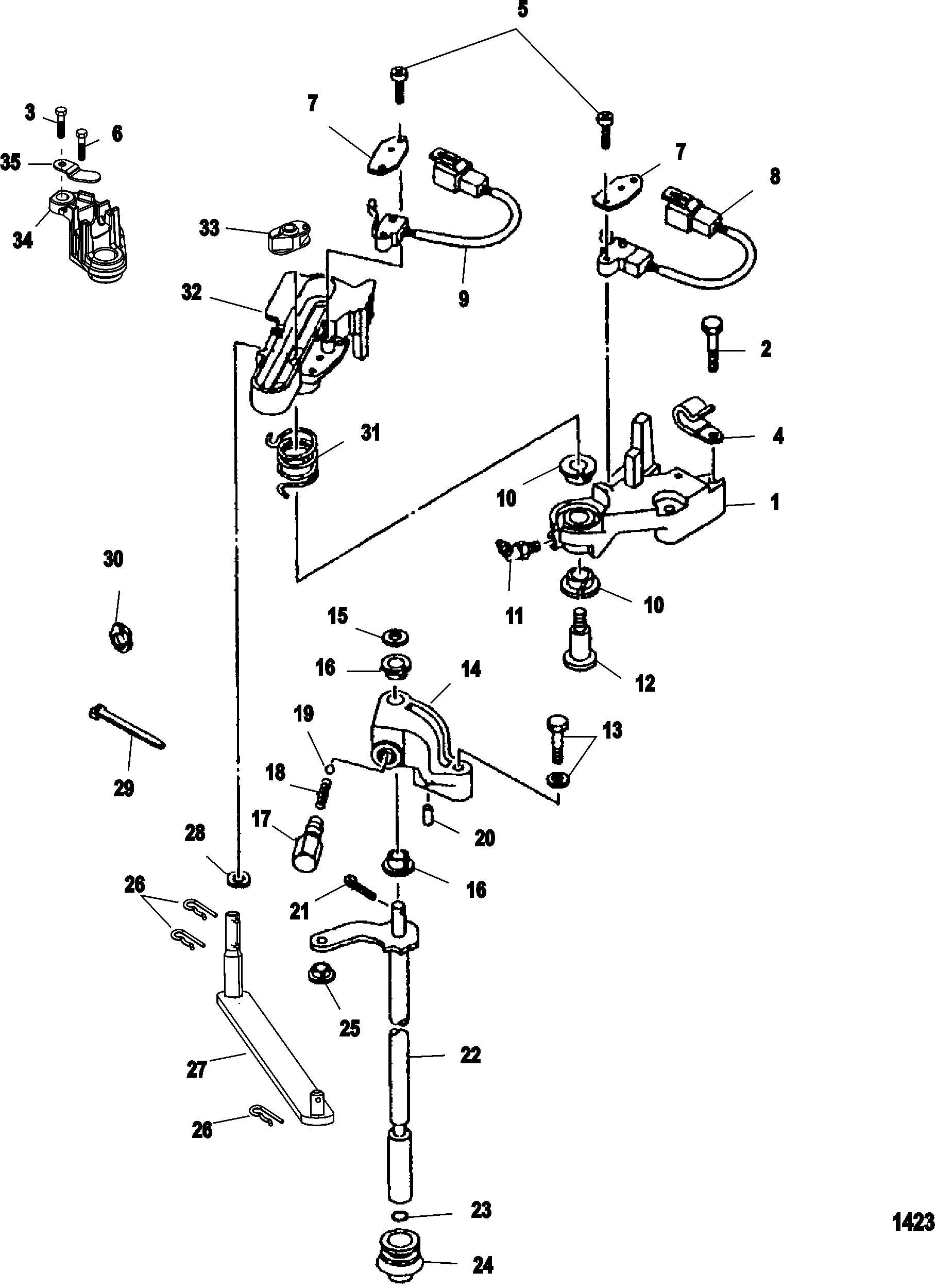

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Block-Camshaft And Pistons
- Block-Crankshaft, Oil Pump, And Front Cover
- Closed Cooling System
- Cylinder Head
- Drive Reservoir And Bracket
- Engine Cover
- Engine Mounts
- Exhaust Manifold (W- Water Rail), Elbow, And Riser
- Exhaust Manifold (WO Water Rail), Elbow, And Riser
- Flywheel Housing
- Fuel Filter And Boost Pump
- Fuel Pump And Fuel Cooler
- Gasket Set Components (27-883231A1), Engine
- Gasket Set Components (27-889924A01), Overhaul
- Intake Manifold
- Lifting Brackets And Wiring Harness
- Mercathode
- Oil Pan And Drain System
- Pcm And Bracket
- Power Steering
- Raw Water Cooling System 1(0M095324 And Below)
- Raw Water Cooling System 2(0M095325 And Up)
- Remote Oil System
- Seawater Pump
- Shift Bracket (Digital Throttle-Shift)
- Shift Bracket (Mechanical Shift)(0M659999 And Below)
- Shift Bracket (Mechanical Shift)(0M660000 And Up)
- Smartcraft Sensors And Harnesses
- Starter And Alternator
- Throttle Body (Digital Throttle-Shift)
- Throttle Body (Mechanical Throttle-Shift)
- Trim Pump Assembly
- Water Drain System
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 27-889924A01 | GASKET SET | 1 | ||||||
| - | 25-32509 | O-RING, (.489 x .070) | 4 | ||||||
| - | 26-42077 | SEAL, Remote Oil | 3 | ||||||
| - | 27-46820 | 676-9-61400 | 700-33760 | GASKET, Exhaust Manifold | 2 | ||||
| - | 27-49955 | 676-9-60104 | 700-30370 | GASKET, Oil Pan Drain | 2 | ||||
| - | 25-8071341 | SEAL | 1 | ||||||
| - | 26-861947 | SEAL, Coolant Crossover | 1 | ||||||
| - | 26-862957 | SEAL, Oil Filter Adaptor | 1 | ||||||
| - | 27-863112 | GASKET, Idle Air Valve | 1 | ||||||
| - | 27-863215 | GASKET, Throttle Body | 2 | ||||||
| - | 27-863285 | GASKET, Air Valve | 1 | ||||||
| - | 26-865066 | SEAL, Heat Exchanger to Crossover | 2 | ||||||
| - | 27-879150064 | GASKET, Cylinder Head | 1 | ||||||
| - | 27-881603001 | GASKET | 2 | ||||||
| - | 27-881604 | GASKET, Circulating Pump | 1 | ||||||
| - | 26-881608001 | SEAL, Crankshaft Rear Oil | 1 | ||||||
| - | 27-881612 | GASKET, Oil Pan | 1 | ||||||
| - | 26-881613001 | SEAL, Crankshaft Front Oil | 1 | ||||||
| - | 27-881620001 | GASKET, Cylinder Head to Crossover | 2 | ||||||
| - | 27-881622 | GASKET, Cylinder Head Cover | 2 | ||||||
| - | 27-881633T01 | GASKET SET, Intake Manifold and Valley | 1 | 27-881633 | |||||
| - | 26-881637T | SEAL, Valve Stem Oil | 16 | ||||||
| - | 27-881631 | GASKET, Cylinder Head | 1 |
