496 Mag HO Model - Serial 0M025000 Thru 0M687143 - Power Steering

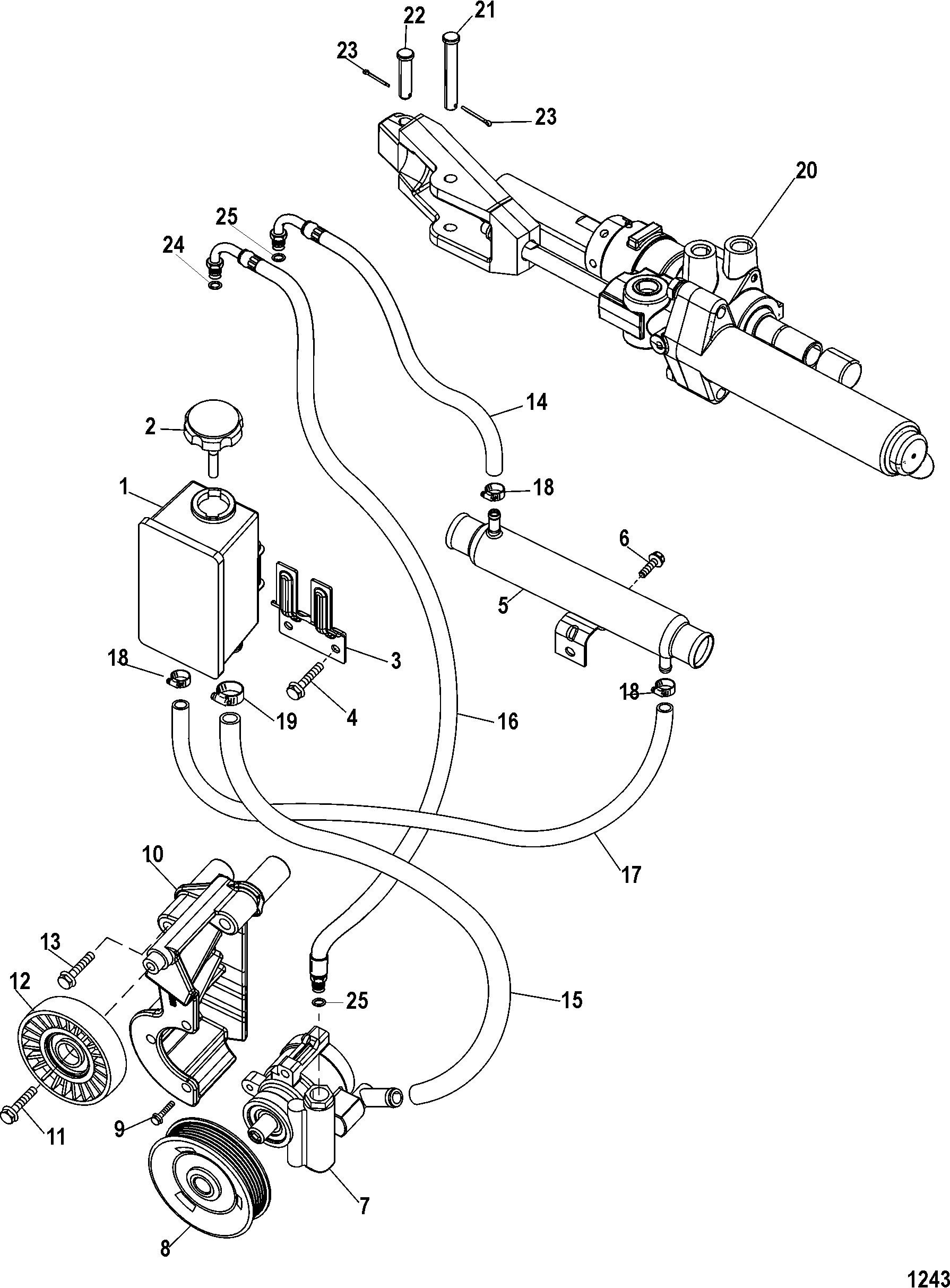

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Block-Camshaft And Pistons
- Block-Crankshaft, Oil Pump, And Front Cover
- Closed Cooling System
- Cylinder Head
- Drive Reservoir And Bracket
- Engine Cover
- Engine Mounts
- Exhaust Manifold (W- Water Rail), Elbow, And Riser
- Exhaust Manifold (WO Water Rail), Elbow, And Riser
- Flywheel Housing
- Fuel Filter And Boost Pump
- Fuel Pump And Fuel Cooler
- Gasket Set Components (27-883231A1), Engine
- Gasket Set Components (27-889924A01), Overhaul
- Intake Manifold
- Lifting Brackets And Wiring Harness
- Mercathode
- Oil Pan And Drain System
- Pcm And Bracket
- Power Steering
- Raw Water Cooling System 1(0M095324 And Below)
- Raw Water Cooling System 2(0M095325 And Up)
- Remote Oil System
- Seawater Pump
- Shift Bracket (Digital Throttle-Shift)
- Shift Bracket (Mechanical Shift)(0M659999 And Below)
- Shift Bracket (Mechanical Shift)(0M660000 And Up)
- Smartcraft Sensors And Harnesses
- Starter And Alternator
- Throttle Body (Digital Throttle-Shift)
- Throttle Body (Mechanical Throttle-Shift)
- Trim Pump Assembly
- Water Drain System
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 862752T1 | RESERVOIR ASSEMBLY, Power Steering | 1 | ||||||
| 2 | 806216 | CAP, Power Steering Reservoir Assembly | 1 | ||||||
| 3 | 863119 | BRACKET, Power Steering Reservoir | 1 | ||||||
| 4 | 10-4000354 | SCREW, (M8 x 30) | 2 | ||||||
| 5 | 861554T01 | COOLER, Power Steering | 1 | 861554T | |||||
| 6 | 10-816585 | SCREW, (.375-18 x .875) | 1 | Metal Cooler | |||||
| 6 | 8M2016106 | SCREW, (.312 x 1.25) | 1 | Composite Cooler (Included with 861554T02) | |||||
| 7 | 806230T | PUMP, Power Steering | 1 | ||||||
| 8 | 862751 | PULLEY, Power Steering | 1 | ||||||
| 9 | 10-4010720 | SCREW, (M8 x 20) | 3 | ||||||
| 10 | 863856T | BRACKET, Power Steering Pump | 1 | ||||||
| 11 | 10-4010816 | SCREW, (M10 x 16) Hex Flange - Stainless Steel | 1 | ||||||
| 12 | 8M6500024 | PULLEY | 1 | 818382 | |||||
| 13 | 10-8M0012503 | SCREW, (M10 x 100) Hex Flange - Stainless Steel | 3 | 10-40108100 | |||||
| 14 | 32-8062215 | HOSE (Cylinder to Cooler) | 1 | ||||||
| 15 | 32-864229 | HOSE (Pump to Reservoir) | 1 | ||||||
| 16 | 32-86131720 | HOSE (Pump to Cylinder) | 1 | ||||||
| 17 | 32-5251914 | HOSE, (53.00 Inches Bulk) (Reservoir to Cooler) | 1 | (Cut to 48 In.) | |||||
| 18 | 54-815504105 | CLAMP, Worm Gear (11-18 mm), Hose | 3 | ||||||
| 19 | 54-815504210 | CLAMP, Worm Gear, Hose | 2 | ||||||
| 20 | 865383A02 | ACTUATOR ASSEMBLY, Power Steering | 1 | 806034A1 | |||||
| 21 | 17-15878 | PIN, Clevis | 1 | (Long) | |||||
| 22 | 17-16419 | PIN, Clevis | 1 | (Short) | |||||
| 23 | 18-46950 | COTTER PIN, Cotter | 2 | ||||||
| 24 | 25-806232 | O-RING, (.239 x .064) | 1 | ||||||
| 25 | 25-89879 | O-RING, (.301 x .064) | 2 | ||||||
| NS | 19-8079921 | COVER, Hose Clamp End | AR | no longer made, limited availability |
