4.3LX (4 BBL.) GM 262 V-6 - 0B775130 THRU 0D714369 - CARBURETOR (ROCHESTER)(205 - 4.3L-LX)

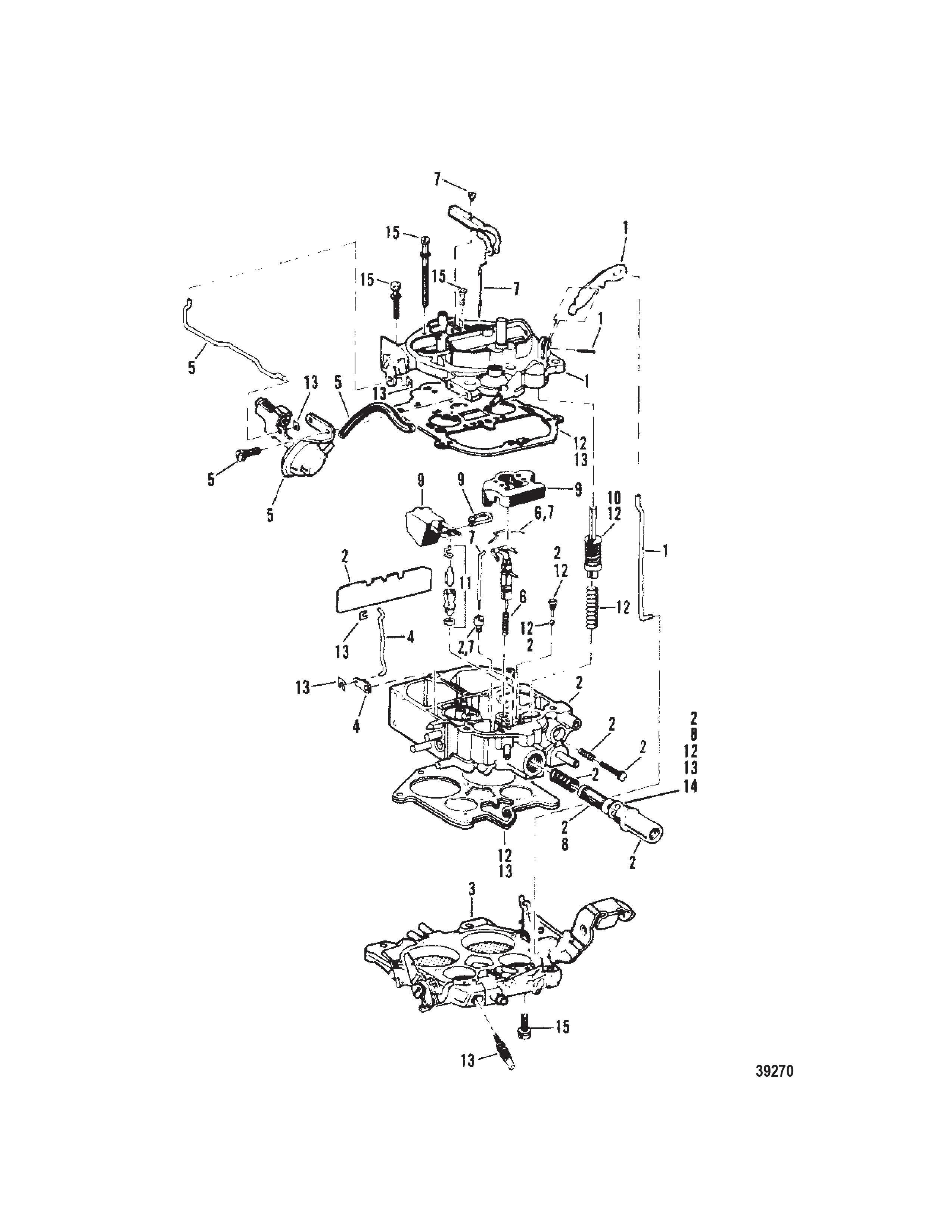

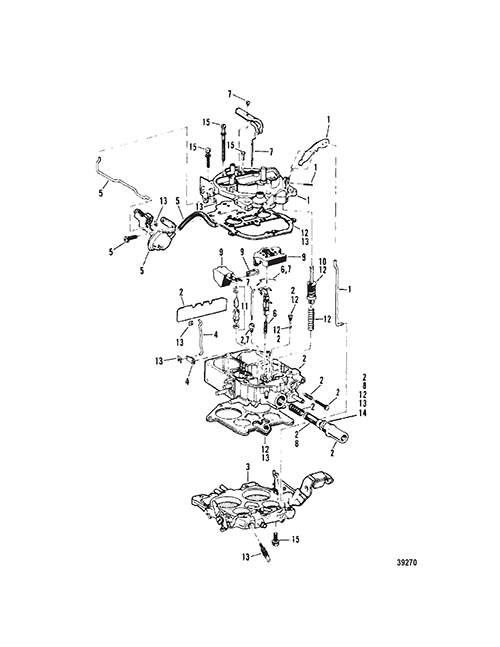

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- ALTERNATOR (MOTOROLA #8EM2003KA)
- ALTERNATOR (MOTOROLA #8MR2039K)
- AUDIO WARNING SYSTEM
- CARBURETOR (MERCARB)(175 - 4.3L)
- CARBURETOR (ROCHESTER)(205 - 4.3L-LX)
- CARBURETOR AND THROTTLE LINKAGE (175 - 4.3L)
- CARBURETOR AND THROTTLE LINKAGE (205 - 4.3L-LX)
- CRANKSHAFT AND PISTONS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ENGINE MOUNTING NEW DESIGN - FLUID MOUNT
- ENGINE MOUNTING OLD DESIGN
- EXHAUST MANIFOLD AND EXHAUST ELBOW
- EXHAUST SYSTEM USE WITH 4 INCH EXHAUST ELBOW
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER NEW DESIGN
- INTAKE MANIFOLD AND FRONT COVER OLD DESIGN
- MISCELLANEOUS PARTS-ACCESSORIES
- OIL PAN AND OIL PUMP
- POWER STEERING COMPONENTS CAST MOUNTING BRACKET
- POWER STEERING COMPONENTS STAMPED MOUNTING BRACKET
- SHIFT BRACKET NEW DESIGN - WITH SPRING GUIDE
- SHIFT BRACKET OLD DESIGN
- STANDARD COOLING SYSTEM NEW DESIGN
- STANDARD COOLING SYSTEM OLD DESIGN
- STARTER MOTOR
- STARTER MOTOR AND ALTERNATOR
- STARTER MOTOR DELCO REMY #9000762
- WIRING HARNESS AND ELECTRICAL COMPONENTS
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| - | 3304 | 9354A2 | CARBURETOR ASSEMBLY | 1 | [1] | |
| 1 | 1397 | 9111 | AIR HORN KIT | 1 | ||
| 2 | 1397 | 9112 | FLOAT BOWL KIT | 1 | ||
| 3 | 1397 | 8540 | THROTTLE BODY KIT | 1 | ||
| 4 | 1397 | 8541 | LINK/LEVER KIT Choke | 1 | ||
| 5 | 1397 | 9113 | PRIMARY VACUUM KIT | 1 | ||
| 6 | 1397 | 8957 | PISTON KIT | 1 | ||
| 7 | 1397 | 9438 | METERING JET AND ROD KIT | 1 | ||
| 8 | 1397 | 8767 | FILTER KIT Fuel | 1 | [2] | |
| 9 | 1397 | 8546 | FLOAT KIT | 1 | ||
| 10 | 1397 | OEM: 525-1397-9669 | PUMP KIT | 1 | ||
| 11 | 1397 | OEM: 525-1397-8548, GLM: 700-40760 | NEEDLE/SEAT KIT | 1 | ||
| 12 | 1397 | 8535 | REPAIR KIT Carburetor | SEE NOTE | 1 | |
| 13 | 1397 | 9723 | GASKET KIT | SEE NOTE | 1 | |
| 14 | 1397 | OEM: 525-1397-8327 | GASKET INLET FUEL NUT | 1 | ||
| 15 | 1397 | 8557 | SCREW KIT AIR HORN/THROTTLE BODY | 1 | ||
| - | 0027 | OEM: 525-27-524572, Sierra: 676-18-2848 | GASKET | 1 |
PART NOTES:
[1] - Alternate part numbers:
804623R02Reman
9354A 2QS
[2] - Alternate part numbers:
8767Service Part
8767QQS
8767TMPP
