4.3LX (4 BBL.) GM 262 V-6 - 0B775130 THRU 0D714369 - CARBURETOR AND THROTTLE LINKAGE (205 - 4.3L-LX)

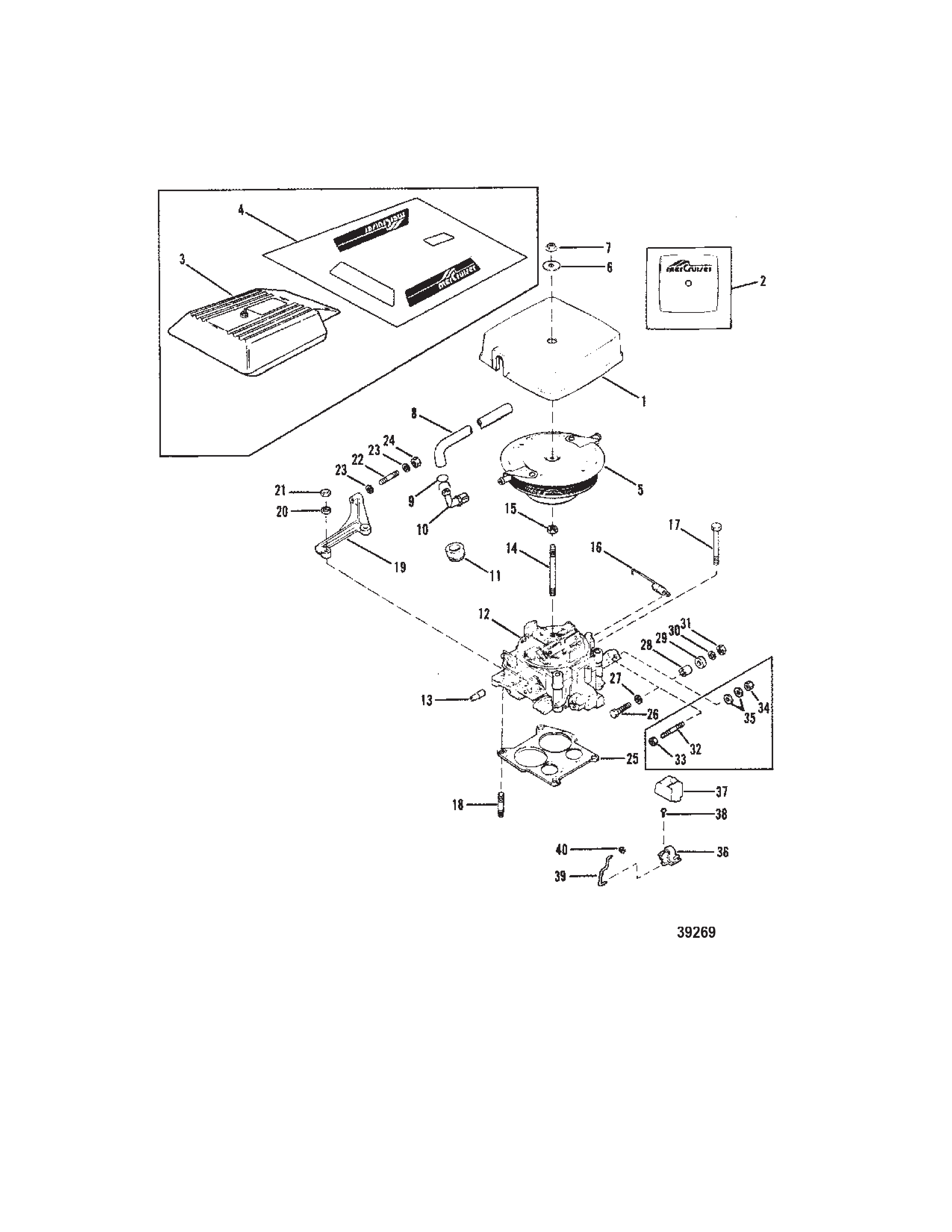

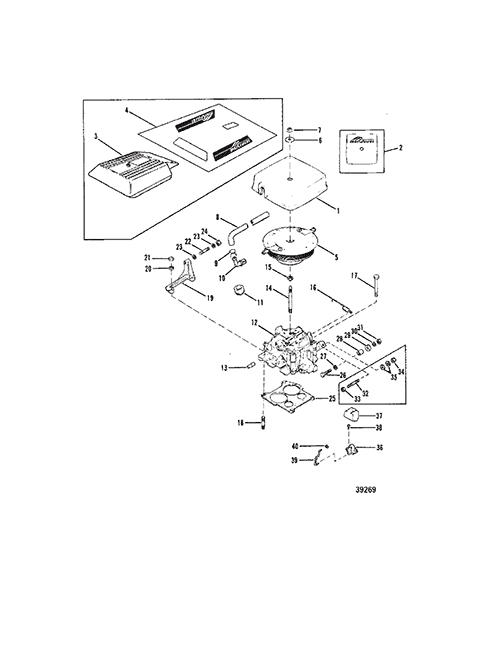

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- ALTERNATOR (MOTOROLA #8EM2003KA)
- ALTERNATOR (MOTOROLA #8MR2039K)
- AUDIO WARNING SYSTEM
- CARBURETOR (MERCARB)(175 - 4.3L)
- CARBURETOR (ROCHESTER)(205 - 4.3L-LX)
- CARBURETOR AND THROTTLE LINKAGE (175 - 4.3L)
- CARBURETOR AND THROTTLE LINKAGE (205 - 4.3L-LX)
- CRANKSHAFT AND PISTONS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ENGINE MOUNTING NEW DESIGN - FLUID MOUNT
- ENGINE MOUNTING OLD DESIGN
- EXHAUST MANIFOLD AND EXHAUST ELBOW
- EXHAUST SYSTEM USE WITH 4 INCH EXHAUST ELBOW
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER NEW DESIGN
- INTAKE MANIFOLD AND FRONT COVER OLD DESIGN
- MISCELLANEOUS PARTS-ACCESSORIES
- OIL PAN AND OIL PUMP
- POWER STEERING COMPONENTS CAST MOUNTING BRACKET
- POWER STEERING COMPONENTS STAMPED MOUNTING BRACKET
- SHIFT BRACKET NEW DESIGN - WITH SPRING GUIDE
- SHIFT BRACKET OLD DESIGN
- STANDARD COOLING SYSTEM NEW DESIGN
- STANDARD COOLING SYSTEM OLD DESIGN
- STARTER MOTOR
- STARTER MOTOR AND ALTERNATOR
- STARTER MOTOR DELCO REMY #9000762
- WIRING HARNESS AND ELECTRICAL COMPONENTS
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | 15414A7 | COVER CARBURETOR | OLD DESIGN | 1 | |
| 2 | 0037 | 1372310 | DECAL CARBURETOR COVER | 2O5 ALPHA ONE - OLD DESIGN | 1 | |
| 2 | 0037 | 1372332 | DECAL CARBURETOR COVER | 4.3L/LX - OLD DESIGN | 1 | |
| 3 | 0000 | OEM: 525-18484A3 | COVER CARBURETOR | 1 | ||
| 4 | 0037 | 812776A2 | DECAL SET COVER | 1 | ||
| 5 | 0000 | 85785A2 | ARRESTOR ASSEMBLY Flame CARBURETOR | 1 | ||
| 6 | 0012 | OEM: 525-12-86400 | WASHER SEALING | 1 | ||
| 7 | 0011 | 20586 | NUT (.250-28) SILENCER ADAPTER | 1 | ||
| 8 | 0032 | 9331512 | HOSE (11-1/4") | 2 | ||
| 8 | 0032 | 1589418 | HOSE Breather (CORRUGATED) | 2 | ||
| 9 | 0054 | 53101 | CLAMP VENT HOSE | 4 | ||
| 10 | 0000 | 97850 | ELBOW 90 Degree Breather - VENT HOSE TO ROCKER COVER | 2 | ||
| 11 | 0025 | 52188 | GROMMET ROCKER COVER | 2 | ||
| 12 | 3304 | 9354A2 | CARBURETOR ASSEMBLY (ROCHESTER) | 1 | [1] | |
| 13 | 0022 | 97282 | CONNECTOR CARBURETOR | 1 | ||
| 14 | 0016 | OEM: 525-16-91842 | STUD FLAME ARRESTOR | 1 | ||
| 15 | 0011 | 28941 | NUT JAM - FLAME ARRESTOR | 1 | ||
| 16 | 0024 | 32817 | SPRING THROTTLE RETURN | 1 | ||
| 17 | 0010 | OEM: 525-10-74822 | SCREW (.312-18 x 3.500) CARBURETOR | 2 | ||
| 18 | 0016 | OEM: 525-16-46857 | STUD (5/16 x 1-7/8) CARBURETOR | 2 | ||
| 19 | 0000 | 41329A3 | BRACKET THROTTLE CABLE | 1 | ||
| 20 | 0012 | OEM: 525-12-20084, GLM: 700-21664 | WASHER (.328 x .562 x .062) THROTTLE CABLE | 4 | ||
| 21 | 0011 | OEM: 525-11-29250 | NUT (.312-24) CARBURETOR STUD | 2 | ||
| 22 | 0016 | OEM: 525-16-38525 | STUD THROTTLE CABLE | 1 | ||
| 23 | 0012 | OEM: 525-12-24664 | WASHER (M4 x 20) THROTTLE CABLE STUD | 2 | ||
| 24 | 0011 | 20586 | NUT (.250-28) THROTTLE CABLE STUD | 1 | ||
| 25 | 0027 | OEM: 525-27-524572, Sierra: 676-18-2848 | GASKET CARBURETOR TO INTAKE MANIFOLD | 1 | [2] | |
| 26 | 0010 | 98509 | SCREW THROTTLE CABLE (1- 1/8") | OLD DESIGN | 1 | |
| 27 | 0012 | 20128 | WASHER THROTTLE CABLE SCREW | OLD DESIGN | 1 | |
| 28 | 0023 | 57938 | BUSHING THROTTLE CABLE SCREW | OLD DESIGN | 1 | |
| 29 | 0023 | OEM: 525-23-34948 | SPACER THROTTLE CABLE SCREW | OLD DESIGN | 1 | |
| 30 | 0012 | OEM: 525-12-56681 | WASHER (.203 x .500 x .032) THROTTLE CABLE SCREW | OLD DESIGN | 1 | |
| 31 | 0011 | 20190 | NUT (#10-32) THROTTLE CABLE SCREW | OLD DESIGN | 1 | |
| 32 | 0016 | 96112 | STUD (.250-28 x 2.00) | NEW DESIGN | 1 | |
| 33 | 0011 | 20586 | NUT (.250-28) THROTTLE CABLE STUD | NEW DESIGN | 1 | |
| 34 | 0011 | 20361 | NUT (.250-28) THROTTLE CABLE STUD | NEW DESIGN | 1 | |
| 35 | 0012 | OEM: 525-12-29245, Sierra: 676-18-4275, GLM: 700-21490 | WASHER (.281 x .500 x .060) Stainless Steel THROTTLE CABLE STUD | NEW DESIGN | 2 | |
| 36 | 0000 | 72625 | CHOKE AUTOMATIC - CARBURETOR | 1 | ||
| 37 | 0000 | 66198 | COVER AUTOMATIC CHOKE | 1 | ||
| 38 | 0010 | 59994 | SCREW (5/8) AUTOMATIC CHOKE THERMOSTAT | 1 | ||
| 39 | 0000 | 61112 | ROD CHOKE | 1 | ||
| 40 | 0054 | 59989 | CLIP AUTOMATIC CHOKE ROD | 1 | ||
| - | 0027 | OEM: 525-27-11977A92, Sierra: 676-18-4388, GLM: 700-39650 | GASKET SET | 1 |
PART NOTES:
[1] - Alternate part numbers:
804623R02Reman
9354A 2QS
[2] - COMPONENT OF ENGINE/POWERHEAD GASKET SET 11977A92
