496 Mag HO Model - Serial 0W060000 Thru 0W309999 - Intake Manifold

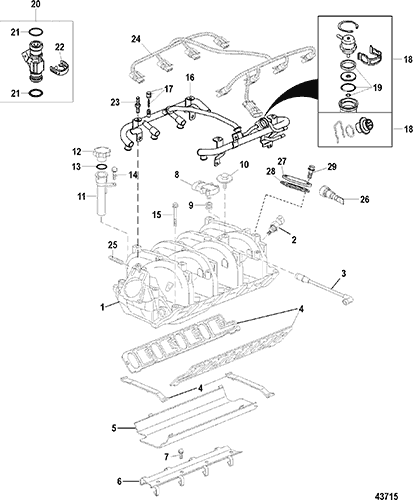

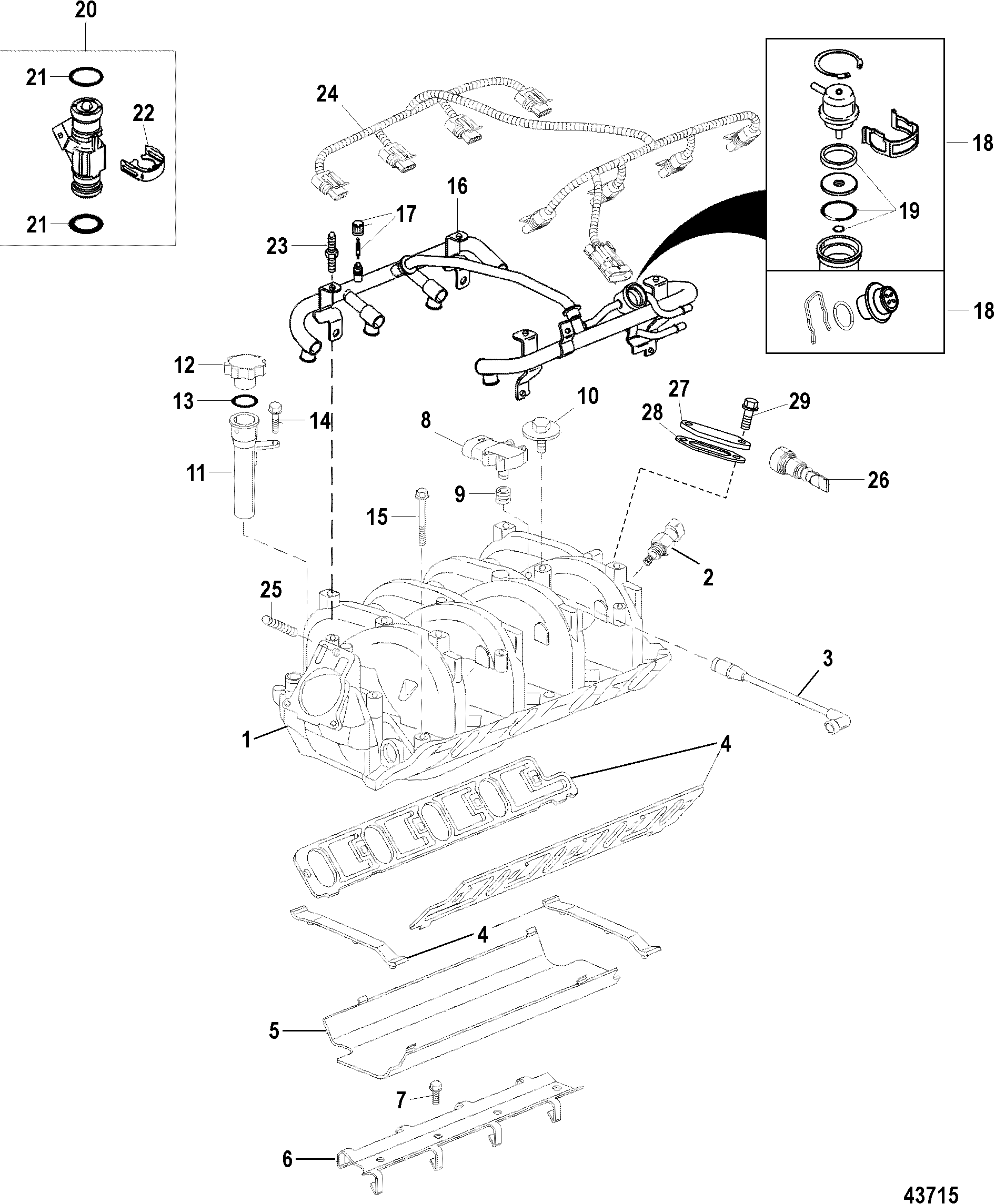

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Block, Camshaft and Pistons
- Block, Crankshaft, Oil Pump and Front Cover
- Cool Fuel System
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components
- Cylinder Head
- Drive Lube Reservoir Assembly
- Engine Cover
- Engine Mounts
- Exhaust Manifold, Elbow and Riser
- Flywheel Housing
- Fuel Module Components
- Gasket Set Components (27-883231A1), Engine
- Gasket Set Components (27-889924A02), Overhaul
- Intake Manifold
- Lifting Brackets and Wiring Harness
- Mercathode Kit
- Oil Pan and Drain System
- PCM and Bracket
- Power Steering
- Remote Oil System
- Seawater Pump
- Shift Bracket (Digital Throttle and Shift)
- Shift Bracket, Mechanical Shift
- Smart Craft Sensor and Harnesses
- Starter and Alternator
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Trim Pump and Motor Components
- Trim Pump Assembly (Complete)
- Water Drain System
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0064079 | MANIFOLD, Intake | 1 | 881690001 | 4,5 | ||||
| 2 | 805223T | SENSOR, Manifold Air Temperature | 1 | ||||||
| 3 | 32-881734 | HOSE, Fuel Pressure Regulator | 1 | 4,5 | |||||
| 4 | 27-895235 | GASKET SET, Intake Manifold and Valley | 1 | 2,4,5 | |||||
| 5 | 881689 | SHIELD, Oil Splash | 1 | 4,5 | |||||
| 6 | 8M0050807 | RETAINER, Valve Lifter Guide | 1 | 845755 | 4,5 | ||||
| 7 | 10-881570 | SCREW, (M8 x 25 MM) | 7 | 4,5 | |||||
| 8 | 8M0054726 | SENSOR, Manifold Air Pressure | 1 | 881731 | 4,5 | ||||
| 9 | 25-881733 | SEAL, M.A.P. Sensor | 1 | 4,5 | |||||
| 10 | 10-881646 | SCREW, (M6 x 20) | 1 | 4,5 | |||||
| 11 | 864996 | TUBE, Oil Fill | 1 | 4,5 | |||||
| 12 | 864997 | CAP, Oil Fill Tube | 1 | 4,5 | |||||
| 13 | NSS | NOT SOLD SEPARATE, SEAL-Oil Fill Cap | 1 | This Part is not sold separately 4,5 | |||||
| 14 | 10-881645 | BOLT, (M6 x 20), Oil Fill Tube | 1 | 4,5 | |||||
| 15 | 10-895234001 | SCREW, (M6 x 73) | 10 | 10-895234 | 4,5 | ||||
| 16 | 881691001 | FUEL RAIL, Fuel Injection | 1 | Use with Design-I Injector | |||||
| 16 | 881691002 | FUEL RAIL, Fuel Injection | 1 | Use with Design-II Injector 4,5 | |||||
| 17 | 22-802631 | VALVE AND CAP KIT, Fuel Pressure Service | 1 | 4,5 | |||||
| 18 | 802630T01 | REGULATOR KIT, Fuel Pressure | 1 | 881692001 | Use with Design-I Injector 4,5 | ||||
| 18 | 8M0046753 | REGULATOR KIT, Fuel Pressure | 1 | Use with Design-II Injector | |||||
| 19 | 25-881696 | SEAL KIT, Fuel Pressure Regulator | 1 | Use with Design-I Injector 4,5 | |||||
| 20 | 881693002 | INJECTOR, 3 hole pintle | 8 | 881693 | Design-I | ||||
| 20 | 881693001 | INJECTOR, 2 hole pintle | 8 | Design-II 4,5 | |||||
| 21 | 25-881694 | SEAL KIT | 1 | Use with Design-I Injector | |||||
| 21 | 25-881694001 | SEAL KIT | 1 | Use with Design-II Injector 4,5 | |||||
| 22 | 881695001 | RETAINER KIT, Fuel Injector | 1 | 881695 | 4,5 | ||||
| 23 | 16-881968001 | STUD, Fuel Injection Rail | 2 | 16-881968 | 4,5 | ||||
| 24 | 84-889503 | HARNESS ASSEMBLY, Fuel Injection Wiring | 1 | 4,5 | |||||
| 25 | 16-802561 | STUD, Throttle Body | 3 | 4,5 | |||||
| 26 | 22-8623601 | PLUG, Fuel Rail Outlet | 1 | Use with Design-I Injector | |||||
| 27 | 881725 | PLATE, Block Off | 1 | This Part is No Longer Available (Digital Throttle Shift) | |||||
| 28 | 27-863285 | GASKET | 1 | (Digital Throttle Shift) | |||||
| 29 | 10-898101392 | SCREW, (M8 x 30) | 2 | 10-881586 | (Digital Throttle Shift) |
