496 Mag HO Model - Serial 0W060000 Thru 0W309999 - Seawater Pump

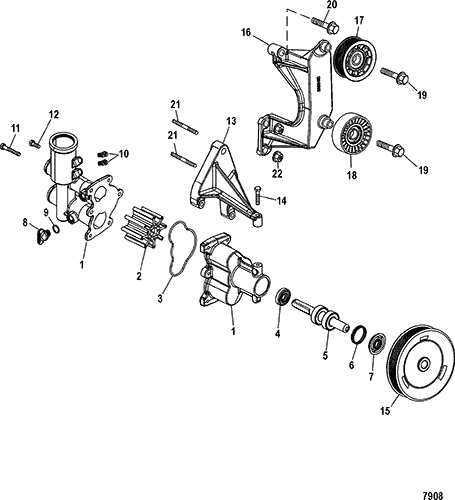

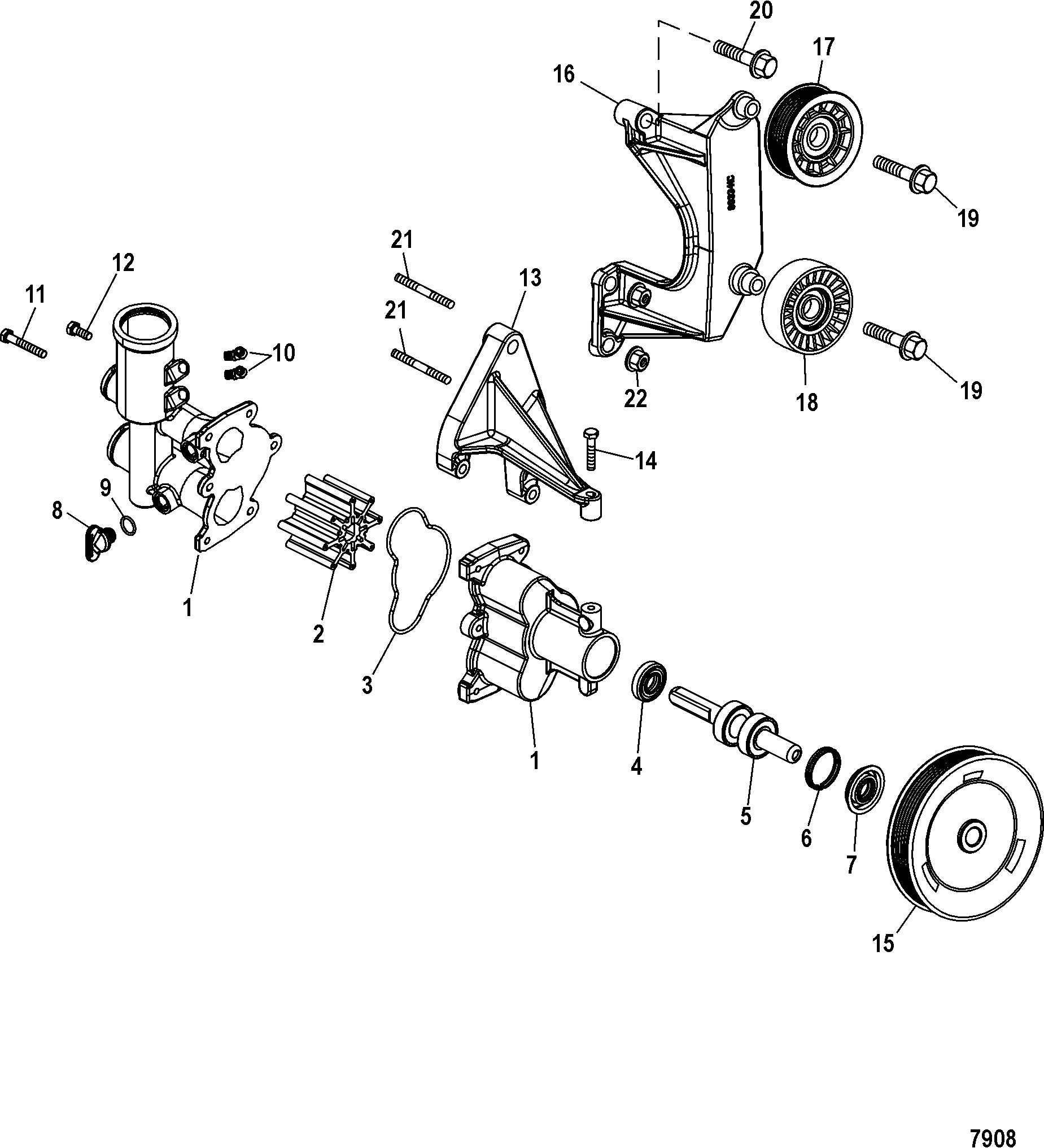

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Block, Camshaft and Pistons
- Block, Crankshaft, Oil Pump and Front Cover
- Cool Fuel System
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components
- Cylinder Head
- Drive Lube Reservoir Assembly
- Engine Cover
- Engine Mounts
- Exhaust Manifold, Elbow and Riser
- Flywheel Housing
- Fuel Module Components
- Gasket Set Components (27-883231A1), Engine
- Gasket Set Components (27-889924A02), Overhaul
- Intake Manifold
- Lifting Brackets and Wiring Harness
- Mercathode Kit
- Oil Pan and Drain System
- PCM and Bracket
- Power Steering
- Remote Oil System
- Seawater Pump
- Shift Bracket (Digital Throttle and Shift)
- Shift Bracket, Mechanical Shift
- Smart Craft Sensor and Harnesses
- Starter and Alternator
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Trim Pump and Motor Components
- Trim Pump Assembly (Complete)
- Water Drain System
| Ref. | OEM Part # | SEI # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 46-862914T12 | 625-4101 | PUMP ASSEMBLY, Sea Water, Complete | 1 | 46-862914T05 | ||||
| 2 | 47-8M0104229 | 676-9-45310 | 700-89700 | IMPELLER | 1 | ||||
| 3 | 25-841807 | O-RING, (3.500 x .103) | 1 | ||||||
| 4 | 26-8M2001645 | SEAL, Oil | 1 | 26-862037 | |||||
| 5 | 8M0050018 | DRIVESHAFT ASSEMBLY, Impeller | 1 | 862235A1 | |||||
| 6 | 862039 | TOLERANCE RING | 1 | ||||||
| 7 | 26-862040 | SEAL, Lip | 1 | ||||||
| 8 | 22-806608A02 | 700-13992 | PLUG KIT, (.500-13) Royal Blue | 2 | 22-806608A1 | ||||
| 9 | 25-32509 | O-RING, (.489 x .070) | 2 | 2,3 | |||||
| 10 | 22-865288 | FITTING, Gray (90 Degree) , Gray | 1 | ||||||
| 10 | 22-865289 | FITTING, Orange (90 Degree), Orange | 1 | ||||||
| 11 | 10-4000328 | SCREW, (M6 x 16) | 4 | ||||||
| 12 | 10-4000333 | 602-98-206-02 | SCREW, (M6 x 40) | 2 | |||||
| 13 | 863859T | BRACKET, Sea Water Pump | 1 | ||||||
| 14 | 10-4000331 | SCREW, (M6 x 30) | 1 | ||||||
| 15 | 862351T | PULLEY | 1 | ||||||
| 16 | 863861T | BRACKET, Idler Pulley | 1 | No longer made, limited availability | |||||
| 17 | 865444T | PULLEY, (3.50 Inch Diameter), Idler | 1 | Grooved | |||||
| 18 | 8M6500024 | PULLEY, Idler | 1 | 865598 | Non-Grooved | ||||
| 19 | 10-4010816 | SCREW, (M10 x 16) Hex Flange - Stainless Steel | 2 | ||||||
| 20 | 10-4010845 | SCREW, (M10 x 45) Hex Flange - Stainless Steel | 1 | ||||||
| 21 | 16-854309 | STUD, (M10 x 76) | 2 | ||||||
| 22 | 11-826292 | NUT, (M10) Brass/Nickel Plated | 2 |
