502 Mag Bravo (Gen 5) GM V-8 1992-1993 - Serial 0D824589 Thru 0F114528 - Fuel Pump And Fuel Filter

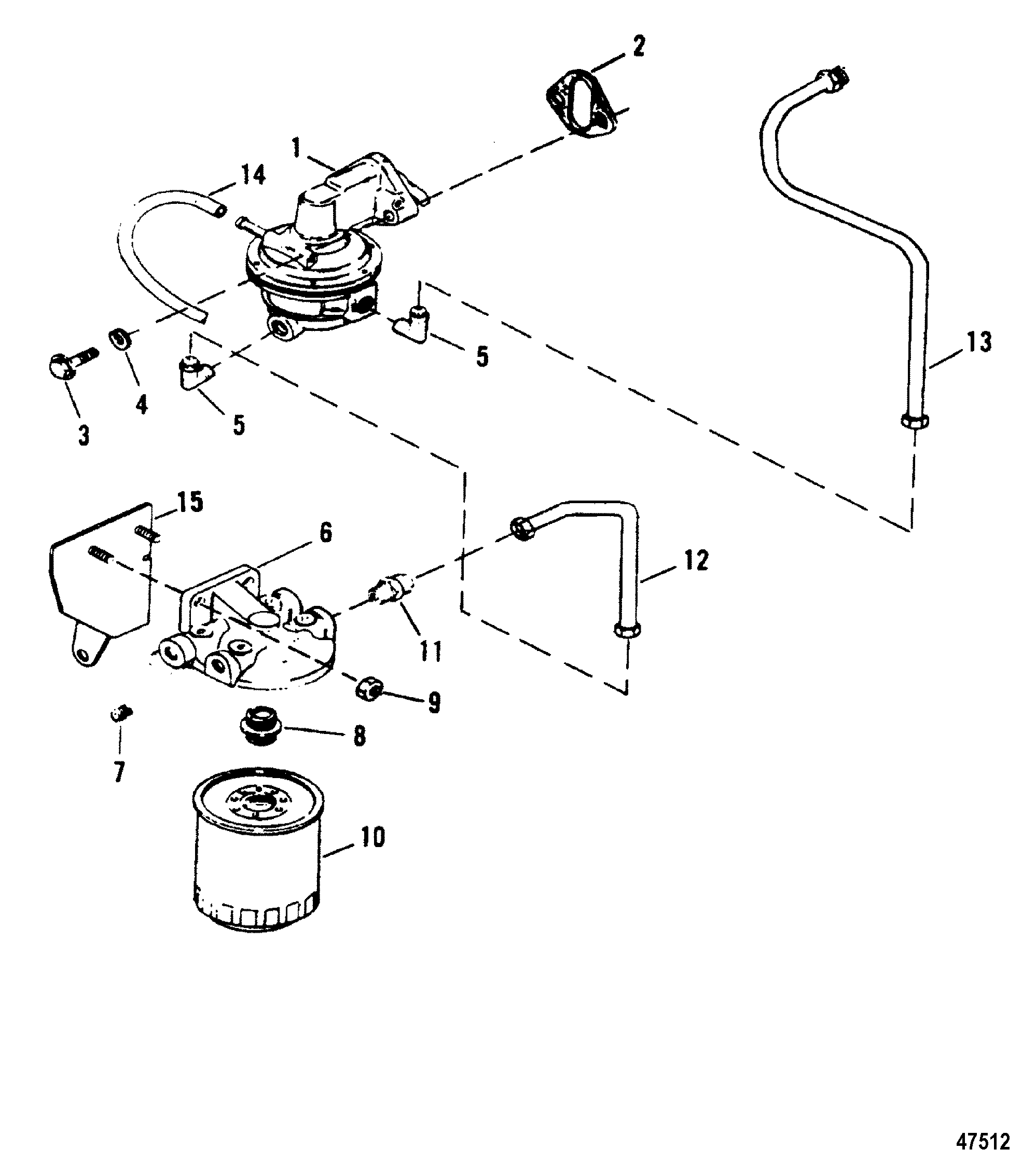

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Mando) AC155603
- Alternator (Prestolite)
- Audio Warning System
- Carburetor (Weber)
- Carburetor And Linkage
- Crankshaft, Pistons, And Connection Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhasut Elbow
- Exhaust Plate
- Flame Arrestor
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor 2, 7-8" Diameter End Cap
- Starter Motor 3, 1-4" Diameter End Cap
- Thermostat Housing(Standard Cooling)
- Wiring Harness (Engine)
- Wiring Harness And Electrical Components (Distributor)
- Wiring Harness And Electrical Components (Exhaust Below)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 861677T | PUMP ASSEMBLY | 1 | 818383T | |||||
| 2 | 27-34213 | 676-9-61041 | 700-31360 | GASKET | 1 | ||||
| 3 | 10-34354 | SCREW, (.375-16 x 1.50) | 2 | ||||||
| 4 | 13-35048 | LOCKWASHER, (.375) | 2 | ||||||
| 5 | 22-43276 | ELBOW, (90 Degree) (90DEGREES) | 2 | ||||||
| 6 | 89876A3 | BASE ASSEMBLY, Fuel Filter/Water Seperator | 1 | ||||||
| 7 | 22-36382 | 700-21887 | FITTING, (.250-18 x .62) Brass | 2 | |||||
| 8 | 22-816133 | FITTING | 1 | 22-8161331 | |||||
| 9 | 11-29250 | NUT, (.312-24) | 2 | ||||||
| 10 | 35-802893Q01 | FILTER, Fuel/Water Separator | 1 | 35-807172 | |||||
| 11 | 22-42897 | FITTING (STRAIGHT) | 1 | No longer made, limited availability | |||||
| 12 | 32-805637T | LINE, Fuel, FUEL FILTER TO FUEL PUMP | 1 | 32-818385T | |||||
| 13 | 32-821499T | LINE, Fuel, FUEL PUMP TO CARBURETOR | 1 | ||||||
| 14 | 32-7381567 | HOSE, (34.00 Inches Bulk), FUEL PUMP TO CARBURETOR | 1 | 32-7381563 | |||||
| 15 | 805556T1 | BRACKET | 1 | This Part is No Longer Available |
