502 Mag Bravo (Gen 5) GM V-8 1992-1993 - Serial 0D824589 Thru 0F114528 - Wiring Harness And Electrical Components (Distributor)

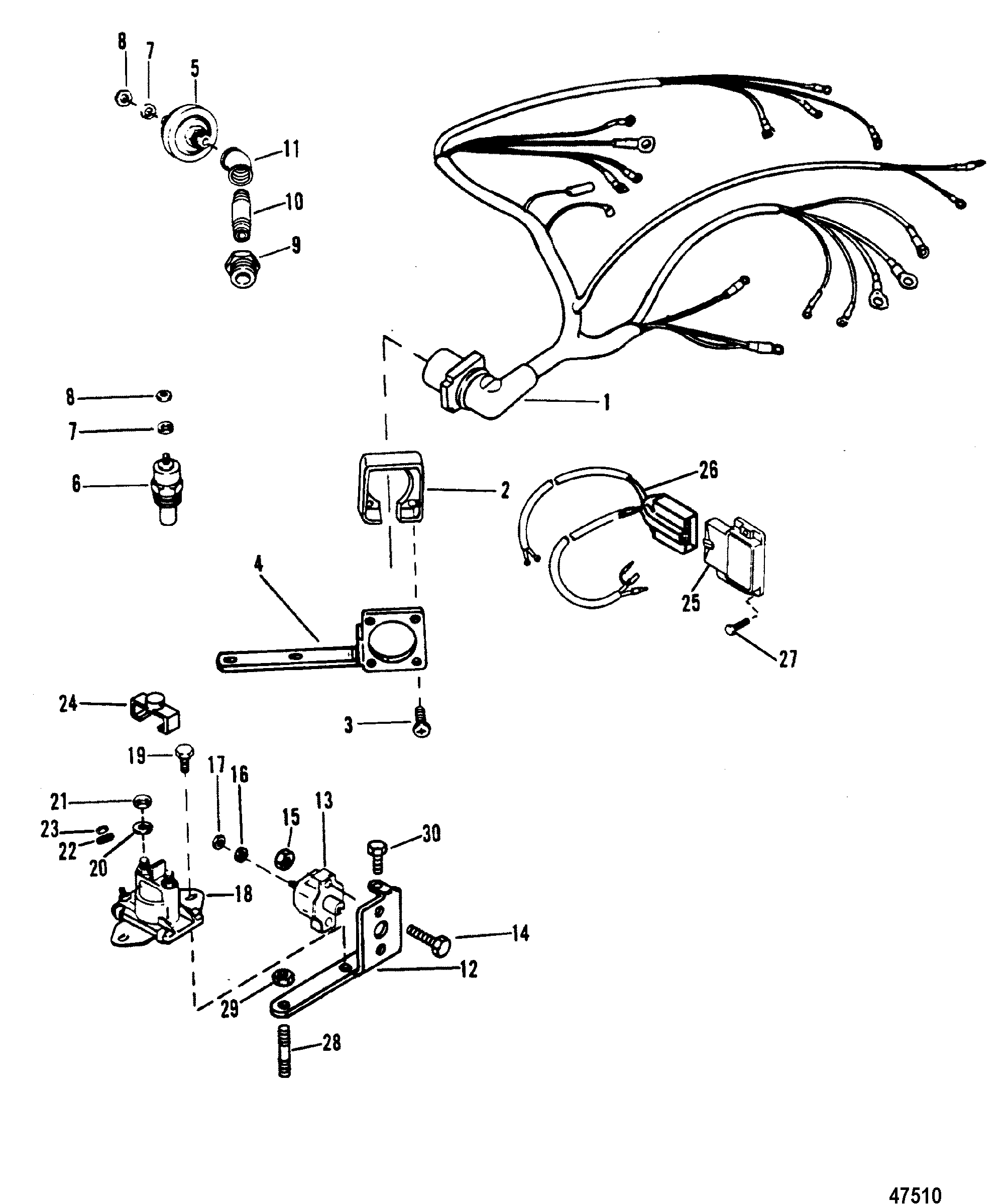

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Mando) AC155603
- Alternator (Prestolite)
- Audio Warning System
- Carburetor (Weber)
- Carburetor And Linkage
- Crankshaft, Pistons, And Connection Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhasut Elbow
- Exhaust Plate
- Flame Arrestor
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor 2, 7-8" Diameter End Cap
- Starter Motor 3, 1-4" Diameter End Cap
- Thermostat Housing(Standard Cooling)
- Wiring Harness (Engine)
- Wiring Harness And Electrical Components (Distributor)
- Wiring Harness And Electrical Components (Exhaust Below)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 84-806217A10 | HARNESS ASSEMBLY | 1 | 84-805369A8 | |||||
| 2 | 26079A2 | PLATE KIT, Wire Harness Mount | 1 | ||||||
| 3 | 10-15001 | SCREW, (#8-16 x .875) | 4 | ||||||
| 4 | 805468T | BRACKET | 1 | This Part is No Longer Available | |||||
| 5 | 8M0068784 | SENDER ASSEMBLY, Oil Pressure | 1 | 815425 | |||||
| 5 | 37293T | SENDER ASSEMBLY, Oil Pressure (DUAL) | OPT. | 37293 | |||||
| 6 | 806490T | SENDER ASSEMBLY, Water Temperature | 1 | 97257A1 | |||||
| 6 | 49734 | SENDER ASSEMBLY, Water Temperature (DUAL) | OPT. | 49734A1 | |||||
| 7 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 2 | ||||||
| 8 | 11-68219 | NUT, (#10-32) Stainless Steel | 2 | ||||||
| 9 | 22-48556 | BUSHING , Reducer (.250 To .125) | 1 | ||||||
| 10 | 22-885153 | NIPPLE | 1 | 22-42554 | |||||
| 11 | 22-46932 | ELBOW | 1 | This Part is No Longer Available | |||||
| 12 | 899719T01 | BRACKET, Electrical | 1 | 805368T | |||||
| 13 | 88-11178A01 | BREAKER, Circuit - 50 Ampere (50AMP) | 1 | 88-11178 | This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work. | ||||
| 14 | 10-45862 | SCREW, (#10-32 x .875) (7/8") | 2 | ||||||
| 15 | 11-61356 | NUT, (#10-32) Reduced Hex | 2 | ||||||
| 16 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 2 | ||||||
| 17 | 11-68219 | NUT, (#10-32) Stainless Steel | 2 | ||||||
| 18 | 89-96158T | SOLENOID, Starter | 1 | 89-96158 | |||||
| 19 | 10-805564 | SCREW, (.250-20 x .750) | 2 | ||||||
| 20 | 13-26992 | LOCKWASHER, (.250) Stainless Steel (1/4) | 2 | ||||||
| 21 | 11-94330 | NUT, (.250-20) Brass (1/4-20) | 2 | ||||||
| 22 | 13-26996 | LOCKWASHER, (#10) Stainless Steel (#10) | 2 | ||||||
| 23 | 11-68219 | NUT, (#10-32) Stainless Steel (10-32) | 2 | ||||||
| 24 | 85-97861 | INSULATOR | 1 | ||||||
| 25 | 805361T5 | IGNITION MODULE | 1 | ||||||
| 26 | 84-805363A2 | HARNESS ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 27 | 10-12110 | SCREW, (#6-32 x .750) | 2 | ||||||
| 28 | 16-805459 | STUD, Mercathode Mounting | 1 | ||||||
| 29 | 11-46438 | NUT, (#10-32) | 1 | ||||||
| 30 | 10-805565 | SCREW, (#10-32 x .750) | 1 |
