350 Mag MPI Alpha-Bravo - Serial 0M600000 Thru 0W059999 - Electrical Components

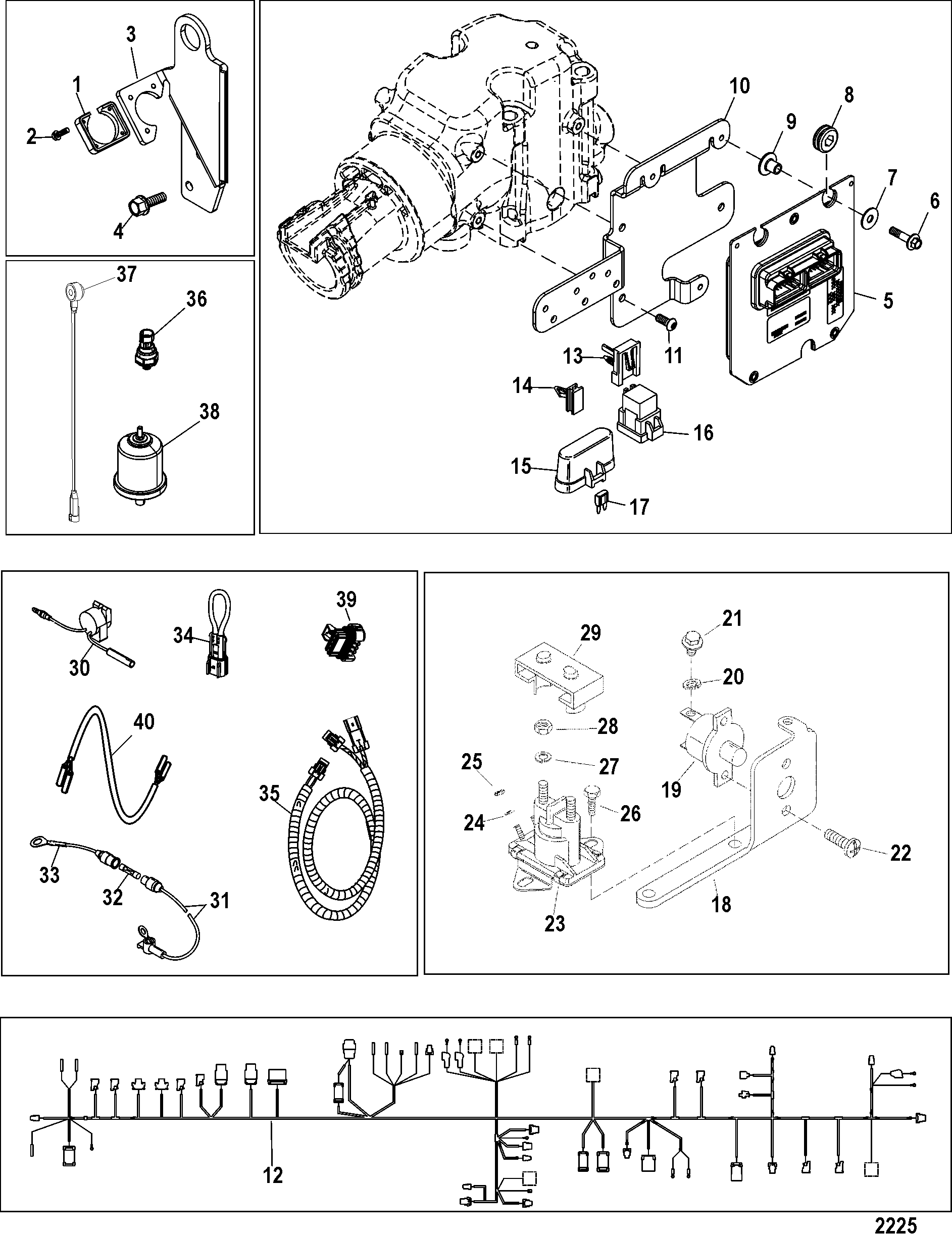

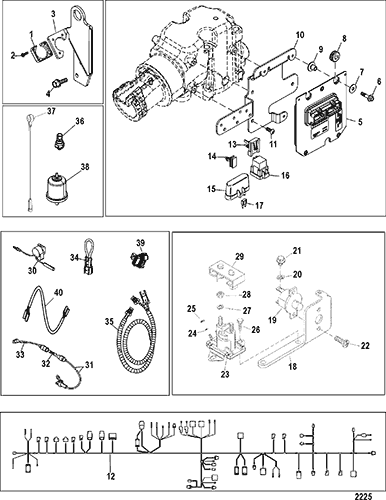

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling System
- Cylinder Block (Camshaft and Crankshaft)
- Cylinder Block and Flywheel Housing
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust System Components
- Front Cover and Circulating Pump
- Fuel Filter (Alpha)
- Fuel Filter and Boost Pump (BRAVO)
- Fuel Pump and Fuel Cooler
- Gear Lube Monitor
- Intake Manifold and Fuel Rail
- Jackshaft Components
- Mercathode Components
- Oil Pan and Oil Pump
- Piston and Connecting Rods
- Power Steering Components
- Remote Oil Filter Assembly
- Sea Water Pump Assembly
- Shift Bracket (ALPHA)(0M659999 and Below)
- Shift Bracket (ALPHA)(0M660000 and Up)
- Shift Bracket (BRAVO)(0M659999 and Below)
- Shift Bracket (BRAVO)(0M660000 and Up)
- Standard Cooling System (7 Point Drain)
- Standard Cooling System (Single and 3 Point Drain)
- Starter Motor
- Thermostat and Housing (7 Point Drain)
- Thermostat and Housing (Single and 3 Point Drain)
- Throttle Body (Mechanical Throttle and Shift)
- Water Distribution Housing
- Water Drain (Air Manifold and Pump)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | SEI # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 26079A2 | PLATE KIT, Wire Harness Mount | 1 | ||||||
| 2 | 10-15001 | SCREW, (#8-16 x .875) | 4 | ||||||
| 3 | 865480T | BRACKET, Harness Mounting/Lifting Eye | 1 | 863440T | |||||
| 4 | 10-98261 | SCREW, (.375-16 x .750) | 2 | ||||||
| 5 | 865834T03 | ECM, Engine Control Module | 1 | 864271T06 | (5.0L MPI Alpha)(Standard Cooling) SN# 0W029410 & Below | ||||
| 5 | 865834T03 | ECM, Engine Control Module | 1 | 865834T02 | (5.0L MPI Alpha)(Standard Cooling) SN# 0W029411 & Up | ||||
| 5 | 865002T03 | ECM, Engine Control Module | 1 | (5.0L MPI Alpha)(Closed Cooling) SN# 0W029410 & Below | |||||
| 5 | 865835T02 | ECM, Engine Control Module | 1 | (5.0L MPI Alpha)(Closed Cooling) SN# 0W029411 & Up | |||||
| 5 | 864376T06 | ECM, Engine Control Module | 1 | 864376T05 | (5.0L MPI Bravo)(Standard Cooling) SN# 0W029410 & Below | ||||
| 5 | 865836T02 | ECM, Engine Control Module | 1 | 865836T01 | (5.0L MPI Bravo)(Standard Cooling) SN# 0W029411 & Up | ||||
| 5 | 865003T02 | ECM, Engine Control Module | 1 | (5.0L MPI Bravo)(Closed Cooling) SN# 0W029410 & Below | |||||
| 5 | 865837T02 | ECM, Engine Control Module | 1 | 865837T01 | (5.0L MPI Bravo)(Closed Cooling) SN# 0W029411 & Up | ||||
| 5 | 865838T03 | ECM, Engine Control Module | 1 | 864272T06 | (350 MAG MPI Alpha)(Standard Cooling) SN# 0W029410 & Below | ||||
| 5 | 865838T03 | ECM, Engine Control Module | 1 | 865838T02 | (350 MAG MPI Alpha)(Standard Cooling) SN# 0W029411 & Up | ||||
| 5 | 865839T02 | ECM, Engine Control Module | 1 | 865004T03 | (350 MAG MPI Alpha)(Closed Cooling) SN# 0W029410 & Below | ||||
| 5 | 865839T02 | ECM, Engine Control Module | 1 | (350 MAG MPI Alpha)(Closed Cooling) SN# 0W029411 & Up | |||||
| 5 | 864377T06 | ECM, Engine Control Module | 1 | 864377T05 | (350 MAG MPI Bravo)(Standard Cooling) SN# 0W029410 & Below | ||||
| 5 | 865840T02 | ECM, Engine Control Module | 1 | 865840T01 | (350 MAG MPI Bravo)(Standard Cooling) SN# 0W029411 & Up | ||||
| 5 | 865005T03 | ECM, Engine Control Module | 1 | 865005T02 | (350 MAG MPI Bravo)(Closed Cooling) SN# 0W029410 & Below | ||||
| 5 | 865841T02 | ECM, Engine Control Module | 1 | 865841T01 | (350 MAG MPI Bravo)(Closed Cooling) SN# 0W029411 & Up | ||||
| 5 | 864273T07 | ECM, Engine Control Module | 1 | 864273T06 | (MX6.2L MPI)(Standard Cooling) SN# 0W029410 & Below | ||||
| 5 | 865845T02 | ECM, Engine Control Module | 1 | 865845T01 | (MX6.2L MPI)(Standard Cooling) SN# 0W029411 & Up | ||||
| 5 | 865008T04 | ECM, Engine Control Module | 1 | 865008T03 | (MX6.2L MPI)(Closed Cooling) SN# 0W029410 & Below | ||||
| 5 | 865846T02 | ECM, Engine Control Module | 1 | 865846T01 | (MX6.2L MPI)(Closed Cooling) SN# 0W029411 & Up | ||||
| 6 | 10-82130025 | SCREW, (M6 x 25) | 3 | ||||||
| 7 | 12-65567 | WASHER, (.265 x .750 x .048) Stainless Steel | 3 | ||||||
| 8 | 25-834985 | GROMMET | 3 | ||||||
| 9 | 23-856954 | BUSHING | 3 | ||||||
| 10 | 863424T | BRACKET, ECM Mount | 1 | ||||||
| 11 | 10-860008 | SCREW, (.250-20 x .625) Torx | 3 | ||||||
| 12 | 84-865454A01 | HARNESS ASSEMBLY | 1 | 84-863433T2 | (Alpha and Bravo) SN# 0M999999 & Below | ||||
| 12 | 84-865454A01 | HARNESS ASSEMBLY | 1 | (Alpha) SN# 0W000000 & Up | |||||
| 12 | 84-865454T02 | HARNESS ASSEMBLY | 1 | (Bravo) SN# 0W000000 & Up | |||||
| 13 | 86-865205 | CLIP, Relay Mounting | 2 | 54-804351 | |||||
| 14 | 54-804352 | CLIP, Fuse Block Mounting | 1 | ||||||
| 15 | 883562 | COVER, Fuse | 1 | ||||||
| 16 | 86-865202T | RELAY | 2 | 807057T | |||||
| 17 | 88-832969T20 | FUSE, Mini - Yellow - 20 Ampere | 3 | 88-83296920 | |||||
| 18 | 899719T01 | BRACKET, Electrical, Electrical Mounting | 1 | 805368T | |||||
| 19 | 88-11178A01 | BREAKER, Circuit - 50 Ampere | 1 | 88-806950 | |||||
| 20 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 2 | ||||||
| 21 | 10-68513 | SCREW, (#10-32 x .375) Stainless Steel | 2 | ||||||
| 22 | 10-57583 | SCREW, (#8-32 x .375) | 2 | ||||||
| 23 | 89-96158T | 620-3387M | 676-9-15112 | 700-72400 | 602-SW101 | SOLENOID, Starter | 1 | ||
| 24 | 13-26995 | LOCKWASHER, (#8) Stainless Steel | 2 | ||||||
| 25 | 11-26419 | NUT, (#8-32) Brass | 2 | ||||||
| 26 | 10-805564 | SCREW, (.250-20 x .750) | 1 | ||||||
| 27 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 2 | ||||||
| 28 | 11-94330s | NUT, (.250-20) Brass | 2 | ||||||
| 29 | 85-97861 | INSULATOR, Starter Solenoid | 1 | ||||||
| 30 | 816492A15 | ALARM KIT | 1 | ||||||
| 31 | 84-95084A9 | CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip | 1 | (Bravo) | |||||
| 32 | 88-79091 | FUSE, 20 Ampere | 1 | (Bravo) | |||||
| 33 | 84-95084A10 | CABLE ASSEMBLY, (5.00 Inches) Red | 1 | (Bravo) | |||||
| 34 | 864337A1 | CONNECTOR, Black, Jumper | 1 | (Black Wire) | |||||
| 35 | 84-862262A2 | HARNESS ASSEMBLY | 1 | ( Boost Pump ) | |||||
| 36 | 8M6000623 | SENSOR, Pressure | 1 | 8818793 | ( Power Steering Cooler ) | ||||
| 36 | 881879T11 | SENSOR, (0 - 100 PSI), Pressure | 1 | 881879A6 | ( Oil ) | ||||
| 37 | 878187 | SENSOR ASSEMBLY, Knock | 1 | ||||||
| 38 | 8M0068784 | SENDER ASSEMBLY, Oil | 1 | 87-815425T | |||||
| 38 | 37293T | SENDER ASSEMBLY, Oil | 1 | (Dual Station) | |||||
| 39 | 8M3000055 | CAP, Weather Proof (10 Pin Transom Harness) | 1 | 891735 | |||||
| 40 | 84-812733A2 | HARNESS ASSEMBLY, Extension (Lube Bottle) | 1 |
