350 Mag MPI Alpha-Bravo - Serial 0M600000 Thru 0W059999 - Fuel Filter and Boost Pump (BRAVO)

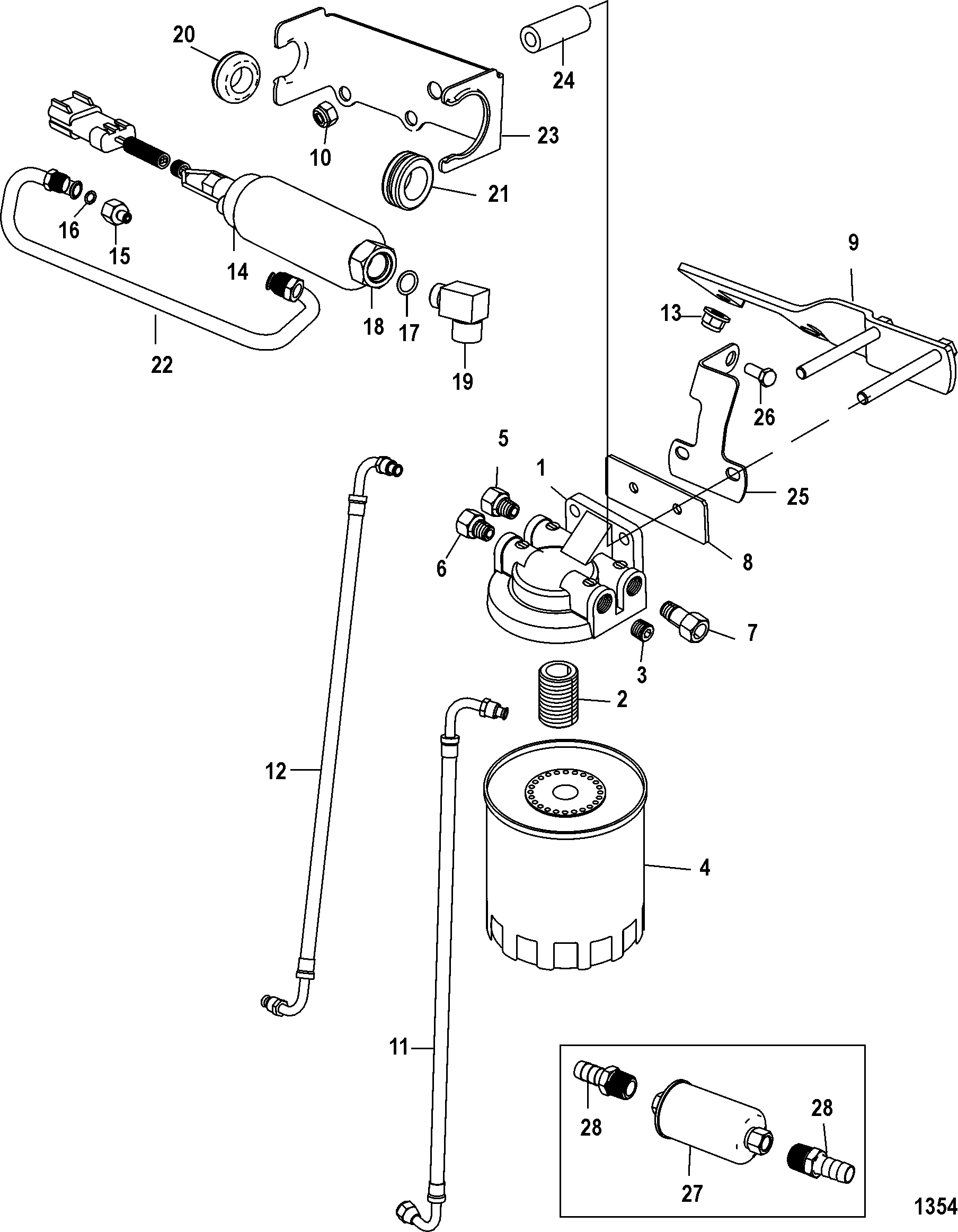

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling System
- Cylinder Block (Camshaft and Crankshaft)
- Cylinder Block and Flywheel Housing
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust System Components
- Front Cover and Circulating Pump
- Fuel Filter (Alpha)
- Fuel Filter and Boost Pump (BRAVO)
- Fuel Pump and Fuel Cooler
- Gear Lube Monitor
- Intake Manifold and Fuel Rail
- Jackshaft Components
- Mercathode Components
- Oil Pan and Oil Pump
- Piston and Connecting Rods
- Power Steering Components
- Remote Oil Filter Assembly
- Sea Water Pump Assembly
- Shift Bracket (ALPHA)(0M659999 and Below)
- Shift Bracket (ALPHA)(0M660000 and Up)
- Shift Bracket (BRAVO)(0M659999 and Below)
- Shift Bracket (BRAVO)(0M660000 and Up)
- Standard Cooling System (7 Point Drain)
- Standard Cooling System (Single and 3 Point Drain)
- Starter Motor
- Thermostat and Housing (7 Point Drain)
- Thermostat and Housing (Single and 3 Point Drain)
- Throttle Body (Mechanical Throttle and Shift)
- Water Distribution Housing
- Water Drain (Air Manifold and Pump)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 89876A3 | BASE ASSEMBLY, Fuel Filter, Water Seperator | 1 | ||||||
| 2 | 22-816133 | FITTING | 1 | ||||||
| 3 | 22-32561 | PLUG, Pipe - Allen Head (.250-18) | 1 | ||||||
| 4 | 35-802893Q01 | FILTER, Fuel/Water Separating - Quicksilver Brand | 1 | 35-802893Q | (Quicksilver Brand) | ||||
| 4 | 35-802893T | FILTER, Fuel/Water Separating - Mercury Brand | 1 | (Mercury Brand) | |||||
| 5 | 22-33821 | CONNECTOR | 1 | ||||||
| 6 | 22-808003 | CONNECTOR | 1 | ||||||
| 7 | 22-33821 | CONNECTOR, Inlet | 1 | ||||||
| 8 | 88641 | INSULATOR, Back | 1 | ||||||
| 9 | 864484 | BRACKET | 1 | ||||||
| 10 | 11-82670811 | NUT, (.312-24) | 2 | ||||||
| 11 | 32-8M0046000 | LINE, Fuel, Fuel Pump To Filter | 1 | 32-864152 | |||||
| 12 | 32-8M0045997 | HOSE ASSEMBLY, Fuel Regulator To Filter | 1 | 32-807954T | |||||
| 13 | 11-860069 | NUT, (.375-16) | 2 | ||||||
| 14 | 861155A3 | 676-9-35432 | PUMP ASSEMBLY, Fuel, Fuel, Boost | 1 | |||||
| 15 | 22-805027 | FITTING, Male To Inverted Flare (.375) | 1 | ||||||
| 16 | 25-805063 | O-RING, (.301 x .070) | 1 | ||||||
| 17 | 25-805062 | O-RING, (.530 x .082) | 1 | ||||||
| 18 | 22-805026A1 | FITTING, Fuel Inlet | 1 | ||||||
| 19 | 22-863703 | FITTING, (.625 x .250), Fuel Adaptor | 1 | ||||||
| 20 | 25-817491 | GROMMET, (.56 Inside Diameter) | 1 | ||||||
| 21 | 25-13467 | GROMMET, (.88 Inside Diameter) | 1 | ||||||
| 22 | 32-863664 | LINE, Fuel, Boost Pump To Fuel Fitler | 1 | 1 | |||||
| 23 | 863679 | BRACKET, Fuel Boost Pump | 1 | 1 | |||||
| 24 | 23-864402 | SPACER | 2 | ||||||
| 25 | 864447 | BRACKET, Fuel Filter Brace | 1 | ||||||
| 26 | 10-34353 | 525-10-34353 | SCREW, (.375-16 x 1.00) | 1 | |||||
| 27 | 35-864572 | 676-9-37826 | FILTER, Fuel, Inline | 1 | |||||
| 28 | 22-47841 | FITTING, (.375-18 x .500 ) | 2 |
