350 Mag MPI Alpha-Bravo - Serial 0W060000 Thru 0W309999 - Cylinder Head and Rocker Cover

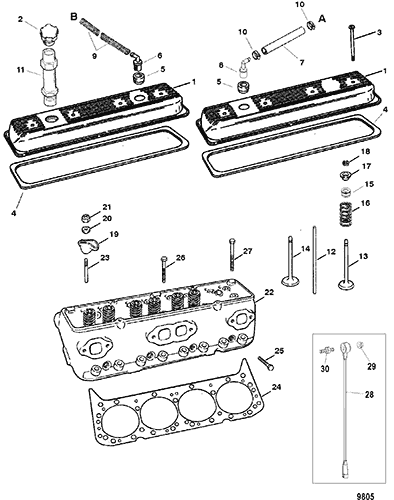

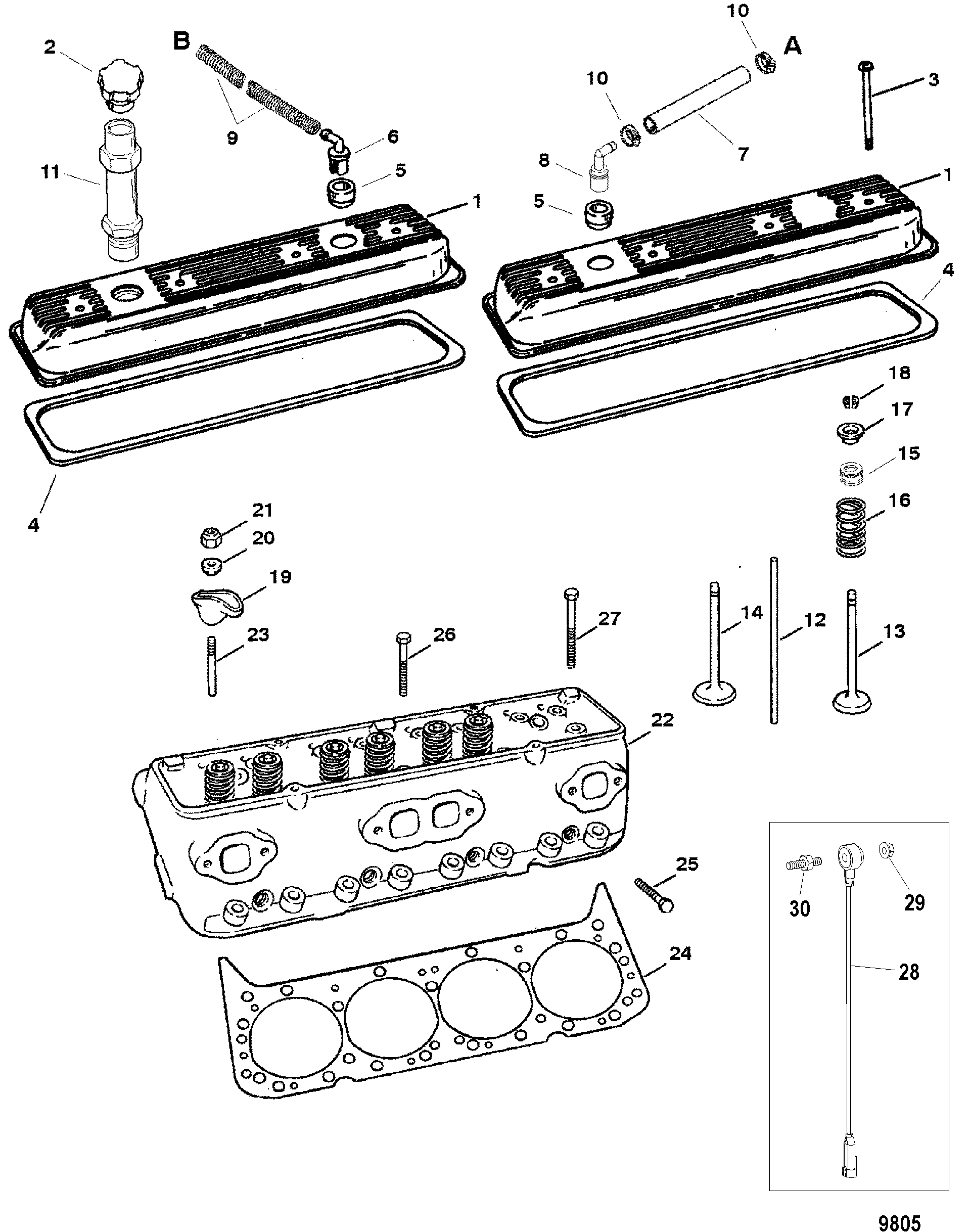

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling System (ALPHA)
- Closed Cooling System (BRAVO)
- Cylinder Block (Camshaft and Crankshaft)
- Cylinder Block (Flywheel Housing and Rear Main Seal)
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust System Components
- Front Cover and Circulating Pump
- Fuel Filter (Alpha)
- Fuel Supply Module (Alpha)
- Fuel Supply Module, Bravo
- Gear Lube Monitor
- Intake Manifold and Fuel Rail
- Jackshaft Components
- Mercathode Components
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Power Steering Components
- Remote Oil Filter Assembly
- Sea Water Pump Assembly
- Shift Bracket (Alpha)
- Shift Bracket (Bravo)
- Standard Cooling System (ALPHA)(7 Point Drain)
- Standard Cooling System (ALPHA)(Single and 3 Point Drain)
- Standard Cooling System (BRAVO) Single and 3 Point Drain
- Standard Cooling System (BRAVO)(7 Point Drain)
- Starter Motor
- Thermostat and Housing (7 Point Drain)
- Thermostat and Housing (Single and 3 Point Drain)
- Throttle Body (Mechanical Throttle and Shift)
- Water Distribution Housing
- Water Drain (Air Manifold and Pump)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 809995 | COVER, Rocker, With Oil Fill Hole | 1 | ||||||
| 1 | 809996 | COVER, Rocker, Without Oil Fill Hole | 1 | ||||||
| 2 | 36-18710002 | CAP, Oil Fill | 1 | 36-187101 | |||||
| 3 | 10-17344 | SCREW | 8 | ||||||
| 4 | 27-17467 | 676-9-61305 | 700-30357 | GASKET, Rocker Cover | 2 | ||||
| 5 | 25-52188 | GROMMET | 2 | ||||||
| 6 | 97850T | ELBOW, 90 Degree, 90 Degrees | 1 | 97850 | |||||
| 7 | 32-8M0062321 | HOSE, (33.00 Inches Bulk) | 1 | 32-86197763 | |||||
| 8 | 8M2017060 | VALVE, PCV | 1 | 21-861476 | |||||
| 9 | 32-1589424 | HOSE, (16.50 Inches Bulk), Breather | 1 | ||||||
| 10 | 54-815504105 | CLAMP, Worm Gear (11-18 mm), Hose | 2 | ||||||
| 11 | 807688T | TUBE, Oil Fill | 1 | ||||||
| 12 | 173391 | PUSH ROD | 16 | ||||||
| 13 | 8243171 | VALVE, Exhaust | 8 | (Standard) | |||||
| 13 | 8243181 | VALVE, Exhaust | AR | (.030 Oversize) | |||||
| 14 | 802555 | VALVE, Intake | 8 | (5.0L Standard) | |||||
| 14 | 809992 | VALVE, Intake | 8 | (5.7L Standard) | |||||
| 15 | 26-976641 | SEAL, Intake | 8 | ||||||
| 15 | 26-804507 | SEAL, Exhaust | 8 | ||||||
| 16 | 24-483471 | SPRING | 16 | ||||||
| 17 | 483481 | CAP | 16 | ||||||
| 18 | 28-547971 | KEY | 32 | ||||||
| 19 | 35329 | ARM KIT, Rocker | 16 | ||||||
| 20 | 35331 | BALL, Rocker Arm | 16 | ||||||
| 21 | 11-34516 | NUT | 16 | ||||||
| 22 | 938-802556T | CYLINDER HEAD ASSEMBLY, Cylinder | 2 | 938-802556 | (5.0L) | ||||
| 22 | 938-803860T | CYLINDER HEAD ASSEMBLY, Cylinder | 2 | (5.7L) | |||||
| 23 | 16-34522 | STUD | AR | (.003 Oversized) | |||||
| 23 | 16-34521 | STUD | AR | This Part is No Longer Available (.013 Oversized) | |||||
| 24 | 75611001 | GASKET | 2 | 27-756111 | |||||
| 25 | 10-11968 | SCREW, (.437-14 x 1.750) | 16 | ||||||
| 26 | 10-119671 | SCREW, (.437-14 x 3.00) | 4 | ||||||
| 27 | 10-11966 | SCREW, (.437-14 x 3.750) | 14 | ||||||
| 28 | 878187 | 676-9-33502 | SENSOR ASSEMBLY, Knock | 1 | |||||
| 29 | 11-82670912 | NUT, (.375-16) Stainless Steel | 11 | ||||||
| 30 | 16-863414 | STUD, Knock Sensor | 1 | ||||||
| - | 863660A2 | LONGBLOCK ASSEMBLY | 1 | (5.0L MPI) | |||||
| - | 863661A2 | LONGBLOCK ASSEMBLY | 1 | (350 MAG-MPI) | |||||
| - | 865108A02 | LONGBLOCK ASSEMBLY | 1 | (MX 6.2L-MPI) | |||||
| - | 27-861246A05 | 700-39016 | GASKET SET, Engine Overhaul | 1 | 27-861246A98 |
