350 Mag MPI Alpha-Bravo - Serial 0W060000 Thru 0W309999 - Exhaust Manifold and Elbow

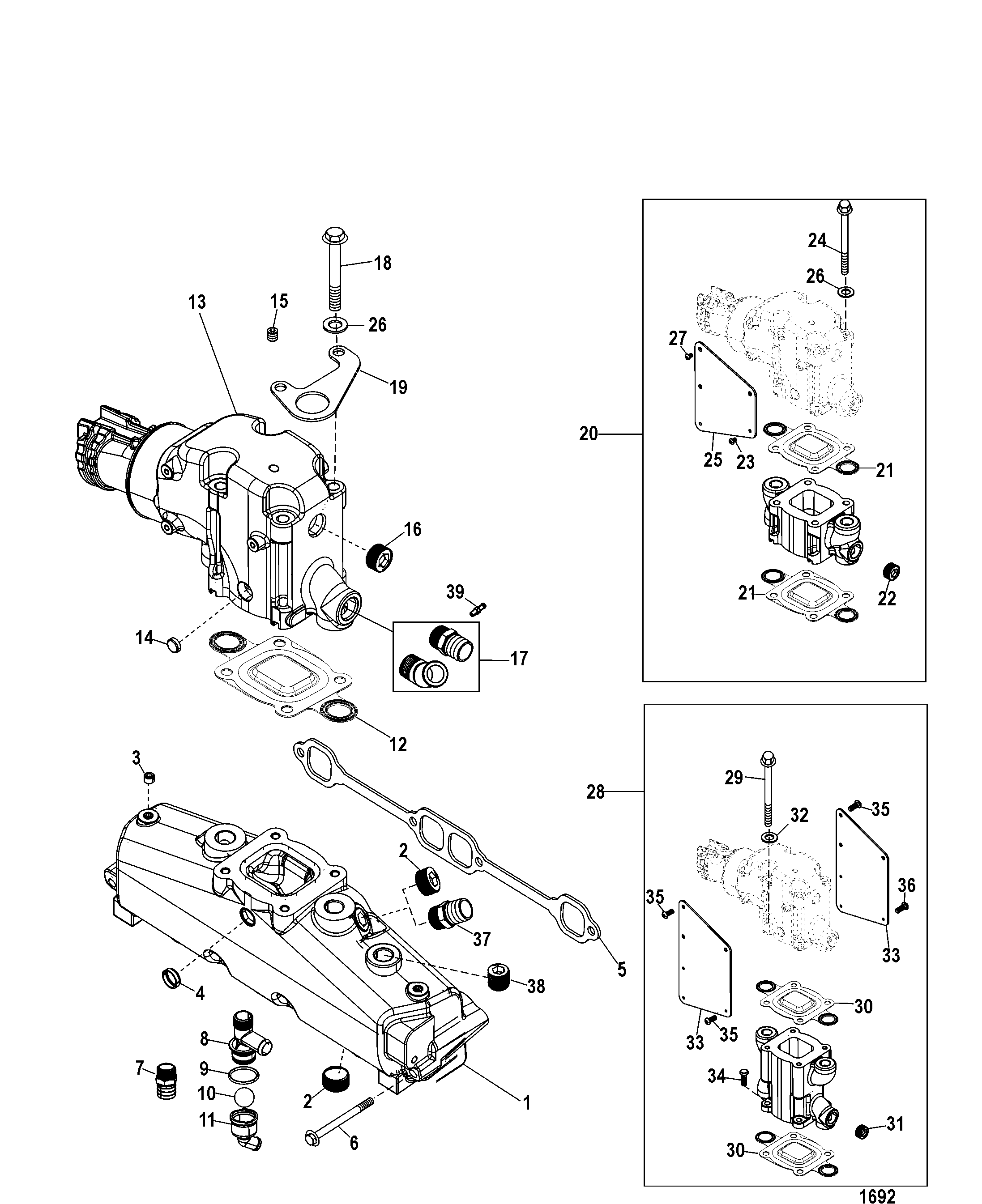

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling System (ALPHA)
- Closed Cooling System (BRAVO)
- Cylinder Block (Camshaft and Crankshaft)
- Cylinder Block (Flywheel Housing and Rear Main Seal)
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust System Components
- Front Cover and Circulating Pump
- Fuel Filter (Alpha)
- Fuel Supply Module (Alpha)
- Fuel Supply Module, Bravo
- Gear Lube Monitor
- Intake Manifold and Fuel Rail
- Jackshaft Components
- Mercathode Components
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Power Steering Components
- Remote Oil Filter Assembly
- Sea Water Pump Assembly
- Shift Bracket (Alpha)
- Shift Bracket (Bravo)
- Standard Cooling System (ALPHA)(7 Point Drain)
- Standard Cooling System (ALPHA)(Single and 3 Point Drain)
- Standard Cooling System (BRAVO) Single and 3 Point Drain
- Standard Cooling System (BRAVO)(7 Point Drain)
- Starter Motor
- Thermostat and Housing (7 Point Drain)
- Thermostat and Housing (Single and 3 Point Drain)
- Throttle Body (Mechanical Throttle and Shift)
- Water Distribution Housing
- Water Drain (Air Manifold and Pump)
| Ref. | OEM Part # | SEI # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 865735A02 | 700-51230 | MANIFOLD ASSEMBLY, Exhaust | 2 | 864308T01 | ||||
| 2 | 22-428611 | 602-98-102-57 | FITTING, Pipe - Brass (.750-14) | 4 | |||||
| 3 | 22-390721 | PLUG, Pipe (.125-27) Brass | 2 | ||||||
| 4 | 19-864689 | PLUG, Expansion, Expansion | 3 | ||||||
| 5 | 27-33395 | 676-9-61401 | 700-31100 | GASKET, Manifold | 2 | ||||
| 6 | 10-53728 | 700-21745 | SCREW, (.375-16 x 4.75) | 8 | |||||
| 7 | 22-863804 | FITTING, (.750-14) | 2 | (Closed Cooling) No longer made, limited availability | |||||
| 8 | 22-863786A1 | FITTING ASSEMBLY, Drain | 2 | (Standard Cooling) | |||||
| 9 | 25-864701 | O-RING, (1.112 x .103) | 1 | 25-47632 | |||||
| 10 | 30-863129 | BALL, Check | 1 | ||||||
| 11 | 862994T | FITTING | 1 | ||||||
| 12 | 27-864850A02 | 676-9-61429 | GASKET, Elbow, Resitrictor | 2 | 27-864850A1 | (Standard Cooling) | |||
| 12 | 27-864549A02 | GASKET, Elbow, Block Off | 2 | 27-864549A1 | (Closed Cooling) | ||||
| 13 | 864309T02 | ELBOW ASSEMBLY, Exhaust | 2 | 864309T01 | |||||
| 14 | 19-864689 | PLUG, Expansion, Expansion | 3 | ||||||
| 15 | 22-73379 | 700-22379 | PLUG, (.250-18) | 1 | (Early Models) | ||||
| 16 | 22-428611 | 602-98-102-57 | FITTING, Pipe - Brass (.750-14) | 2 | (Late Models) | ||||
| 17 | 22-863804 | FITTING, (.750-14) | 1 | No longer made, limited availability | |||||
| 17 | 22-865159 | FITTING, (45 Degree) | 1 | 22-92499T | |||||
| 18 | 10-43749 | 700-22381 | SCREW, (.375-16 x 5.750), Exhaust Elbow | 8 | |||||
| 19 | NA | NOT AVAILABLE, Bracket, Flush Attachment | 1 | ||||||
| 20 | 864306A3 | RISER EXTENSION KIT, 3 Inch Cold Riser | 1 | (Standard Cooling) SN# 0M614999 & Below | |||||
| 20 | 864929A1 | RISER EXTENSION KIT, 3 Inch Warm Riser | 1 | (Standard Cooling) SN# 0M615000 & Up | |||||
| 20 | 864306A2 | RISER EXTENSION KIT, 3 Inch Cold Riser | 1 | (Closed Cooling) SN# 0M614999 & Below | |||||
| 20 | 864929A2 | RISER EXTENSION KIT, 3 Inch Warm Riser | 1 | (Closed Cooling) SN# 0M615000 & Up | |||||
| 21 | 27-864850A02 | 676-9-61429 | GASKET, Restrictor | 2 | 27-864850A1 | (Standard Cooling) | |||
| 21 | 27-864549A02 | GASKET, Block Off | 2 | 27-864549A1 | (Closed Cooling) | ||||
| 21 | 27-864547A02 | 676-9-61430 | GASKET, Full Flow | 2 | 27-864547A1 | (With Risers Only) | |||
| 22 | 22-428611 | 602-98-102-57 | FITTING, Pipe - Brass (.750-14) | 2 | |||||
| 23 | 10-864378 | SCREW, (.250-20 x .375) Torx | 1 | ||||||
| 24 | 10-864531 | BOLT, (.375-16 x 9.00) | 8 | ||||||
| 25 | 863714T01 | BRACKET | 1 | 863714T | |||||
| 26 | WASHER | 8 | |||||||
| 27 | 10-860008 | SCREW, (.250-20 x .625) Torx | 1 | ||||||
| 28 | 864908A07 | RISER EXTENSION KIT, 6 Inch Cold Riser | 1 | 864307A3 | (Standard Cooling) SN# 0M614999 & Below | ||||
| 28 | 864908A1 | RISER EXTENSION KIT, 6 Inch Warm Riser | 1 | (Standard Cooling) SN# 0M615000 & Up | |||||
| 28 | 864908A06 | RISER EXTENSION KIT, 6 Inch Cold Riser | 1 | 864307A2 | (Closed Cooling) SN# 0M614999 & Below | ||||
| 28 | 864908A2 | RISER EXTENSION KIT, 6 Inch Warm Riser | 1 | (Closed Cooling) SN# 0M615000 & Up | |||||
| 29 | 10-43749 | 700-22381 | SCREW, (.375-16 x 5.750) | 8 | |||||
| 30 | 27-864850A02 | 676-9-61429 | GASKET, Restrictor | 2 | 27-864850A1 | (Standard Cooling) | |||
| 30 | 27-864549A02 | GASKET, Block Off | 2 | 27-864549A1 | (Closed Cooling) | ||||
| 30 | 27-864547A02 | 676-9-61430 | GASKET, Full Flow | 2 | 27-864547A1 | (With Risers Only) | |||
| 31 | 22-428611 | 602-98-102-57 | FITTING, Pipe - Brass (.750-14) | 2 | |||||
| 32 | WASHER | 8 | |||||||
| 33 | 863715T01 | BRACKET | 2 | ||||||
| 34 | 10-865982005 | SCREW, (.375-16 x 1.00) | 8 | 10-12244 | |||||
| 35 | 10-860008 | SCREW, (.250-20 x .625) Torx | 6 | ||||||
| 36 | 10-864378 | SCREW, (.250-20 x .375) Torx | 1 | ||||||
| 37 | 22-863804 | FITTING, (.750-14) | 2 | No longer made, limited availability | |||||
| 38 | 22-37372 | PLUG, Pipe (.500) | 2 | (Early Models) | |||||
| 38 | 22-12524 | PLUG, (.375-18 x .475) Brass | 2 | (Late Models) | |||||
| 39 | 22-16604 | FITTING, Straight (.125-27) | 1 | ||||||
| - | 27-861246A05 | 700-39016 | GASKET SET, Engine Overhaul | 1 | 27-861246A98 |
