350 Mag MPI Alpha-Bravo - Serial 1A611928 Thru 1A623184 - Standard Cooling System - ALPHA, Single and 3 Point Drain

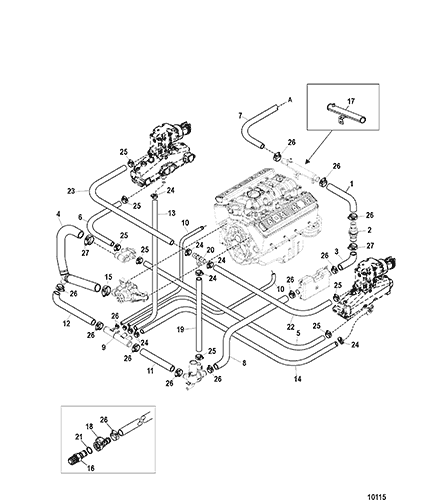

Section Drawing: (Hover or click to view larger)

Return To Parts Finder

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 32-863489



HOSE, Power Steering Cooler to Check Valve 1

2 21-864206A1



CHECK VALVE ASSEMBLY 1

3 32-863623



HOSE, Check Valve to Fuel Cooler 1

4 32-863456A1



HOSE ASSEMBLY, Thermostat Housing to Circulating Pump 1

5 32-863458



HOSE, Thermostat Housing to Port Manifold 1

6 32-863459



HOSE, Thermostat Housing to Starboard Manifold 1

7 32-807661
676-9-44077

HOSE, Transom Assembly to Power Steering Cooler 1
(Alpha)
8 32-863670



HOSE, Fuel Cooler to Water Distribution Housing 1

9 22-864621A1



FITTING ASSEMBLY, Lower Distribution 1

10 32-8M0062590



HOSE, Cylinder Block Drain to Distribution Fitting 2 32-8623175 (Port-23 Inches) (Starboard 17 Inches)
11 32-863490



HOSE, Water Drain Accumulator to Distribution Fitting 1

12 32-863491



HOSE, Distribution Fitting to "Y" Fitting 1

13 32-4285069



HOSE, (44.00 Inches Bulk), Starboard Manifold to Distribution Fitting 1
(Cut to 22 Inch Length)
14 32-4285069



HOSE, (44.00 Inches Bulk), Port Manifold to Distribution Fitting 1
(Cut to 31 Inch Length)
15 54-815504232



CLAMP, Worm Gear (2.50 Diameter), Hose AR

16 22-862603



FITTING, Male Quick Connector, Threaded 2

17 863841T



TUBE, Water, Brass 1
(Compact Hydraulic Steering)
18 22-862225



FITTING, Pushlock 4

19 32-863465



HOSE, Drain Accumulator to Tee Fitting 1

20 22-8M0065823



FITTING ASSEMBLY 1 22-863464A1 (Alpha Only)
NS 23-864327



BUSHING, Orifice 1
(Alpha Only)
NS 25-864353



O-RING 1
(Alpha Only)
21 25-627021



O-RING, (.301 x .070) 2

22 32-864560



HOSE, Tee Fitting to Port Elbow 1
(Non Riser and 3 Inch Warm Riser)
22 32-864965



HOSE, Tee Fitting to Port Elbow 1
(6 Inch Warm Riser)
23 32-864561



HOSE, Tee Fitting to Starboard Elbow 1
(Non Riser and 3 Inch Warm Riser
23 32-864966



HOSE, Tee Fitting to Starboard Elbow 1
(6 Inch Warm Riser)
24 54-815504212



CLAMP, Worm Gear, Hose 2

25 54-815504216



CLAMP, Worm Gear (1.56 Diameter), Hose AR
26 54-815504222



CLAMP, Worm Gear (1.98 DIameter), Hose 2
27 54-815504228



CLAMP, Worm Gear, Hose 1
