350 Mag MPI Alpha-Bravo - Serial 1A611928 Thru 1A623184 - Standard Cooling System - BRAVO, 7 Point Drain

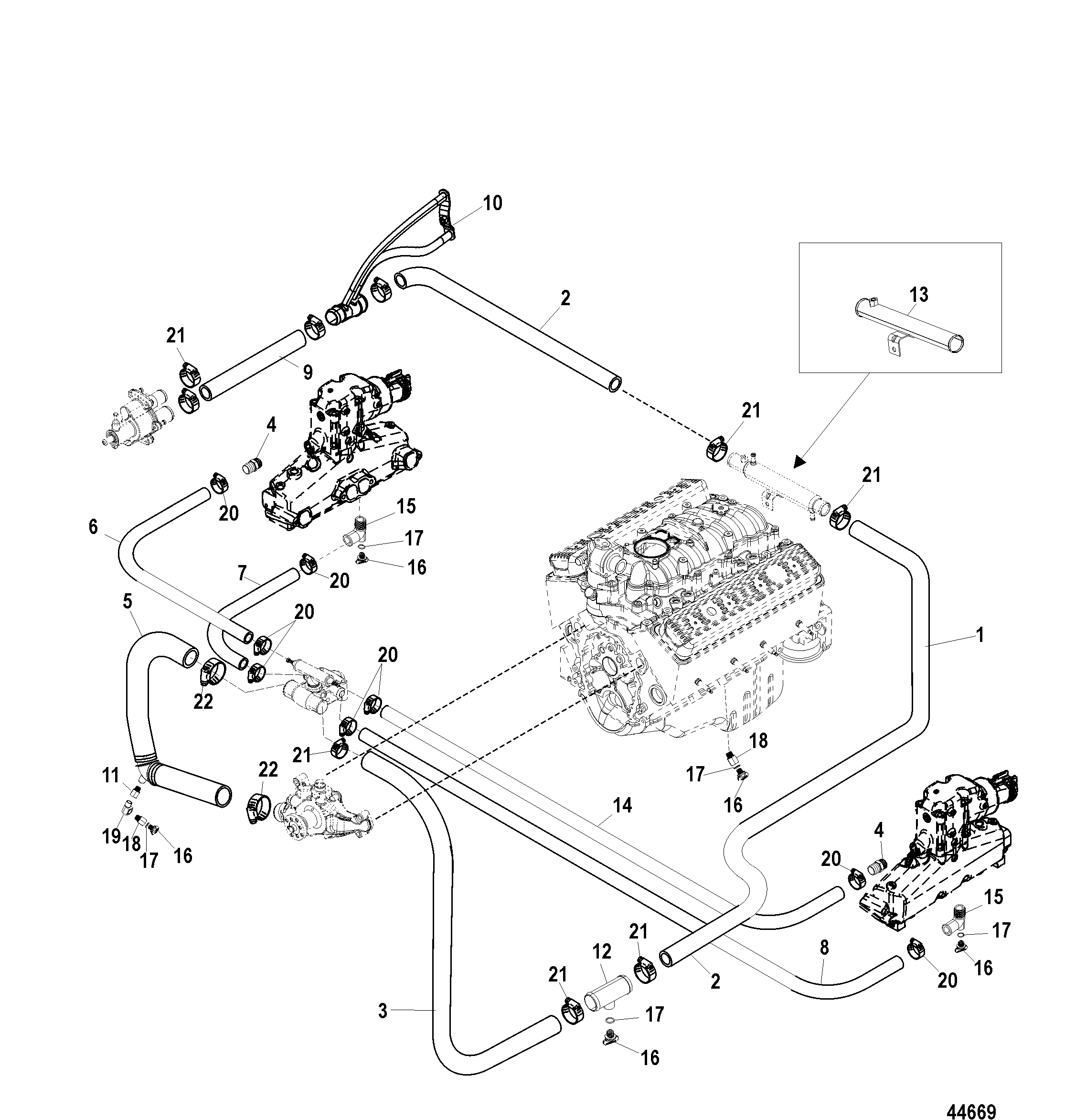

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- AXIUS Steering Components, Hydraulic Pump
- AXIUS Steering Components, Oil Cooler and Bracket, Gen I
- AXIUS Steering, Fluid Filter (High Pressure)
- AXIUS Steering, High Pressure Filter Conversion Kit, Gen I
- AXIUS Steering, Hoses (High Pressure Filter)
- AXIUS Steering, Reservoir and Front Lifting Eye, Gen I
- Closed Cooling System (BRAVO) Sea Pump Hoses
- Closed Cooling System (BRAVO) Sea Pump Hoses (SeaCore)
- Closed Cooling System, ALPHA
- Closed Cooling System, AXIUS
- Closed Cooling System, BRAVO
- Closed Cooling System, Heat Exchanger
- Cool Fuel System, Bravo
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing and Rear Main Seal
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components, Digital
- Electrical Components, Mechanical
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust Risers
- Exhaust System Components
- Front Cover and Circulating Pump
- Fuel Filter, Alpha
- Fuel Module Components -Bravo
- Fuel Supply Module, Alpha
- Gasket Set Components (27- 75611A03), Cylinder Head
- Gasket Set Components (27-861246A05), Engine Overhaul
- Gear Lube Monitor
- Intake Manifold and Fuel Rail
- Jackshaft Main Kit
- Mercathode Components
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter Assembly
- Sea Water Pump Assembly
- Shift Bracket, Alpha
- Shift Bracket, Bravo
- Shift Bracket, Digital Throttle Shift - Axius
- Standard Cooling System - ALPHA, 7 Point Drain
- Standard Cooling System - ALPHA, Single and 3 Point Drain
- Standard Cooling System - AXIUS
- Standard Cooling System - BRAVO, 7 Point Drain
- Standard Cooling System - BRAVO, Single and 3 Point Drain
- Standard Cooling System, Sea Pump Hoses
- Starter Motor
- Steering Components
- Thermostat and Housing, 7 Point Drain
- Thermostat and Housing, Single and 3 Point Drain
- Throttle Body, Digital Throttle and Shift
- Throttle Body, Mechanical
- Water Distribution Housing
- Water Drain, Air Manifold and Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | SEI # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 32-865674 | HOSE, Power Steering Cooler to Drain Fitting | 1 | ||||||
| 2 | 32-865235 | HOSE, Water Orifice to Power Steering Cooler | 1 | ||||||
| 3 | 32-865409 | HOSE, Drain Fitting to Thermostat Housing | 1 | ||||||
| 4 | 22-866725 | FITTING, Straight (.750-14), Barb | 1 | ||||||
| 5 | 32-864703A1 | HOSE, Circulating Pump to Drain Elbow | 1 | ||||||
| 6 | 32-864979 | HOSE, Starboard Exhaust Elbow to Thermostat Housing | 1 | ||||||
| 7 | 32-863459 | HOSE, Thermostat Housing to Starboard Manifold | 1 | ||||||
| 8 | 32-863458 | HOSE, Thermostat Housing to Port Manifold | 1 | ||||||
| 9 | 32-8M2021656 | HOSE, Sea Water Pump to Water Orifice | 1 | 32-865337 | |||||
| 10 | NA | NOT AVAILABLE, Orifice Meter Assembly | 1 | (See Cool Fuel System -Bravo page for service part number | |||||
| 11 | 22-866729 | FITTING, (.250 x .250 NPTF) | 1 | ||||||
| 12 | 861505 | FITTING, Drain Tee | 1 | ||||||
| 13 | 863841T | TUBE, Water, Brass | 1 | Compact Hydralic Steering | |||||
| 14 | 32-864435 | HOSE, Port Exhaust Elbow to Thermostat Housing | 1 | ||||||
| 15 | 22-862210A01 | 676-9-41206 | 700-13991 | ELBOW KIT, Drain | 2 | ||||
| 16 | 22-806608A02 | PLUG ASSEMBLY, (.500-13) Blue | 9 | ||||||
| 17 | 25-26802 | 602-95-260-03 | SEAL | 9 | 25-8M2000926 | ||||
| 18 | 22-860088 | BUSHING | 4 | ||||||
| 19 | 22-46982 | FITTING, (90 Degree) | 1 | ||||||
| 20 | 54-815504216 | CLAMP, Worm Gear (1.56 Diameter) | 4 | ||||||
| 21 | 54-815504228 | CLAMP, Worm Gear | 11 | ||||||
| 22 | 54-815504232 | CLAMP, Worm Gear | 4 | 54-8M2001490 |
