350 Mag Alpha EFI(Gen +) GM V-8 1997 - Serial 0K001509 and Up - Power Steering Components

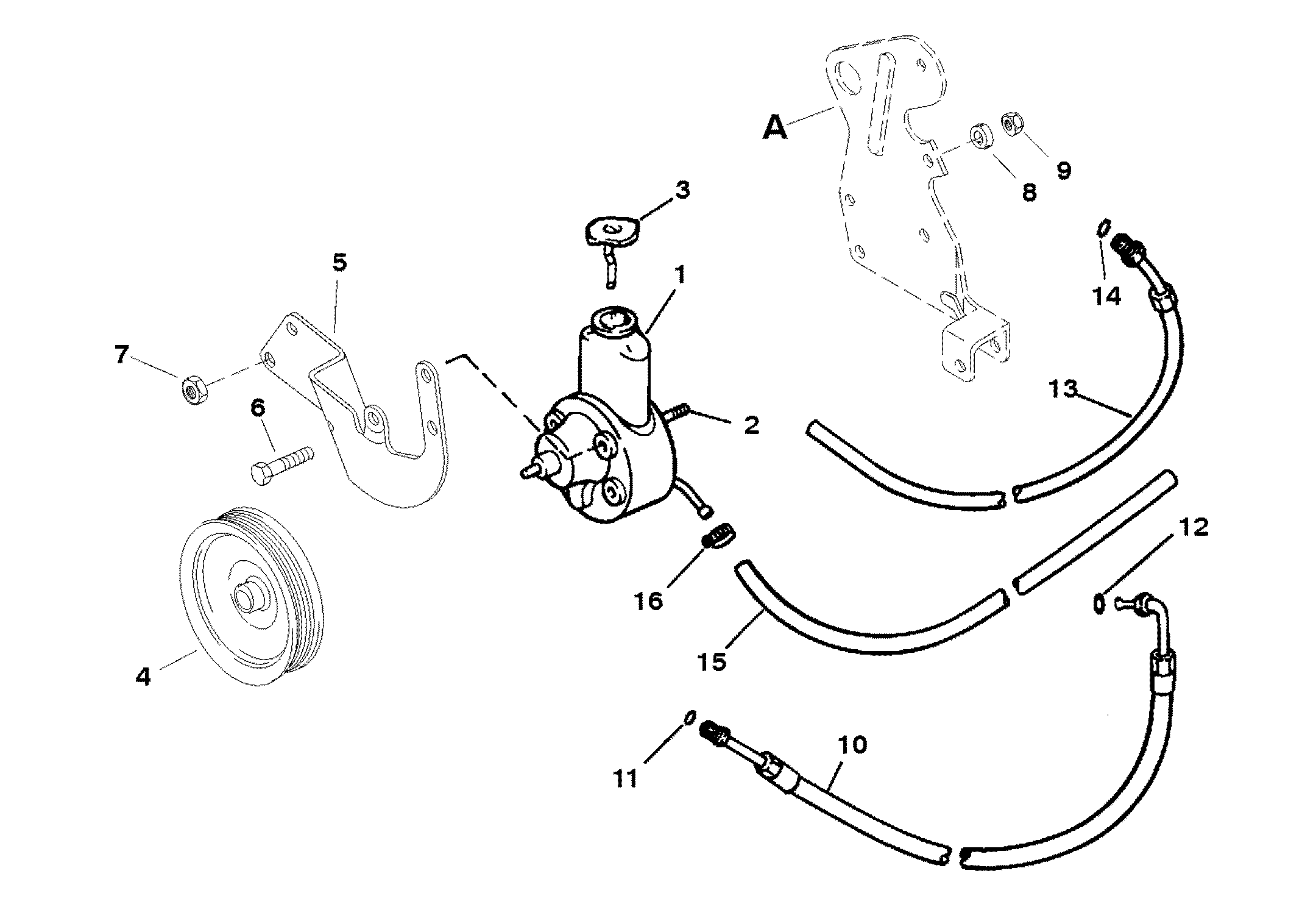

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exh. Manifold and Stainless Steel Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly (Use With Bravo Engines)
- Senders And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Alpha Engines)
- Standard Cooling System (Bravo Engines)
- Starter Motor
- Starter Motor And Alternator
- Throttle Body
- Throttle Linkage
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 16792A39 | PUMP ASSEMBLY-POWER STEERING | 1 | 16792A33 | Pump DOES NOT come with pulley | ||||
| 2 | 16-41877 | STUD | 2 | ||||||
| 3 | 36-95805 | CAP | 1 | ||||||
| 4 | 8077281 | PULLEY | 1 | 807728T | This Part is No Longer Available | ||||
| 5 | 807751T01 | BRACE | 1 | 807751T | |||||
| 6 | 10-40001188 | SCREW (M10 X 20) | 3 | ||||||
| 7 | 11-32219 | NUT (3/8-16) | 3 | ||||||
| 8 | 23-905201 | SPACER | 1 | ||||||
| 9 | 11-90517 | NUT | 2 | ||||||
| 10 | 32-80622216 | PRESSURE HOSE | 1 | (FITTINGS ON BOTH ENDS) | |||||
| 11 | 25-89879 | O-RING | 1 | ||||||
| 12 | 25-806232 | O-RING | 1 | ||||||
| 13 | 32-80622142 | RETURN HOSE | 1 | (FITTING ON ONE END) | |||||
| 14 | 25-89879 | O-RING | 1 | ||||||
| 15 | 32-8M0062341 | HOSE-PUMP TO OIL COOLER | 1 | 32-5251914 | |||||
| 16 | 54-815504105 | CLAMP | 3 |
