350 Mag Alpha EFI(Gen +) GM V-8 1997 - Serial 0K001509 and Up - Senders And Sensors

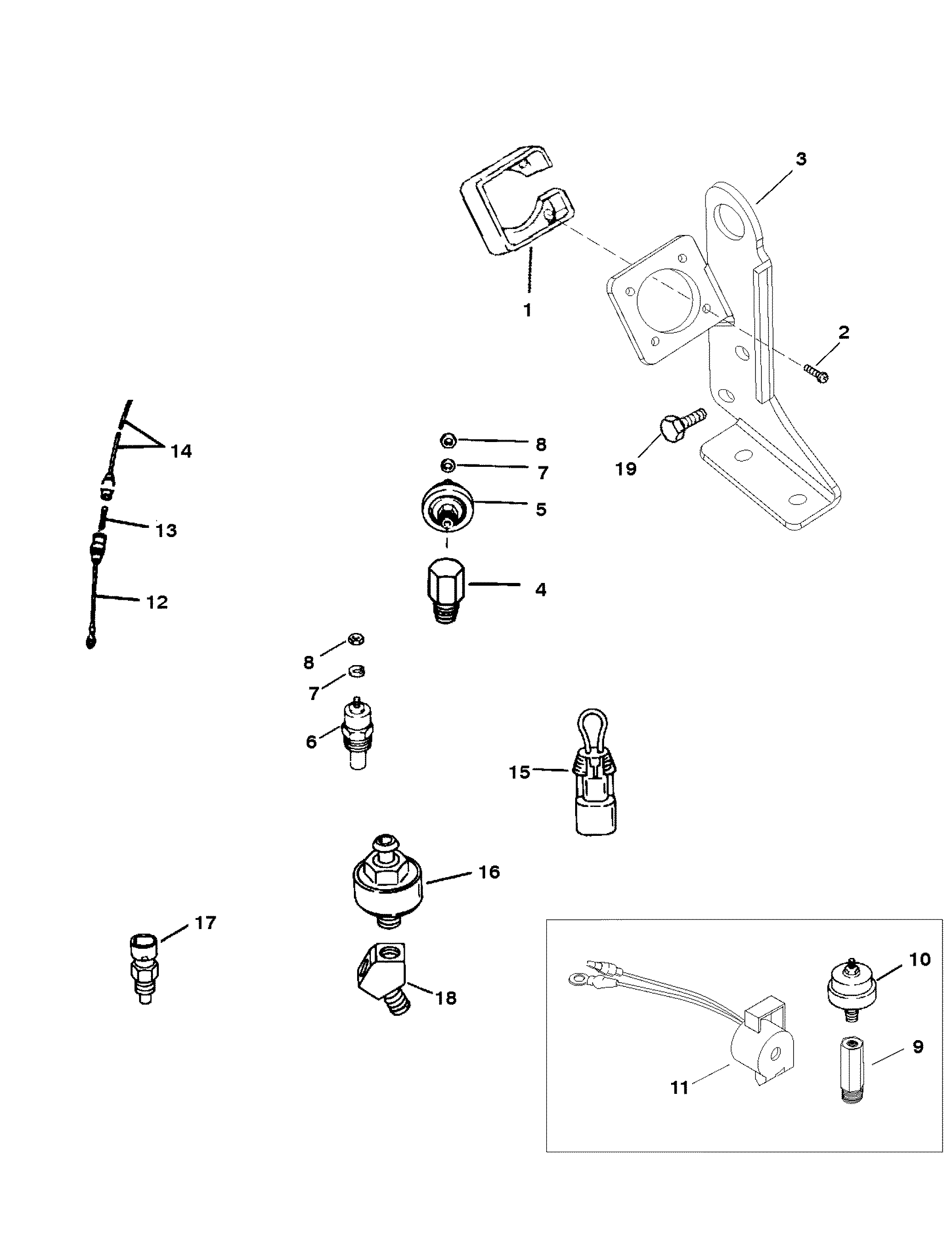

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exh. Manifold and Stainless Steel Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly (Use With Bravo Engines)
- Senders And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Alpha Engines)
- Standard Cooling System (Bravo Engines)
- Starter Motor
- Starter Motor And Alternator
- Throttle Body
- Throttle Linkage
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 26079A2 | PLATE KIT | 1 | ||||||
| 2 | 10-15001 | SCREW (#8-16 X 7/8 IN.) | 4 | ||||||
| 3 | 806816T | BRACKET/LIFTING EYE | 1 | HARNESS MOUNTING (REAR) | |||||
| 4 | 22-8053281 | ELBOW-90 DEG. (1/8 IN.) | 1 | ||||||
| 5 | 8M0068784 | SENDER-OIL PRESSURE | 1 | 815425 | |||||
| 5 | 37293T | SENDER-OIL PRESSURE (DUAL) | OPT. | 37293 | 4 | ||||
| 6 | 806490T | SENDER-WATER TEMPERATURE | 1 | 97257A1 | |||||
| 6 | 49734 | SENDER-WATER TEMPERATURE (DUAL) | OPT. | 49734A1 | 4 | ||||
| 7 | 13-26996 | LOCKWASHER (#10) | 2 | ||||||
| 8 | 11-68219 | NUT (#10-32) | 2 | ||||||
| 9 | 22-805059 | BUSHING-REDUCER | 1 | AUDIO WARNING SYSTEM | |||||
| 10 | 87-805605A1 | SWITCH-OIL PRESSURE | 1 | AUDIO WARNING SYSTEM | |||||
| 11 | 816492A6 | ALARM KIT | 1 | AUDIO WARNING SYSTEM | |||||
| 12 | 84-95084A9 | CABLE ASSEMBLY | 1 | BRAVO ENGINES | |||||
| 13 | 88-79091 | FUSE (20 AMP) | 1 | BRAVO ENGINES | |||||
| 14 | 84-95084A10 | CABLE ASSEMBLY | 1 | BRAVO ENGINES | |||||
| 15 | 805592A1 | CONNECTOR | 1 | BRAVO ENGINES | |||||
| 16 | 806612T | SENSOR-KNOCK | 1 | ||||||
| 17 | 805218T | 676-9-42402 | SENSOR-COOLANT TEMPERATURE | 1 | |||||
| 18 | 22-8067051 | FITTING-Y | 1 | ||||||
| 19 | 10-98261 | SCREW (3/8-16 X 3/4 IN.) | 2 |
