350 Mag Bravo MPI(Gen +) GM V-8 1997 - Serial 0K001501 and Up - Distributor And Ignition Components

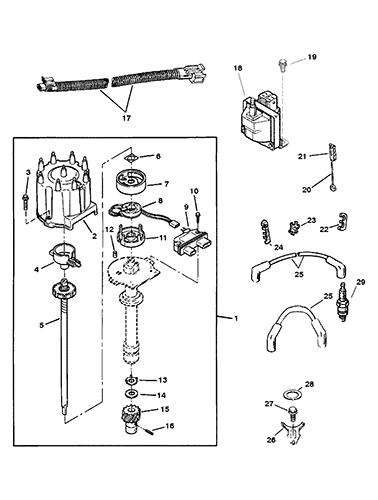

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exh. Manifold and Stainless Steel Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Intake Manifold And Fuel Rails
- Intake Plenum And Flame Arrestor
- Mercathode Components
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket
- Standard Cooling System
- Starter Motor
- Starter Motor And Alternator
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 805222A1 | DISTRIBUTOR ASSEMBLY | 1 | ||||||
| 2 | 808483T3 | CAP | 1 | 808483 | |||||
| 3 | 10-808491 | SCREW | 2 | This Part is No Longer Available | |||||
| 4 | 8M6001253 | ROTOR | 1 | 808484 | |||||
| 5 | 808485T | SHAFT AND MAGNET | 1 | 808485 | This Part is No Longer Available | ||||
| 6 | 808487 | RETAINER | 1 | This Part is No Longer Available | |||||
| 7 | 808486 | SHIELD | 1 | This Part is No Longer Available | |||||
| 8 | 811639T | COIL | 1 | 811639 | |||||
| 9 | 811637001 | MODULE | 1 | 811637 | |||||
| 10 | 10-811638 | SCREW | 2 | This Part is No Longer Available | |||||
| 11 | 811641 | POLE PIECE | 1 | ||||||
| 12 | 17-808488 | PIN | 1 | This Part is No Longer Available | |||||
| 13 | 12-46350 | WASHER | 1 | This Part is No Longer Available | |||||
| 14 | 12-808489 | WASHER | 1 | ||||||
| 15 | 43-808490 | DRIVE GEAR | 1 | ||||||
| 16 | 17-34109 | PIN | 1 | This Part is No Longer Available | |||||
| 17 | 84-817376T01 | HARNESS-DISTRIBUTOR MODULE TO IGNITION COIL | 1 | 84-817376T | |||||
| 18 | 898253T27 | COIL-IGNITION | 1 | 817378T | |||||
| 19 | 10-805189 | SCREW (3/8-16 X 3/4 IN.) | 2 | ||||||
| 20 | 16-90096A1 | STUD ASSEMBLY | 2 | ||||||
| 21 | 54-72821 | RETAINER | 2 | ||||||
| 22 | 54676 | RETAINER (2 WIRE) | 2 | ||||||
| 23 | 32783 | RETAINER (3 WIRE) | 2 | ||||||
| 24 | 32784 | RETAINER (4 WIRE) | 2 | ||||||
| 25 | 84-816608Q71 | CABLE KIT-IGNITION (SPARK PLUGS & COIL) | 1 | 84-816608A71 | |||||
| 26 | 52185 | CLAMP | 1 | ||||||
| 27 | 10-805559 | SCREW (3/8-16 X 3/4 IN.) | 1 | ||||||
| 28 | 27-344863 | GASKET-DISTRIBUTOR | 1 | 3 | |||||
| 29 | 33-816336Q | SPARK PLUG | 8 | 33-816336 | |||||
| - | 27-806988A96 | GASKET SET | 1 | This Part is No Longer Available |
