350 Mag Bravo MPI(Gen +) GM V-8 1997 - Serial 0K001501 and Up - Shift Bracket

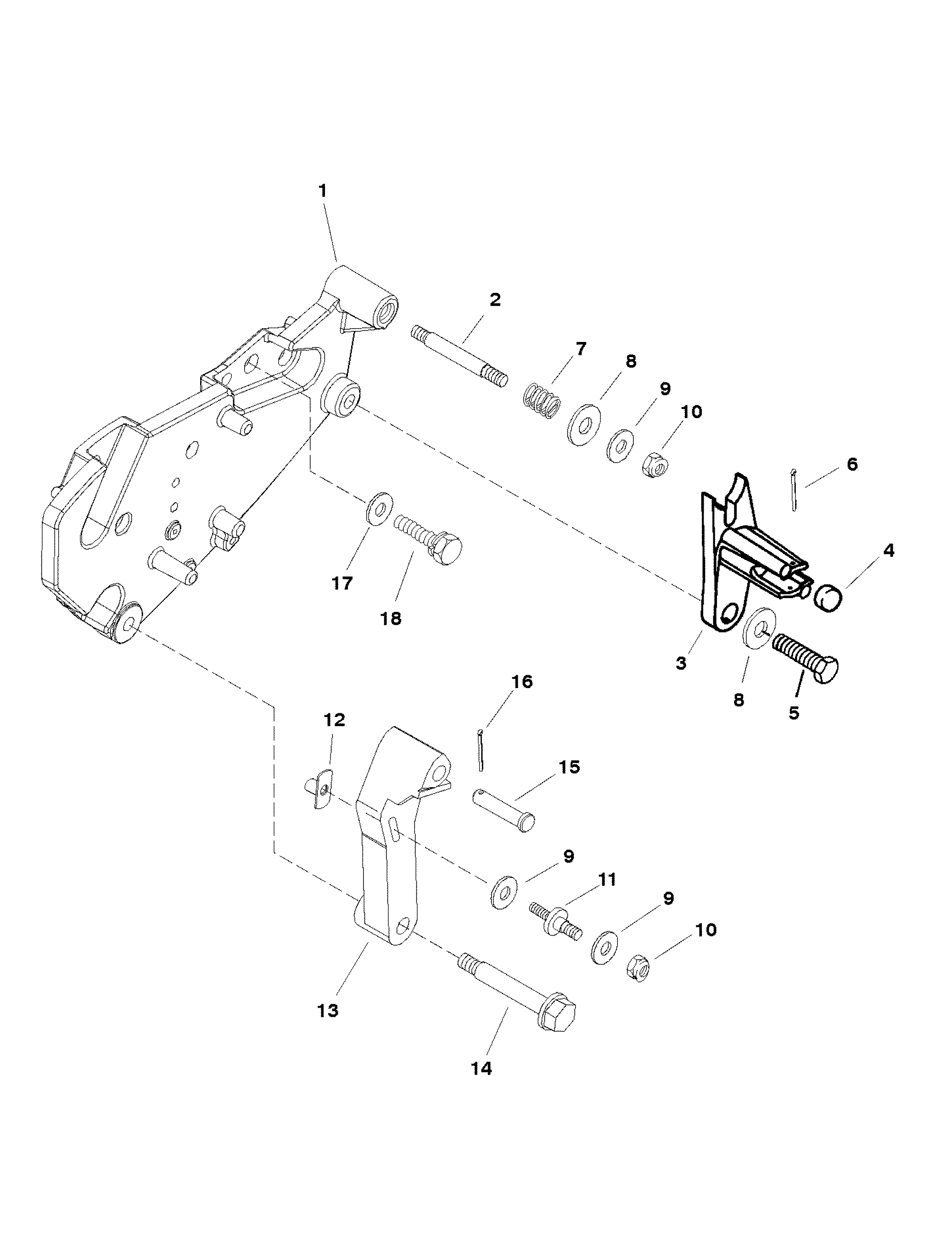

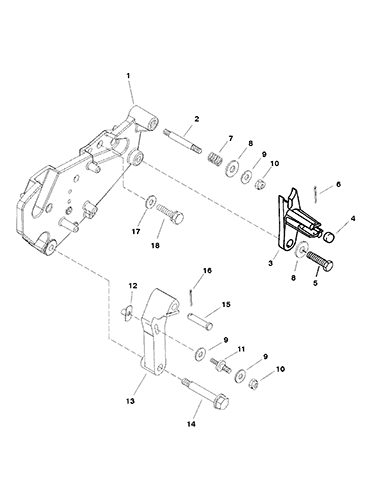

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exh. Manifold and Stainless Steel Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Intake Manifold And Fuel Rails
- Intake Plenum And Flame Arrestor
- Mercathode Components
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket
- Standard Cooling System
- Starter Motor
- Starter Motor And Alternator
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 807962A15 | BRACKET ASSEMBLY-SHIFT | 1 | 807962A3 | |||||
| 2 | 16-865154A02 | STUD (1/4 X 2-1/8 IN.) | 1 | 16-987981 | |||||
| 3 | 865434A02 | RETAINER | 1 | 123811 | |||||
| 4 | 23-98828 | SPACER | 1 | ||||||
| 5 | 10-53167 | SCREW (5/16-18 X 7/8 IN.) | 1 | ||||||
| 6 | 18-328571 | PIN-COTTER | 1 | 18-32857 | |||||
| 7 | 24-98880 | SPRING | 1 | ||||||
| 8 | 12-56720 | WASHER | 2 | ||||||
| 9 | 12-35462 | WASHER | 4 | ||||||
| 10 | 11-8267119 | NUT (1/4-28) | 2 | 11-13438 | |||||
| 11 | 16-96112 | STUD | 1 | ||||||
| 12 | 11-63341 | NUT-TEE | 1 | ||||||
| 13 | 863911A12 | LEVER-SHIFT | 1 | 138981 | |||||
| 14 | 10-13743 | SCREW-SHOULDER (5/16-18 X 1-7/8 IN.) | 1 | ||||||
| 15 | 17-68402 | PIN-CLEVIS | 1 | ||||||
| 16 | 18-210711 | PIN-COTTER | 1 | 18-21071 | |||||
| 17 | 12-35462 | WASHER | 2 | ||||||
| 18 | 10-657461 | SCREW & LOCKWASHER (1/4-20 X 5/8 IN.) | 2 |
