5.0L (2 BBL) GM 305 V-8 1988-1995 - Serial 0B774445 Thru 0F600999 - Oil Pan And Oil Pump

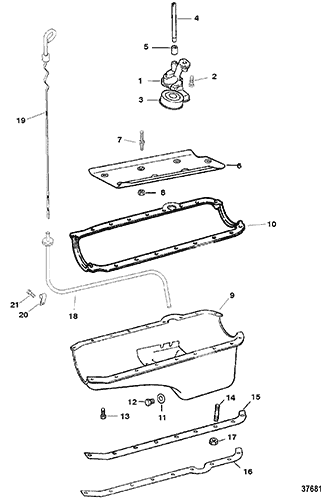

Section Drawing: (Hover or click to view larger)

Return To Parts Finder

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 17617         PUMP, Oil (W/O PICK-UP TUBE) 1

2 10-17346         SCREW 1

3 35354         SCREEN ASSEMBLY 1   This Part is No Longer Available
4 36184         SHAFT 1

5 23-36183         RETAINER 1

6 986021         BAFFLE 1 98602
7 16-54790         STUD 5

8 11-37500         NUT 5

9 809910         PAN, Oil 1 14259
10 27-138651   676-9-61504     GASKET 1 27-13865 4
11 27-8M0077608         GASKET, Drain 1 27-49955 4
12 10-49956         SCREW, Drain 1

13 10-14070         SCREW, (.250-20 x .625) 14

14 16-11989         STUD, (.312-18 x 1.6718) 4

15 14257         REINFORCEMENT (PORT) 1

16 14256         REINFORCEMENT (STARBOARD) 1

17 11-11971         NUT, (.312-18) 4

18 15296A2         TUBE 1

19 861942T7         DIPSTICK 1 15297T
20 54-805625         CLIP, Dipstick Tube 1
21 10-35366         SCREW, (.250-20 x .563) 1
